Travelcontrollevers

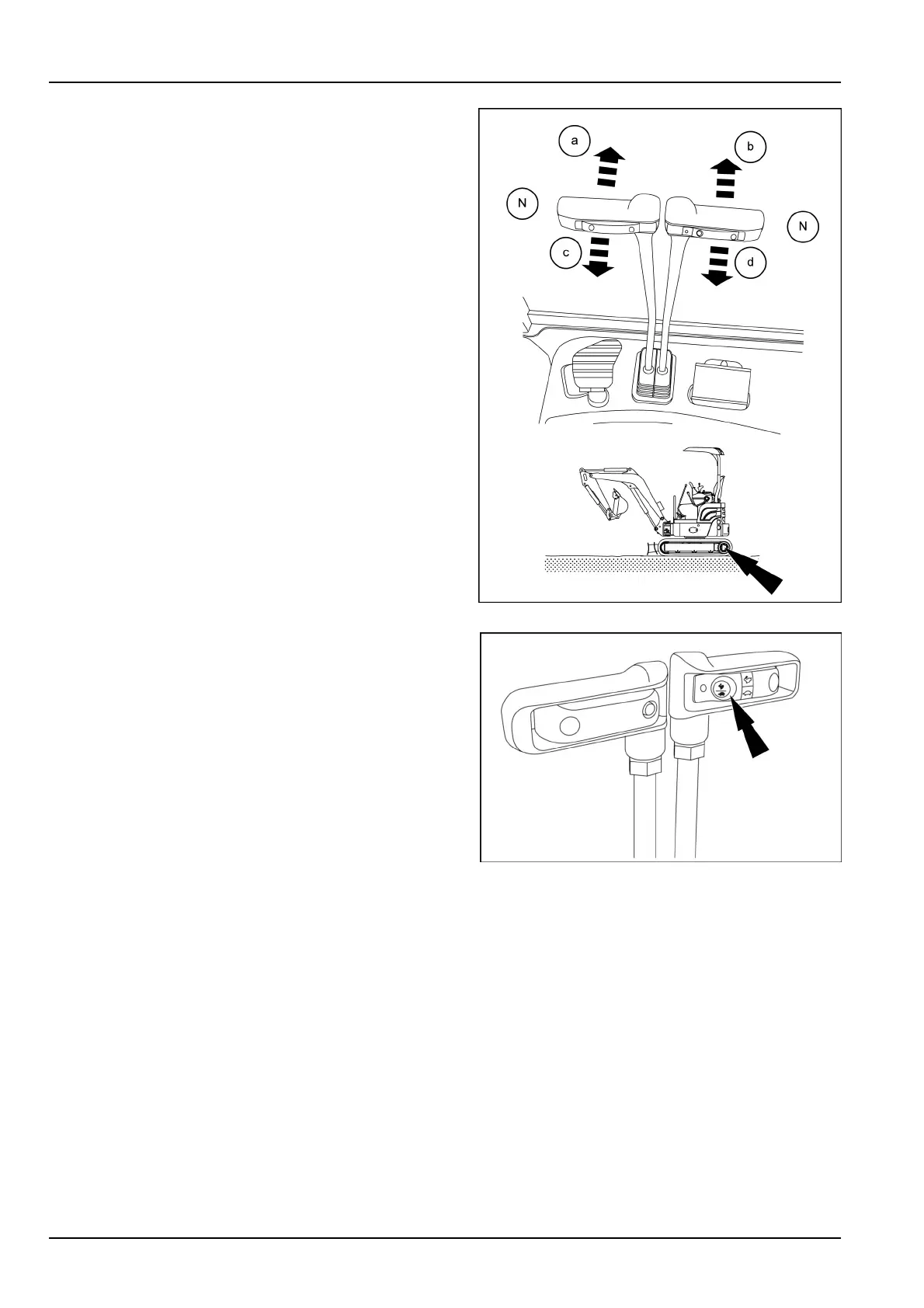

Thetravelcontrolleversareusedtomovethemachine.
(N):neutral
(a)+(b):machinemovesforward.
(c)+(d):machinemovesbackward.
(b)+(c):oppositesimultaneousrotationofthetracks
withconsequentcounterclockwiserotationofthemachine
arounditscenteraxis.
(a)+(d):oppositesimultaneousrotationofthetrackswith
consequentclockwiserotationofthemachinearoundits
centeraxis.
(a),(b),(c),(d):positionstomoveonetrackonly.Con-
sequentlythemachinesteerspivotingonthestationary
track.
SMIL17MEX2576BB13
Travelmodeselectorswitch
Thetravelmodeselectorswitchallowstosettwo
differenttravelspeedranges:
•
Lowspeedrange:0–2.2km/h(0–1.4mph)
•
Highspeedrange:0–4.3km/h(0–2.7mph)
