3-CONTROLSANDINSTRUMENTS

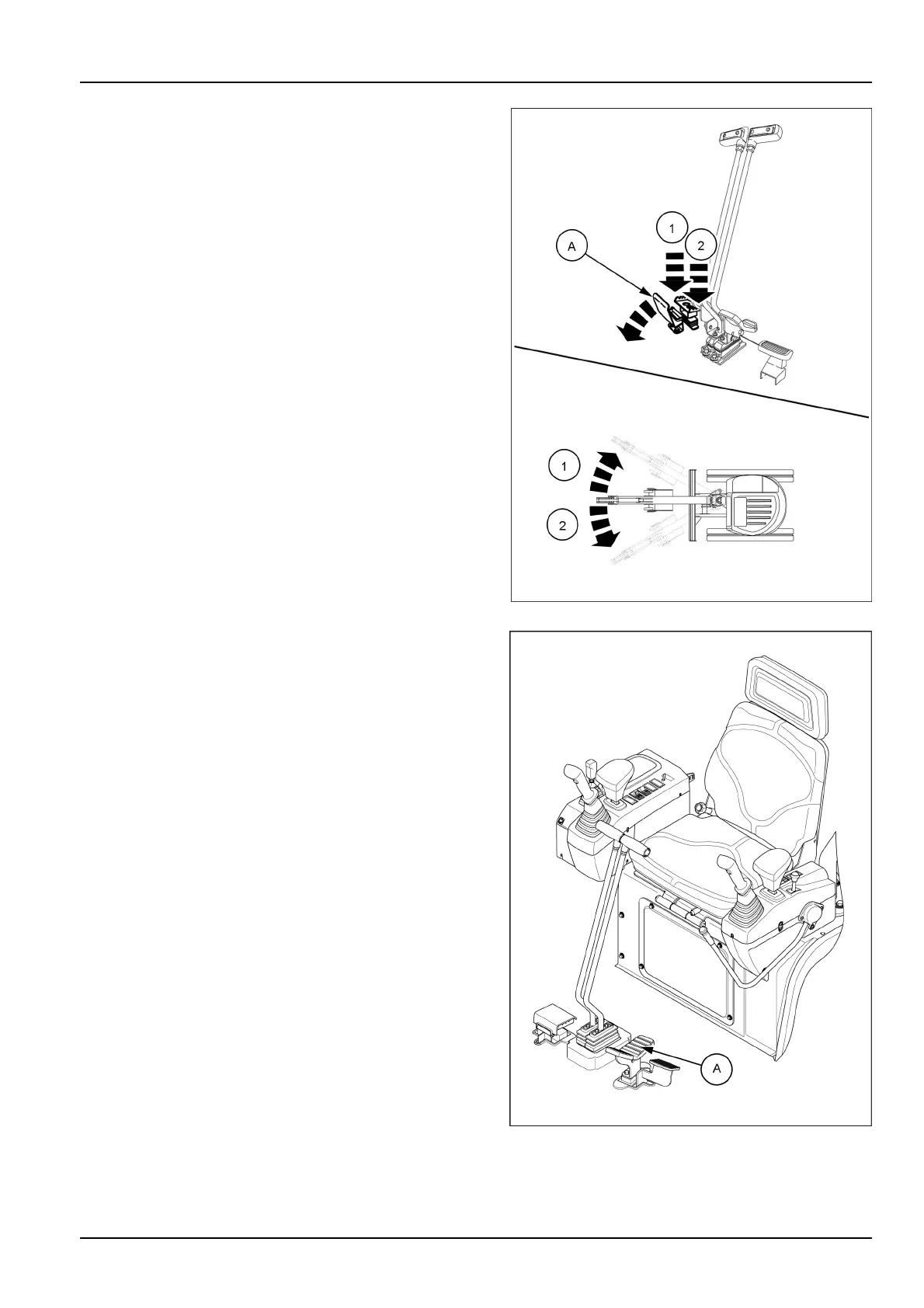

Boomswingpedal
Thispedalisusedtoswingtheboomtotheright-hand
andleft-handdirection.
Movethelockcover(A)tounlockpositionbyfoot.
Pressthepedaltoright-handside(1)toswingtheboom
totheright-handdirection.
Pressthepedaltoleft-handside(2)toswingtheboomto
theleft-handdirection.
NOTICE:makeparticularattentionwhenswingtheboom
totheleft-handside:theattachmentmaycollidewiththe
canopy.
SMIL19MEX0754BA15
Auxiliarypedal(ifequipped)
Theauxiliarypedal(A)allowstocontrolthemainauxiliary
hydrauliccircuit.Thiscircuitisintendedtooperateattach-
mentslikehydraulicbreakersorhydraulicclamshells.
SMIL16MEX2314BB16
