3-CONTROLSANDINSTRUMENTS

Right-handcontrollever

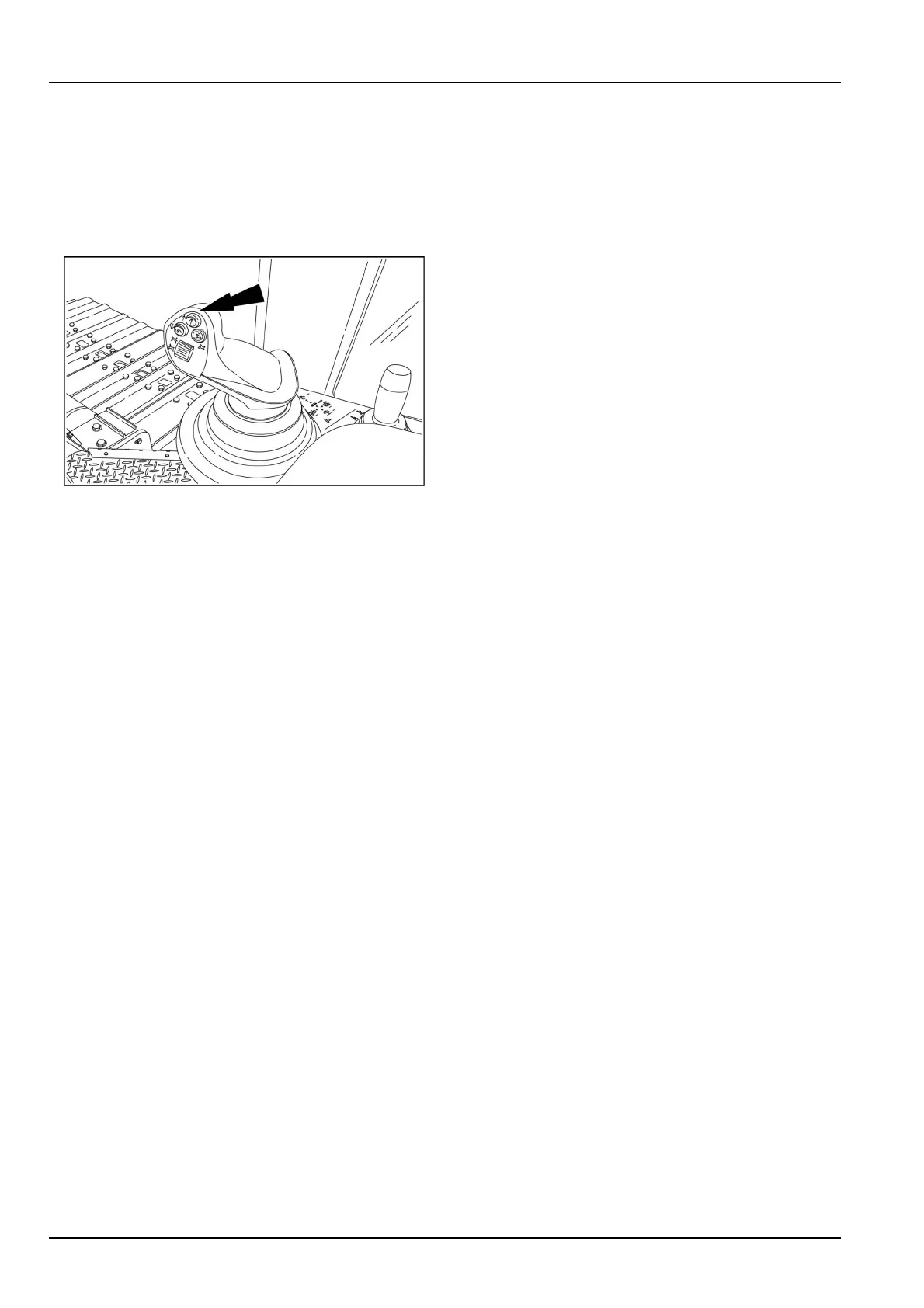

Joystickmulti-screencontrol

•

Themult-displayscreencanalsobeaccessedwiththe

righthandjoystick.Thiswillallowtheoperatortoac-

cessinfoscreensandtripscreenswithoutremovinghis

handsfromthejoysticks.

RAPH12DOZ0082AA1

3-54
