Case 2050M - Bulldozer Blade Adjustment (if Equipped)

6-WORKINGOPERATIONS
Bulldozerbladeadjustment(ifequipped)
Bulldozerblade—Tiltcentering

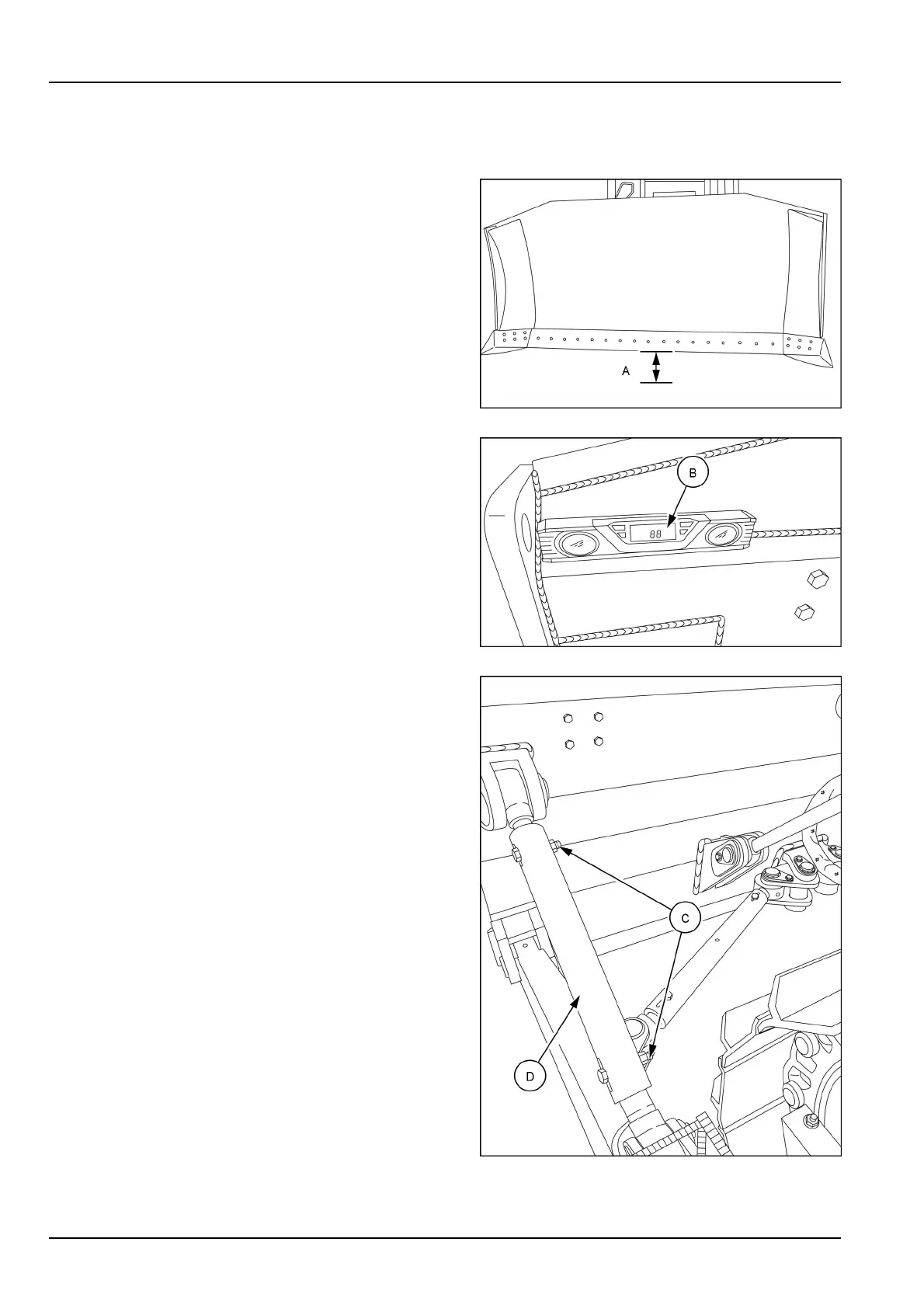

1.Setthebulldozerbladeonalevelsurface.Makesure
thebladeisevenwhenitrestsontheground.
2.Raisethebladeoffofthegroundhighenoughsothat
thebladedoesnothitthegroundwhenfullytiltedright
orleft.(A)isroughly457.2mm(18.0in)offtheground.
RAIL14DOZ0525AA1
3.Placeadigitalanglegauge(B)onthetopoftheblade,
andzerooutthegauge.
NOTE:Thegaugemustreadintenths,i.e.in0.1°incre-
ments.
RAIL14DOZ0526AA2
4.Removeandretainthebolts(C)ontheleft-handpitch
link(D)toallowforadjustmentofthepitchangle.
RAIL14DOZ0529AA3
6-4
