Case 2050M - Ripper

To Next Page

To Previous Page

6-WORKINGOPERATIONS

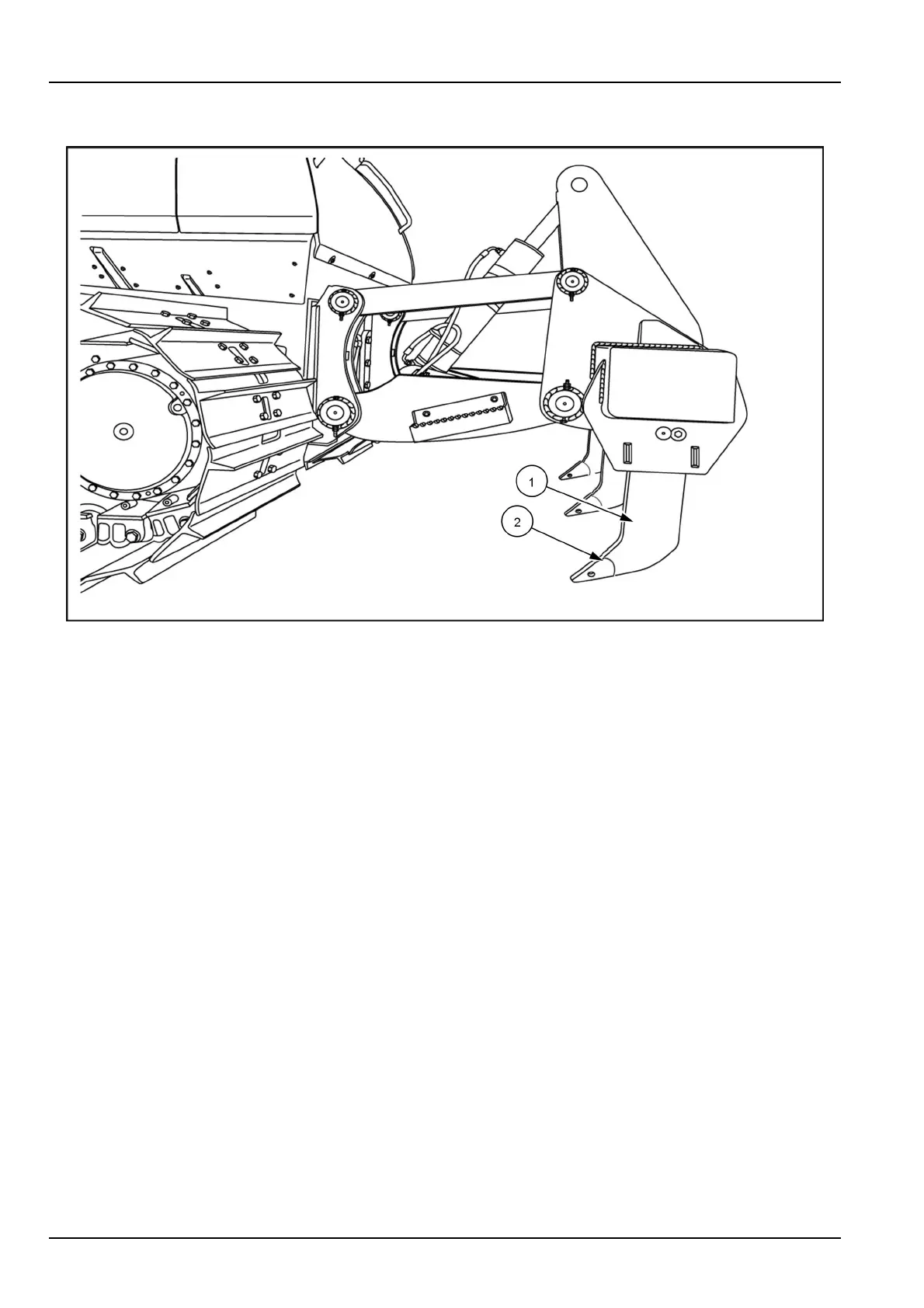

Ripper

RAIL13DOZ1265FA1

1.RipperShank

2.Rippertooth

Therearripperdepthcanbeadjusted.Usetheappropriatedepthfortheworkingconditions.

6-10
