3-CONTROLSANDINSTRUMENTS

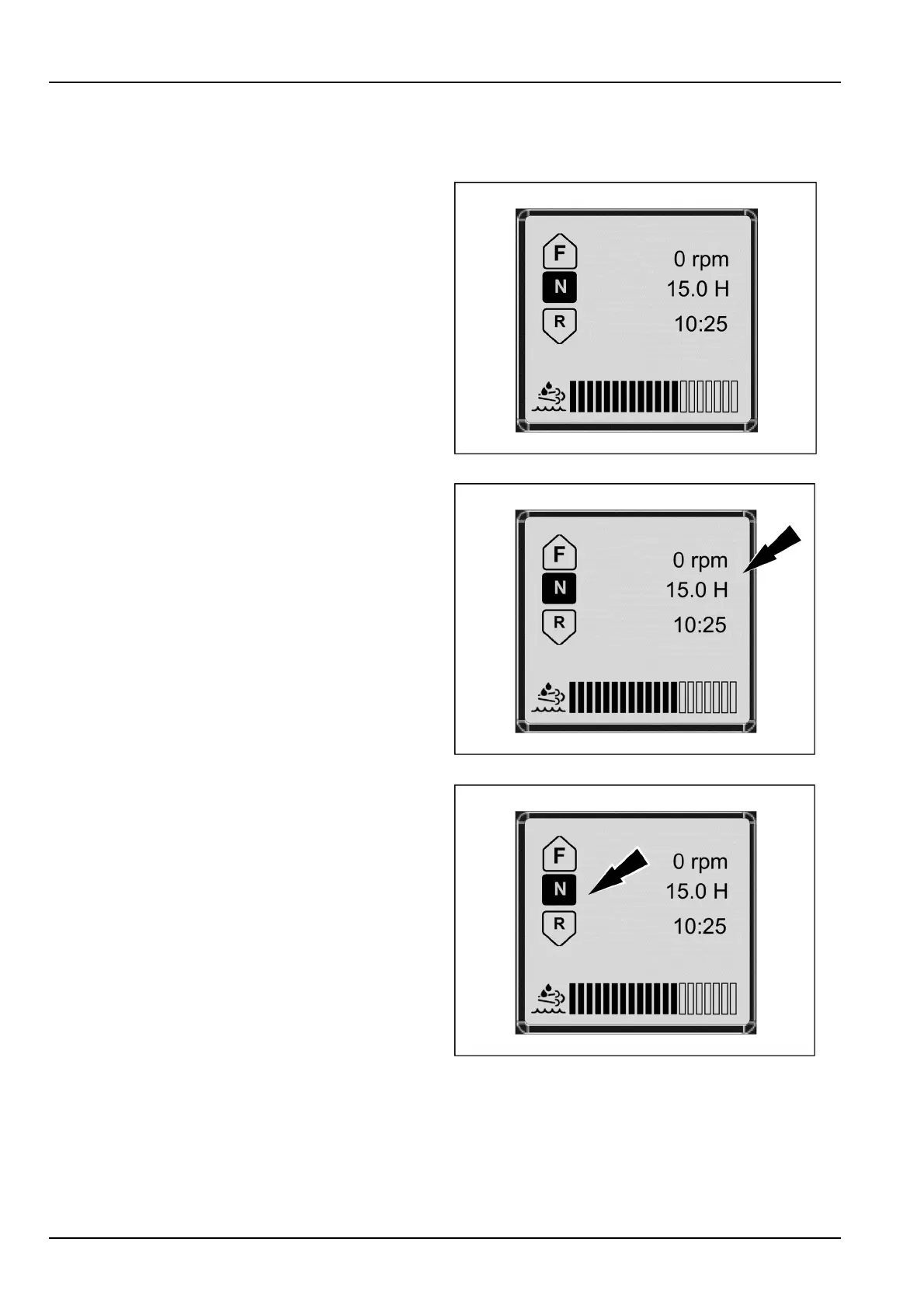

Multi-functiondisplay

Themulti-functionLiquidCrystalDisplay(LCD)islocated

atthecenterofthemodulardashboard.Onstartup,the

consoleindicatorlampswillmomentarilyash.Thedis-

playwillashthemachinemodel.Theinitialstandard

screenwillthenappear.Onceoperatorpreferencesare

set,thescreenwillreectthoseselections.

NOTE:Uponinitialstartup,theoperatorcanpushthere-

turn/escapekey,andthelanguageselectionscreenwill

appearimmediately.Thisallowstheoperatortomakea

languageselectionwithouthavingtouseanunknownlan-

guagetoscrollthroughtopreferences.

RAIL12DOZ0206AA1

InformationwillbedisplayedontheLCDasdirectedby

theoperatororautomaticallybymachineoperations.The

screenofferspromptstoassisttheoperatorwhenpro-

grammingmachinefunctionsand/orperformingdiagnos-

tics.

Thestart-upscreenshowsthemachinehours,RPM,and

time.Thedisplayiscontrolledbymachinetechnologyand

gearedtowardoperatorpreferences.

RAIL12DOZ0206AA2

Theleftsideofthescreendisplaysthetransmissionse-

lectionForward,Neutral,orReverseasselectedbythe

operator(F-N-R).

RAIL12DOZ0206AA3

3-24
