Case 2050M - Track systems

6-WORKINGOPERATIONS
Tracksystems

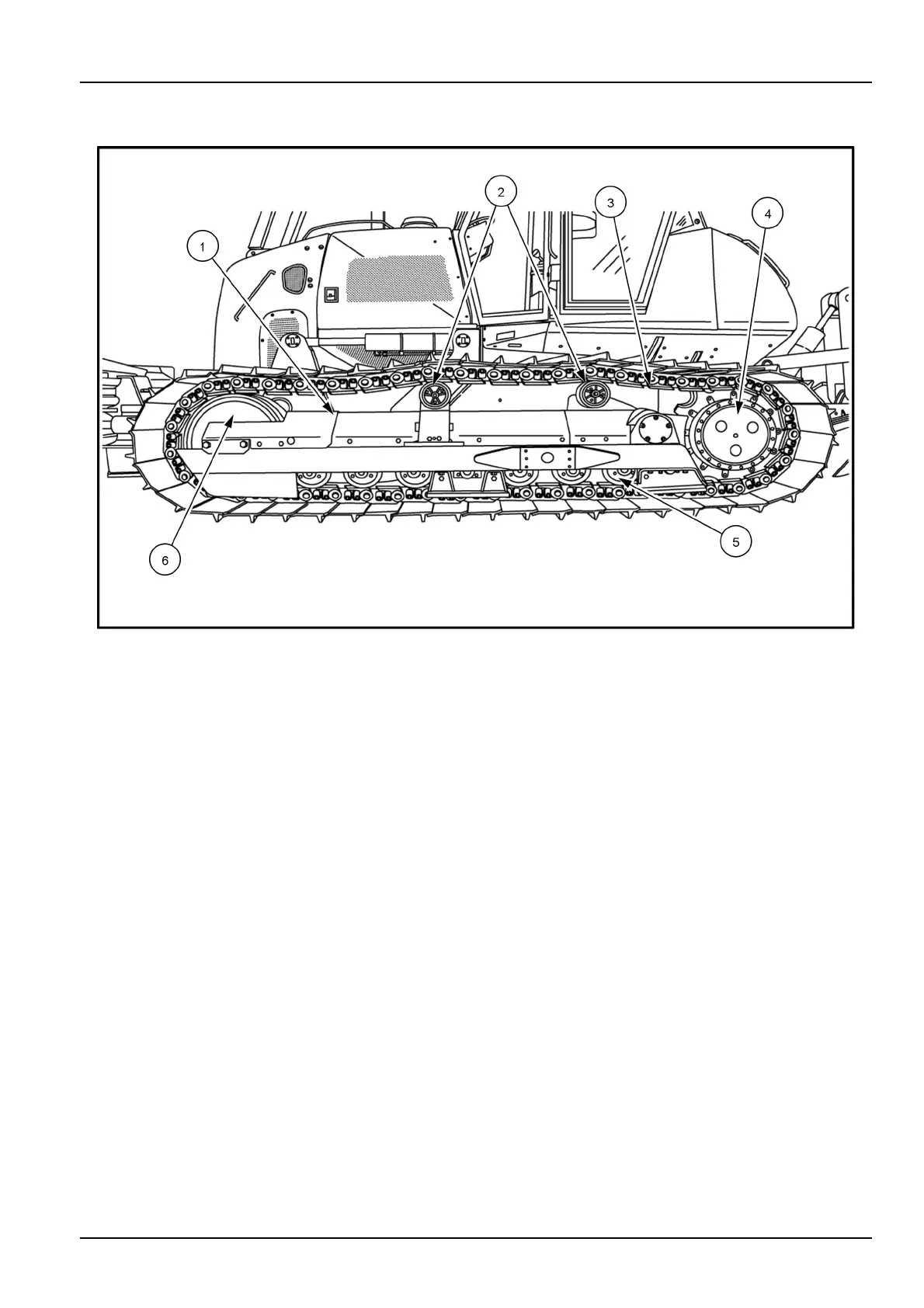

RAIL12DOZ0228FA1
Trackframe
Thetrackframes(1)attachtothemachinechassison
eachside.Allthetrackcomponentsexceptthedrive
sprocketsattachtothetrackframes.
Carrierrollers
Thecarrierrollers(2)mountonthetopofthetrackframes.
Thecarrierrollersupportsthetrackchainbetweenthe
drivesprocketandidler.Thecarrierrollerhelpsmain-
tainalignmentofthechainbetweentheidleranddrive
sprocket.
Trackchain
Thetrackchains(3)includeanumberoflinkassemblies
connectedtogethertoformacompletechain.Shoesbolt
tothetrackchain(3)toprovidetractionforthemachine.
Drivesprocket
Thedrivesprockets(4)transmitenginepowertothe
tracks.Thedrivesprocketsrotatethetrackchainaround
theundercarriageassembly.Thedrivesprockets(4)do
notsupporttheweightofthemachine.
Trackrollers
Thetrackrollers(5)mounttothebottomofthetrack
frames.Theserollerscarrytheweightofthemachineon
thetrackchains.
Idler
Theidler(6)carriesthetrackchainaroundthefrontof
thetrackframe.Thisassemblycanslideforwardorback
onthetrackframeagainsttherecoilspringtoabsorbany
shockloads.Theseshockloadscanbefromchangesin
theterrainortemporarymaterialbuilduponthetracks.
6-11
