1-GENERALINFORMATION

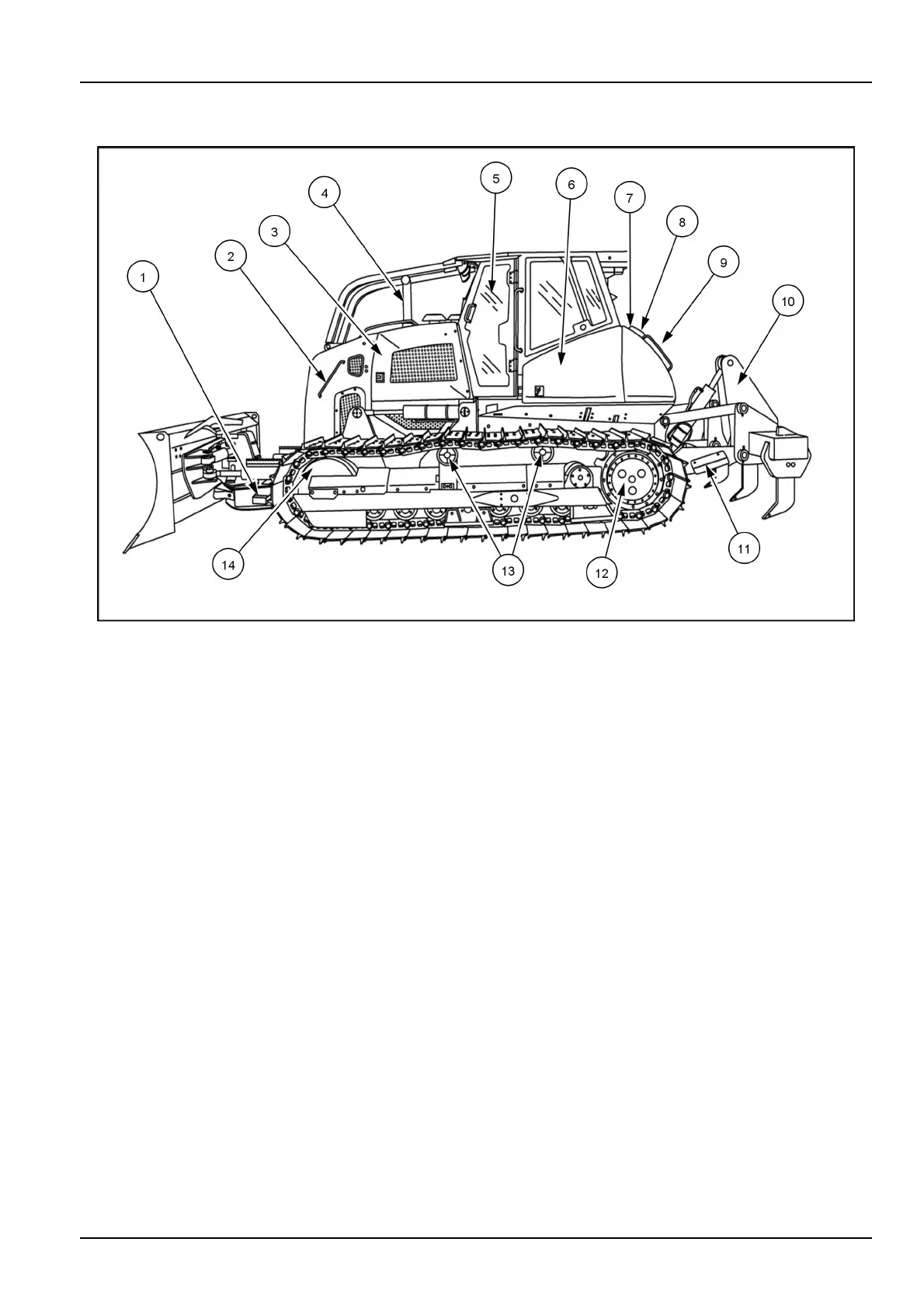

Machinecomponents

RAIL12DOZ0388FA1

1.Step(ifequipped)8.DieselExhaustFluid(DEF)ll

2.Handhold9.Rearhandhold

3.Leftfrontaccessdoor10.Ripper(ifequipped)

4.Exhaust

11.Ripperstep(ifequipped)

5.Leftcabdoor

12.Finaldriveplanetary

6.Leftrearaccessdoor13.Carrierroller

7.Fuelll

14.Idler

1-9
