9-ACCESSORIES

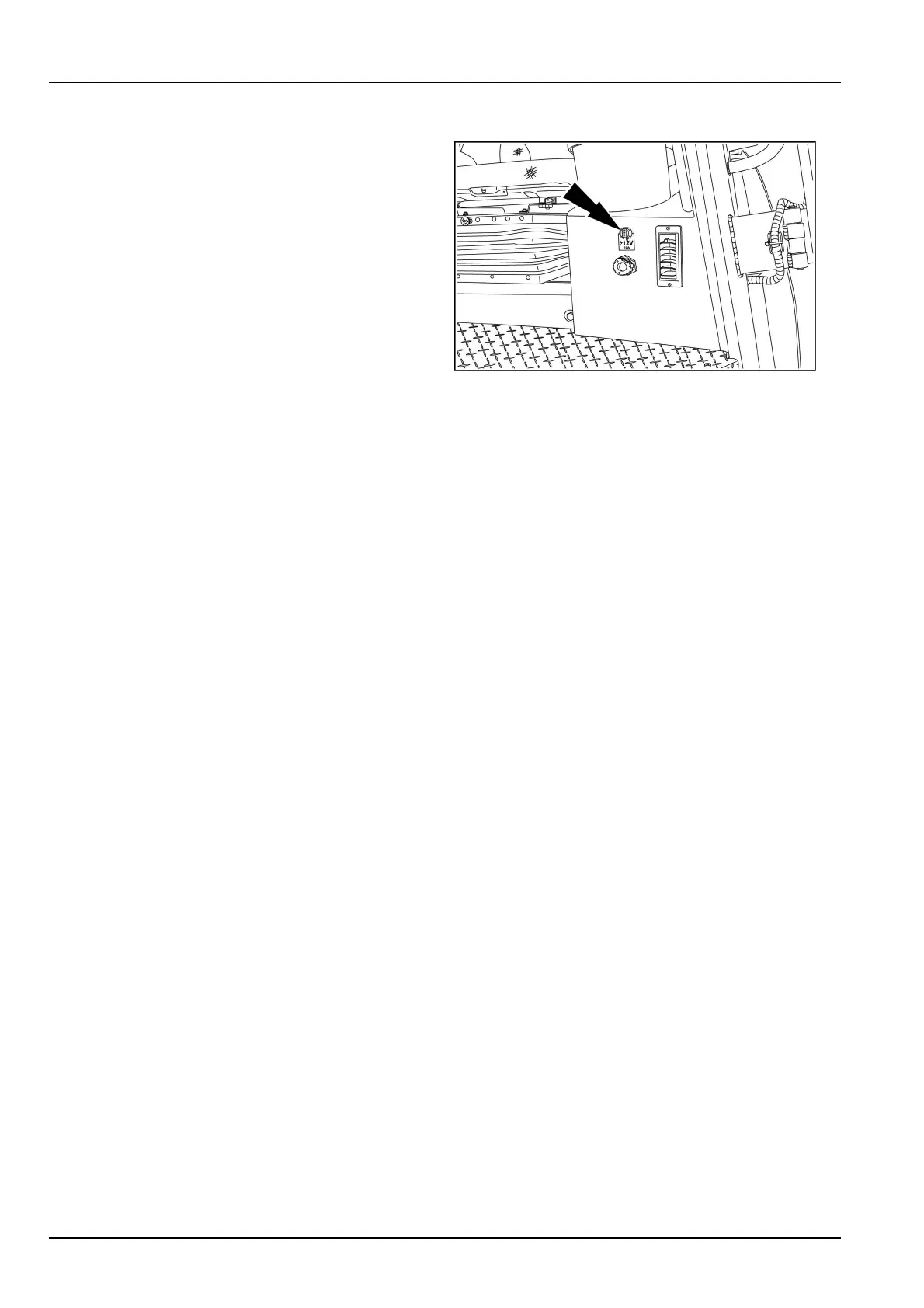

Auxiliarypoweroutlet

Theauxiliarypoweroutletsocket(12V)islocatedinthe

lowerleftcorneroftheoperator’scompartmentbelowthe

leftcontrolconsole.

RAPH12DOZ0086AA1

9-2
