3-CONTROLSANDINSTRUMENTS

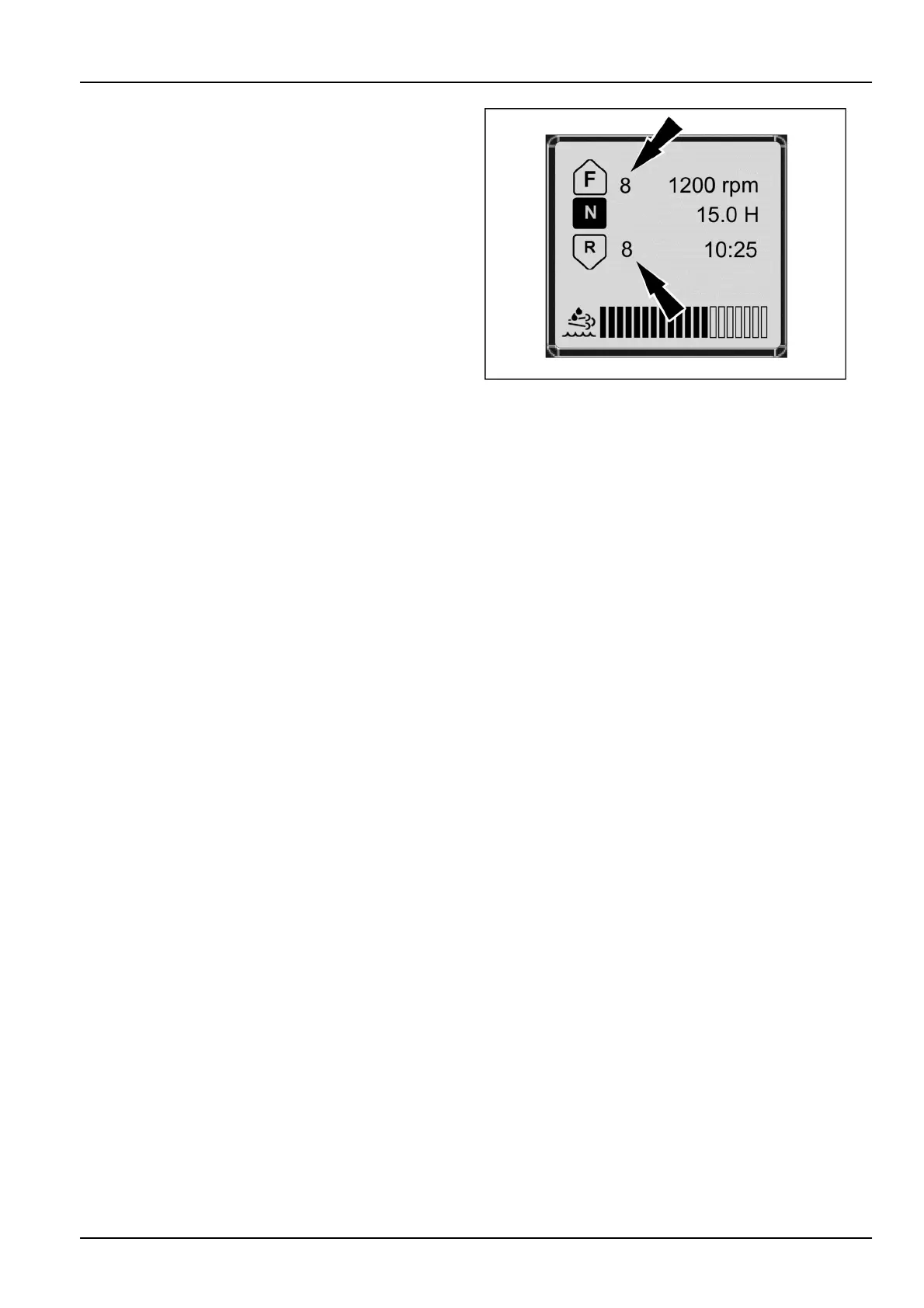

Themachinehas15incrementsforspeedthatarese-

lectedfromthelefthandcontrol.Inthisexample,the

speedsareequalbothforwardandreverse.

ADEFuidgaugeisshownatthebottomofthescreen.

BarsindicateamountofDEFuidinthetankasthebars

areilluminated.

NOTICE:Whenthetracksareunsupportedoffofthe

ground,donotrunthemachineatspeedsabovethestep

10position.Thismayresultindamagetothedrivetrain

components.

RAIL12DOZ0224AA4

3-25
