5-TRANSPORTOPERATIONS

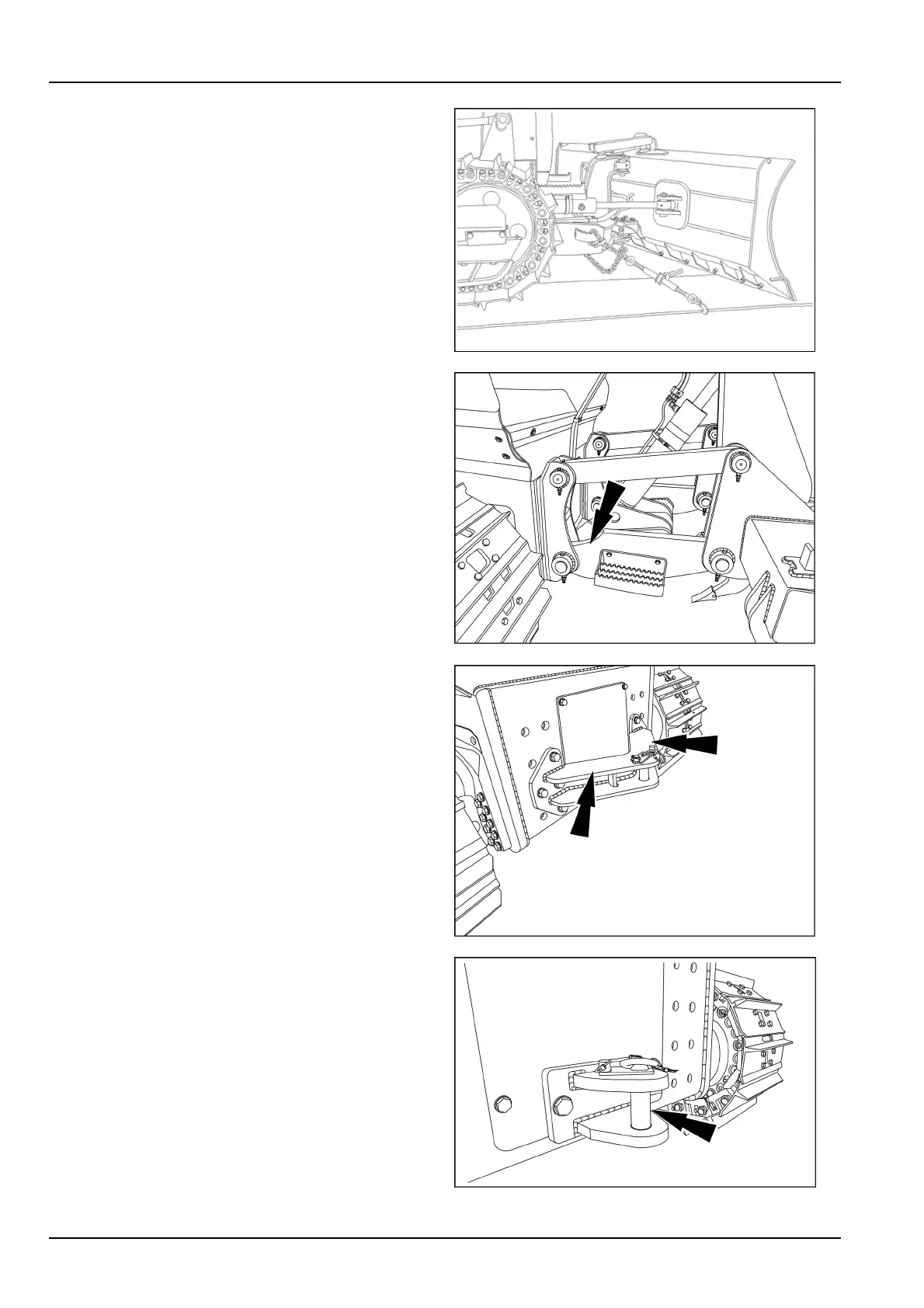

6.Usechainstofastenthecrawlertothetraileratboth

thefrontandrearofthemachine.

7.Putblocksatbothendsofthetracks.

8.Removetheblocksfromthetrailerwheels.

9.Whenmovingthecrawleroffofthetrailer,always

selectaslowerdrivespeed.

10.Keepattachmentsaslowaspossible.

11.Driveslowly,andkeepthemachinecenteredonthe

trailerandramp.

RCIL10CWL033AAL2

RAIL13DOZ1697AA3

RAIL14DOZ0425AA4

RAIL14DOZ0420AA5

5-10
