6-WORKINGOPERATIONS

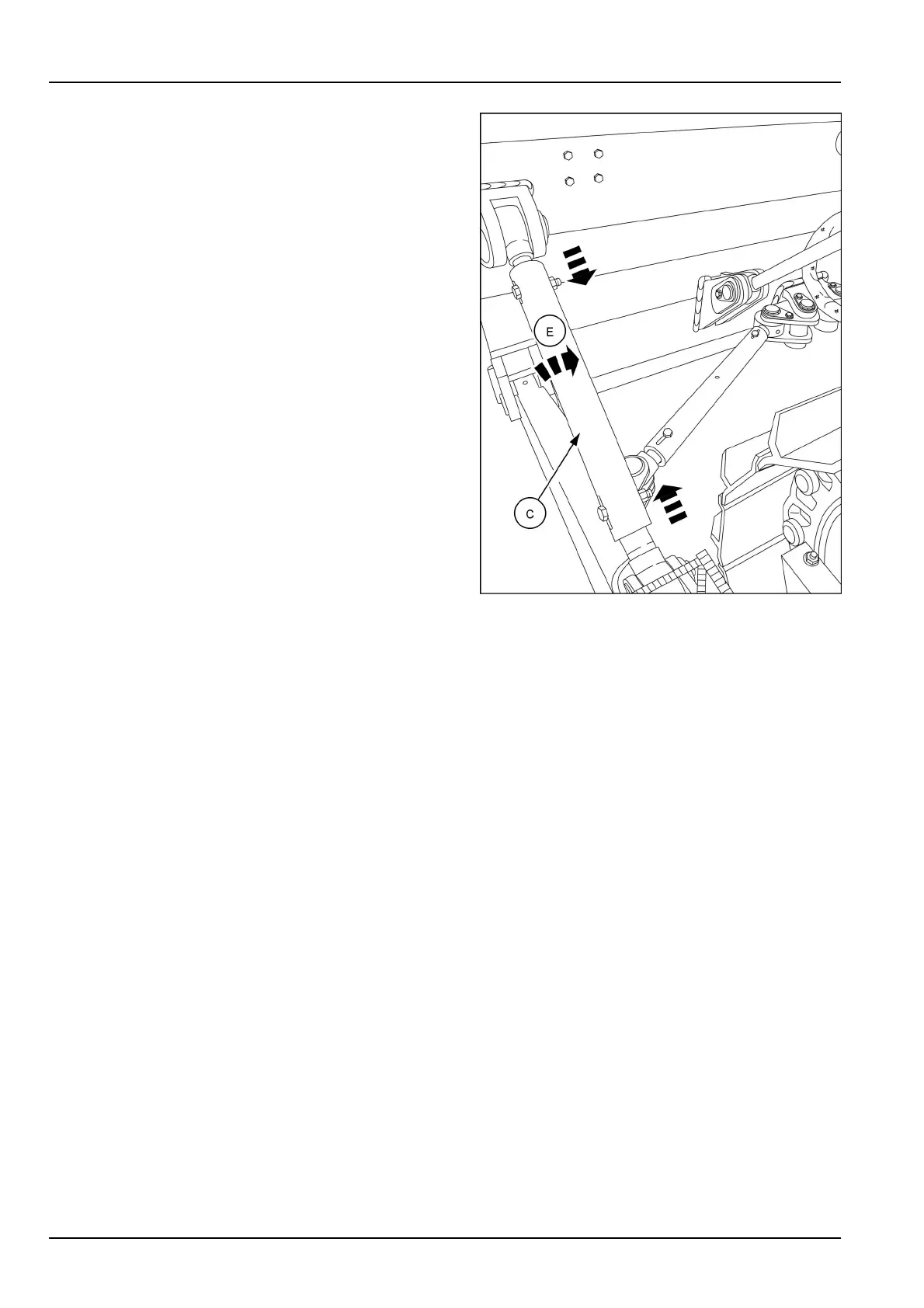

8.Iftheright-handtiltangleislarger,adjustthepitchlink

(C)IN(1/2turn)(E).

RAIL14DOZ0529AA7

9.Repeatsteps5,6,7or8untilthelargerangleisnow

totheoppositeside.

10.Ifthedifferencebetweenthetwoanglemeasurements

isnowgreaterthanitwasbeforethelastadjustment,

reversethelastadjustment.

NOTE:Thismakesthedifferenceassmallaspossible.

6-6
