7-MAINTENANCE

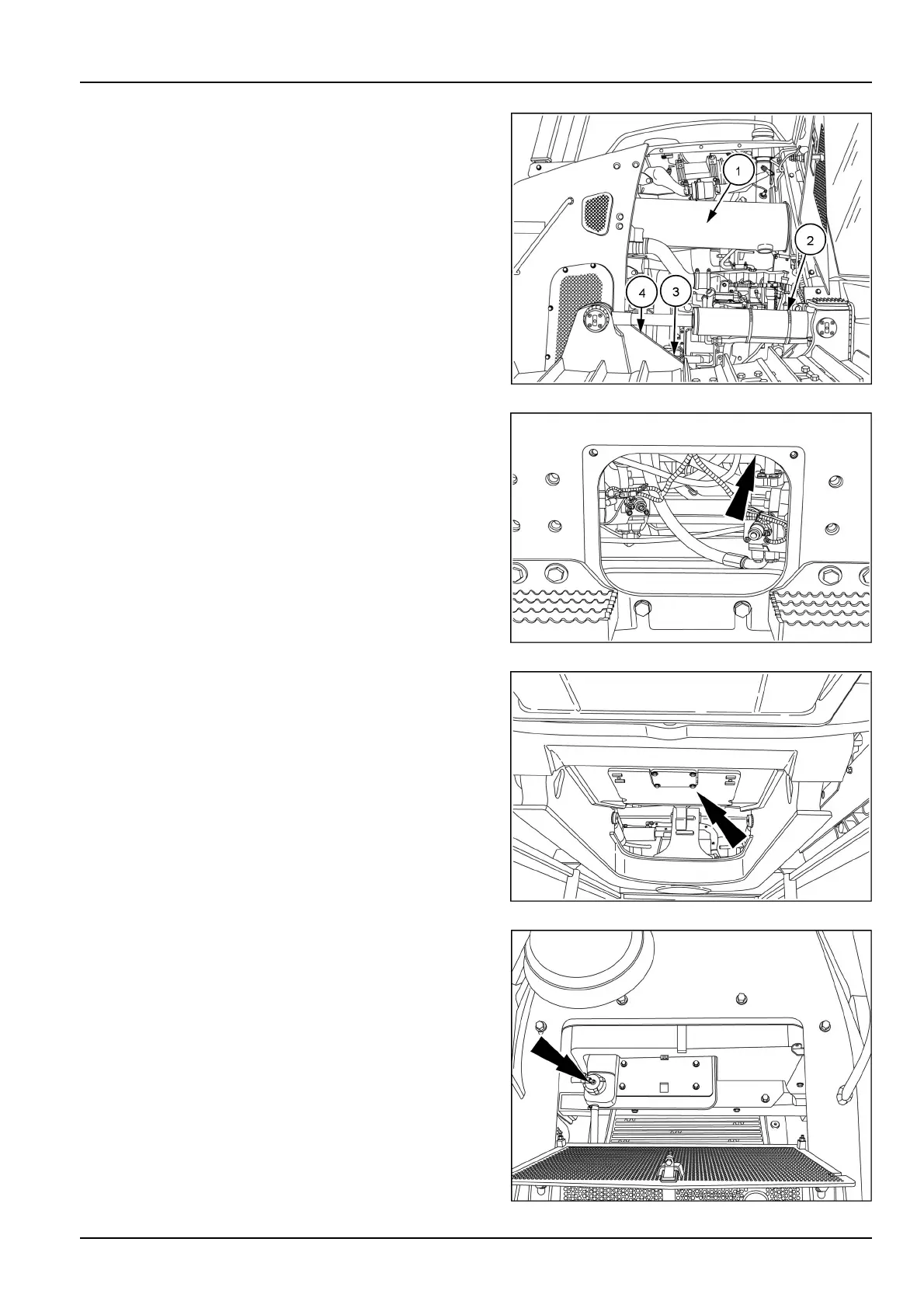

4.Enginehood-frontleft-handsideofthemachine.

Engineaircleaner(1)

Oildipstickandoilll(2)

Engineoilenvironmentaldrain(ifequipped)(3)

Enginecoolantenvironmentaldrain(ifequipped)(4)

RAIL13DOZ1689AA4

5.Rearaccesspanel

Hydraulicoildrain

RAPH12DOZ0099AA5

6.Undercarriagepanels

Coolantdrain

Oildrain

RAPH12DOZ0095AA6

7.Hoodtoppanel

Coolantcheckandll

RAIL13DOZ1690AA7

7-29
