7-MAINTENANCE

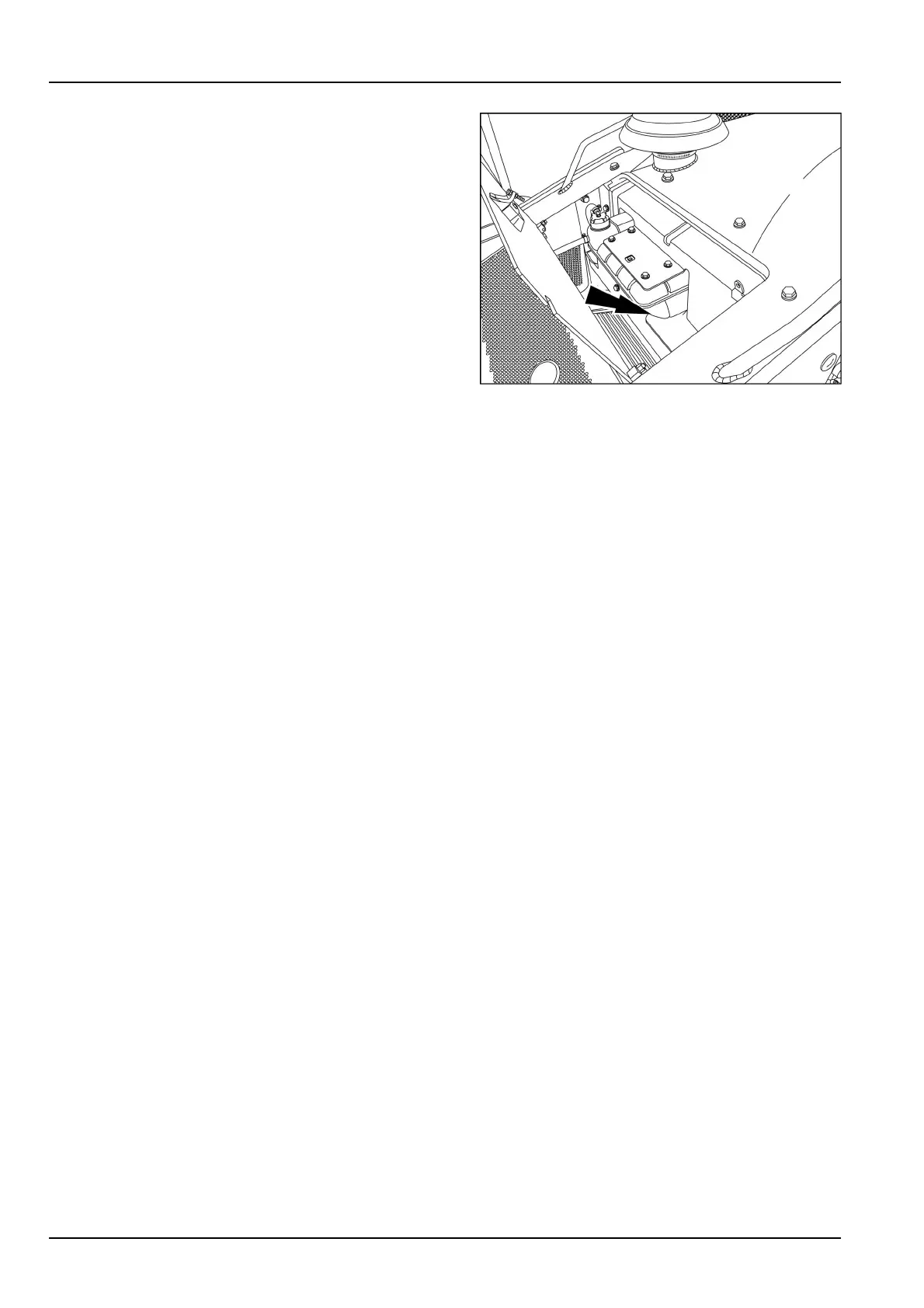

3.Checkthefull/llmarksonthesideofthecoolantreser-

voir.

4.Addcoolant,ifrequired.Usetheproperratioofwater

andantifreeze/coolantifthesystemcoolantlevelislow.

Donotoverll.Securetheaccesspaneldoor.

RAIL13DOZ1692AA3

7-32
