7-MAINTENANCE

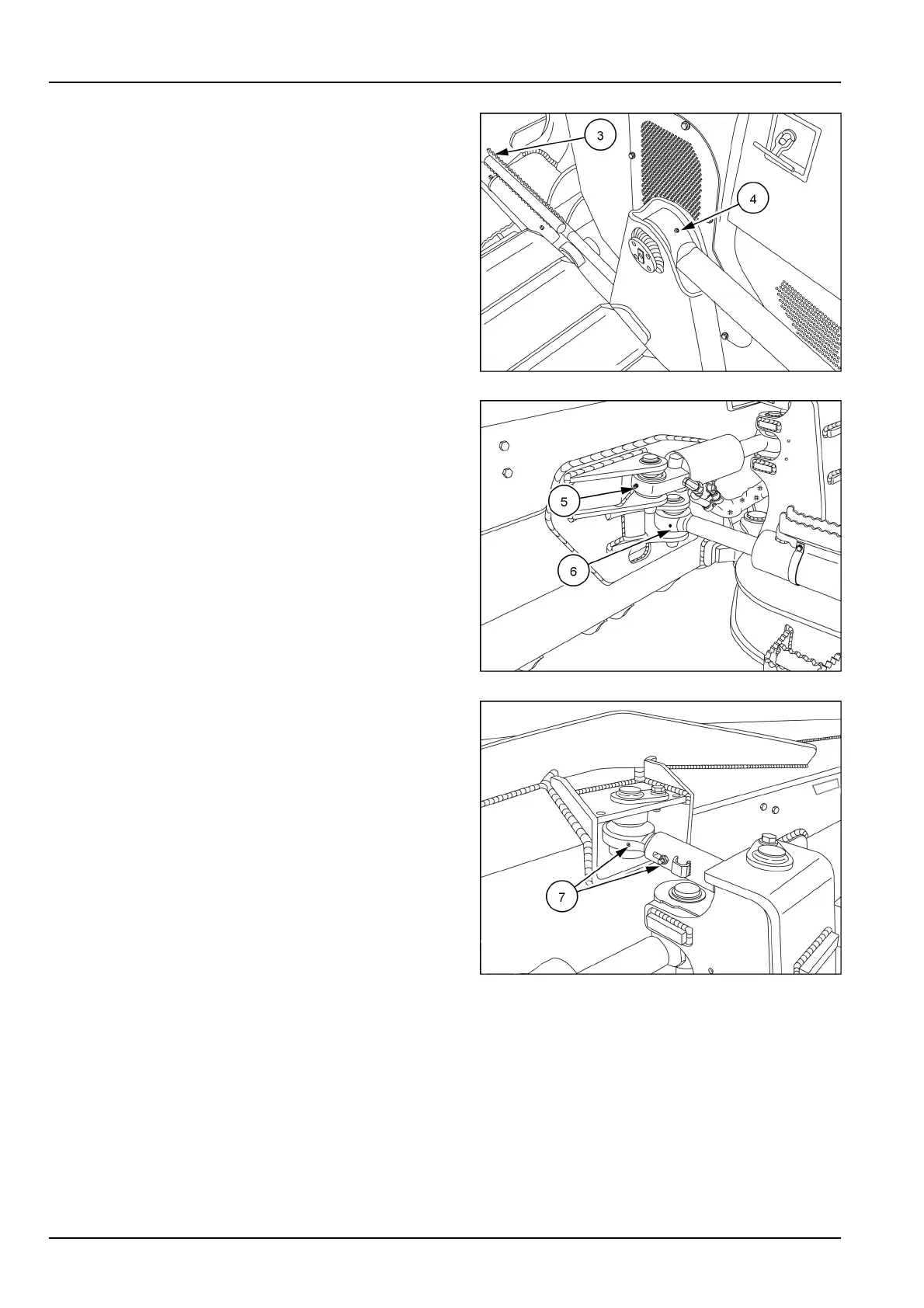

Anglecylinderbaseend(3)—oneeachside

Liftcylinderrodend(4)—oneeachside

RAIL12DOZ0360AA5

Tiltcylinder(bothends)(5)

Anglecylinderrodend(6)—oneeachside

RAIL13DOZ1696AA6

Pitchlink(bothends)(7)

RAIL13DOZ1609AA7

7-36
