Case 2050M - Page 216

To Next Page

To Previous Page

7-MAINTENANCE

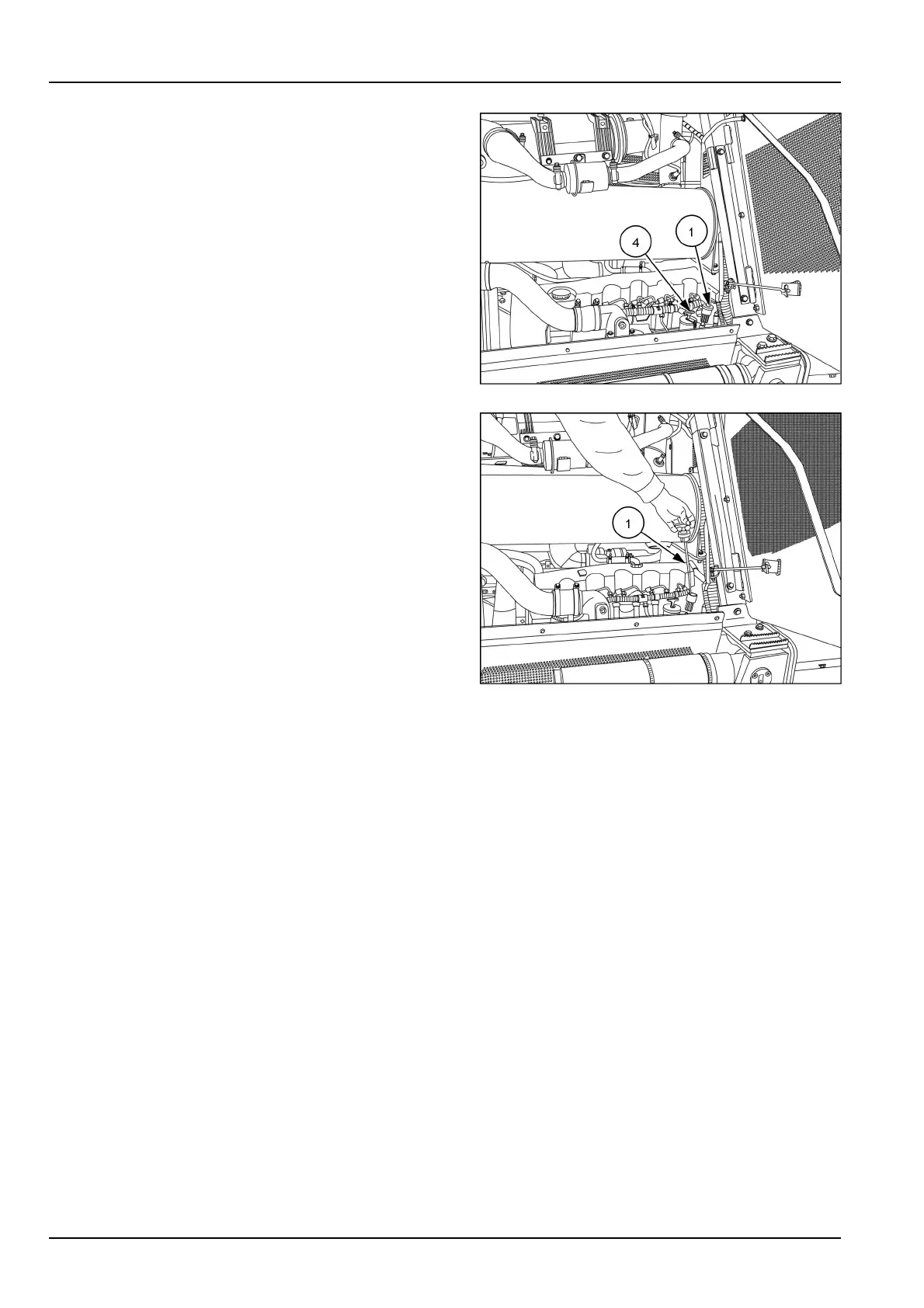

11.Filltheenginewiththeproperamountofoilthrough

thellport(4).

12.Starttheengineandrunatidlespeed.Checkthe

engineoillterandremotedrainforleaks.

13.After2minstoptheengine.

14.Waitfortheengineoiltodraindownforanaccurate

readingonthedipstick(1).

RAIL13DOZ1693AA6

15.Checkthedipstick(1)andaddadditionaloil,ifneces-

sary.

16.Checkforleaksaroundthelteranddrain.

17.Securethelowerengineaccessplate.

RAIL13DOZ1694AA7

NOTE:Theoilowratecanbeimprovediftheoilisslightlywarmandtheoilllcapordipstickisremovedfromthe

enginewhiledraining.

7-60
