7-MAINTENANCE

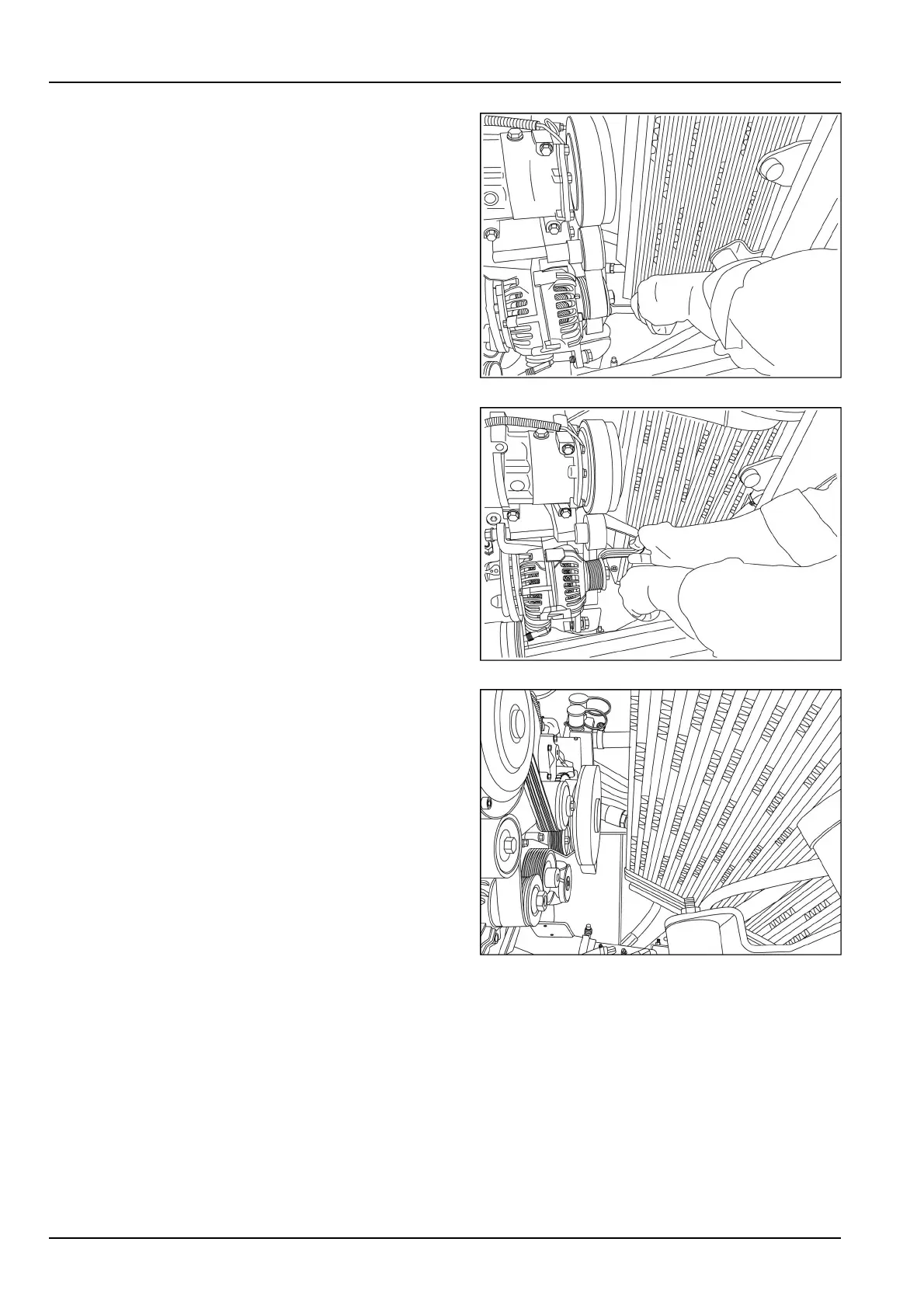

3.Loosenthetensionerjustenoughtoremovethedrive

belt.

RAIL12DOZ033AA2

4.T oinstallthenewbelt,tthebeltoverthealternator

andcrankshaftpulleys.Completetheturnwhilelifting

thetensionerasnecessary.

RAIL12DOZ032AA3

5.Checkthebeltforcorrecttension.

RAIL12DOZ034AA4

Belttension

Thecorrecttensionforanewdrivebeltis:

623-712N·m(459.5-525.1lbft).

Tensionforauseddrivebeltis:

400-534N·m(295.0-393.9lbft)tension.

7-74
