2-SAFETYINFORMATION

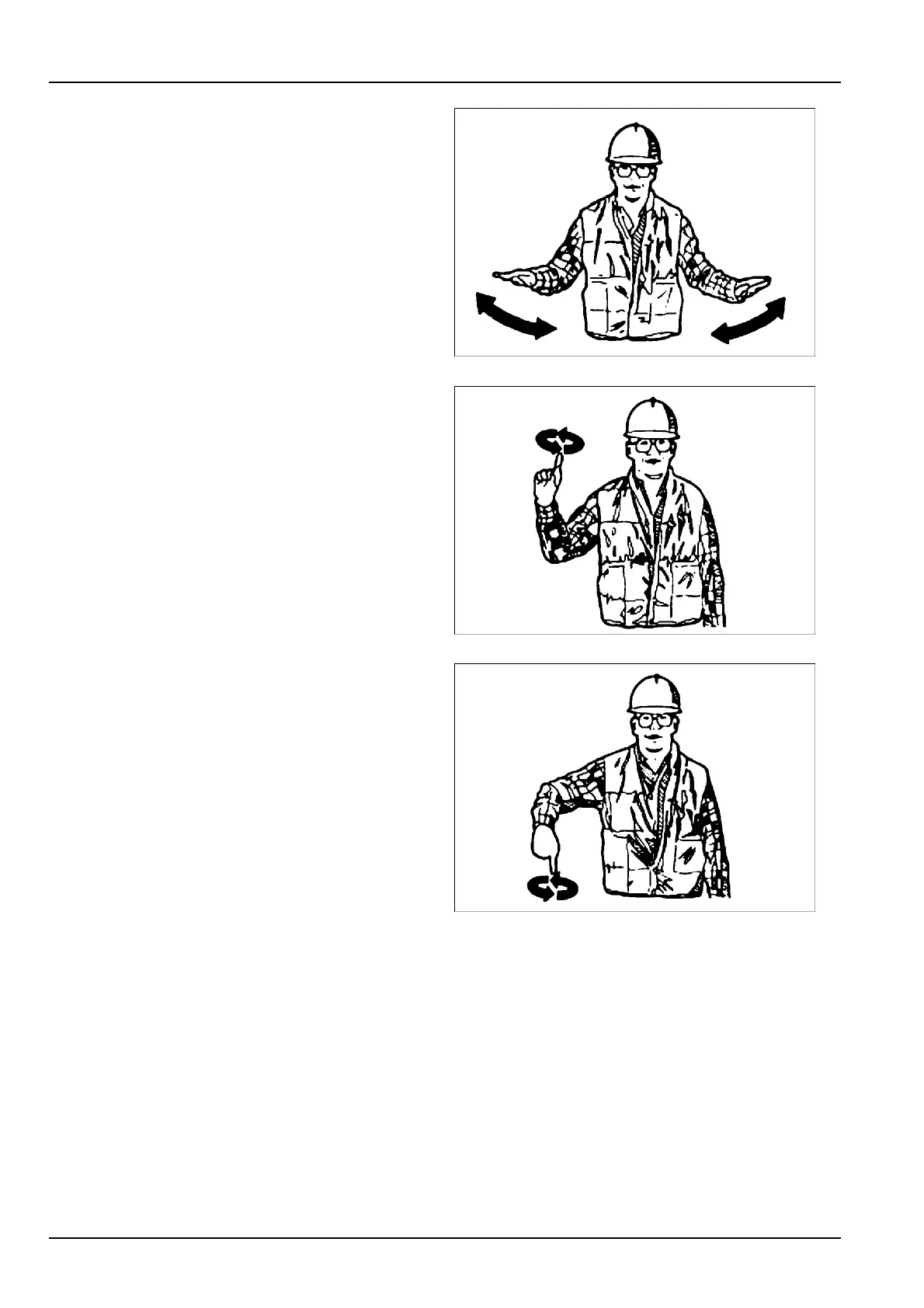

Emergencystop

Movebothhandsbackandforth.

RAIL15DOZ0059AA8

Raisethetool.

RAIL15DOZ0060AA9

Lowerthetool.

RAIL15DOZ0061AA10

2-14
