3-CONTROLSANDINSTRUMENTS

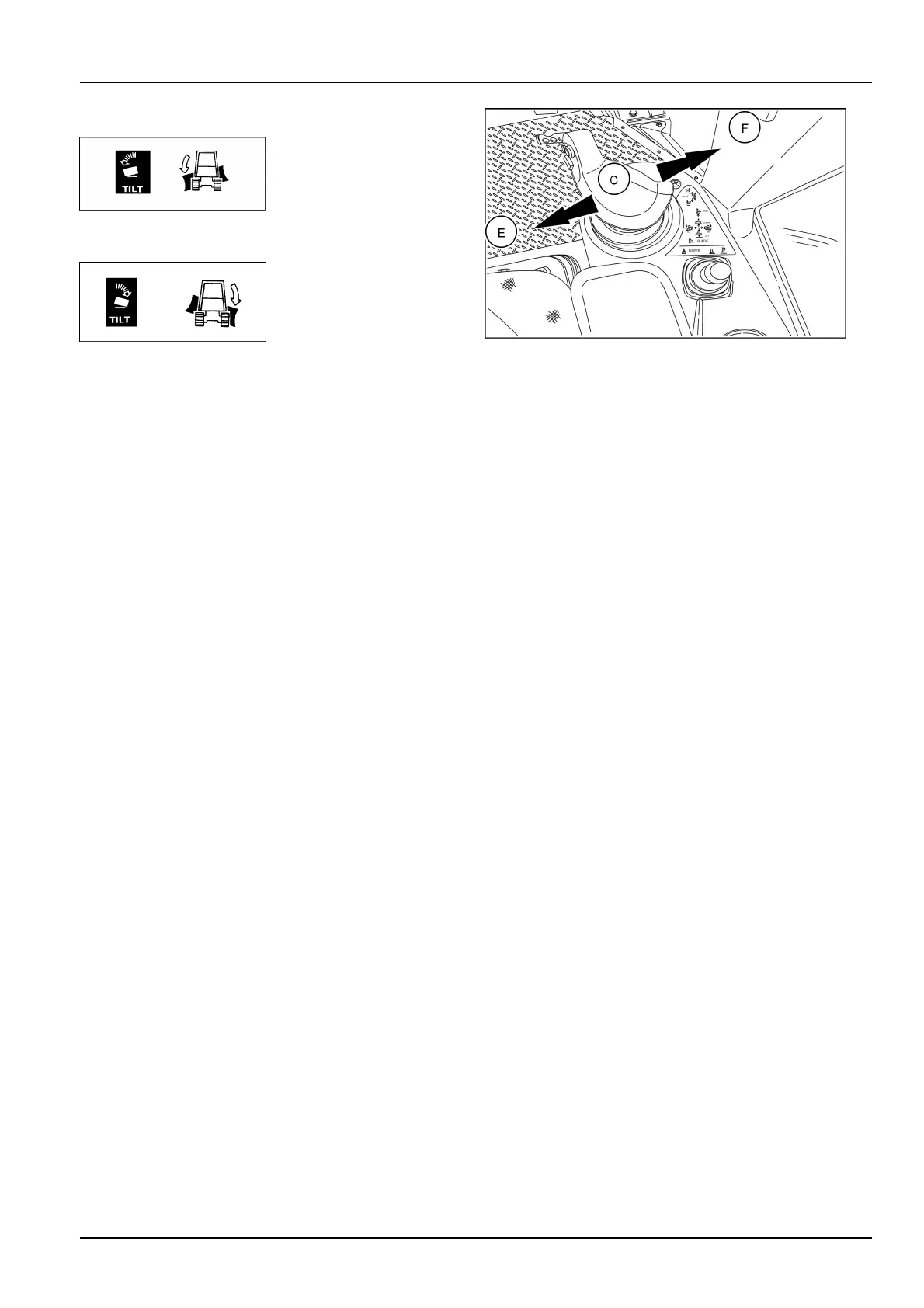

Tilt

Movethecontrollevertotheleft(E)totiltthebladetothe

left.

Movethecontrollevertotheright(F)totiltthebladeto

theright.

Thebladewillstopmovingwhenthecontrolleverisinthe

HOLD(C)position.Whenreleased,thecontrolleverwill

returnautomaticallytotheHOLDposition.

RAPH12DOZ0081AA4

3-37
