SECTION 58 -- ATTACHMENTS AND HEADERS -- CHAPTER 1
58-15

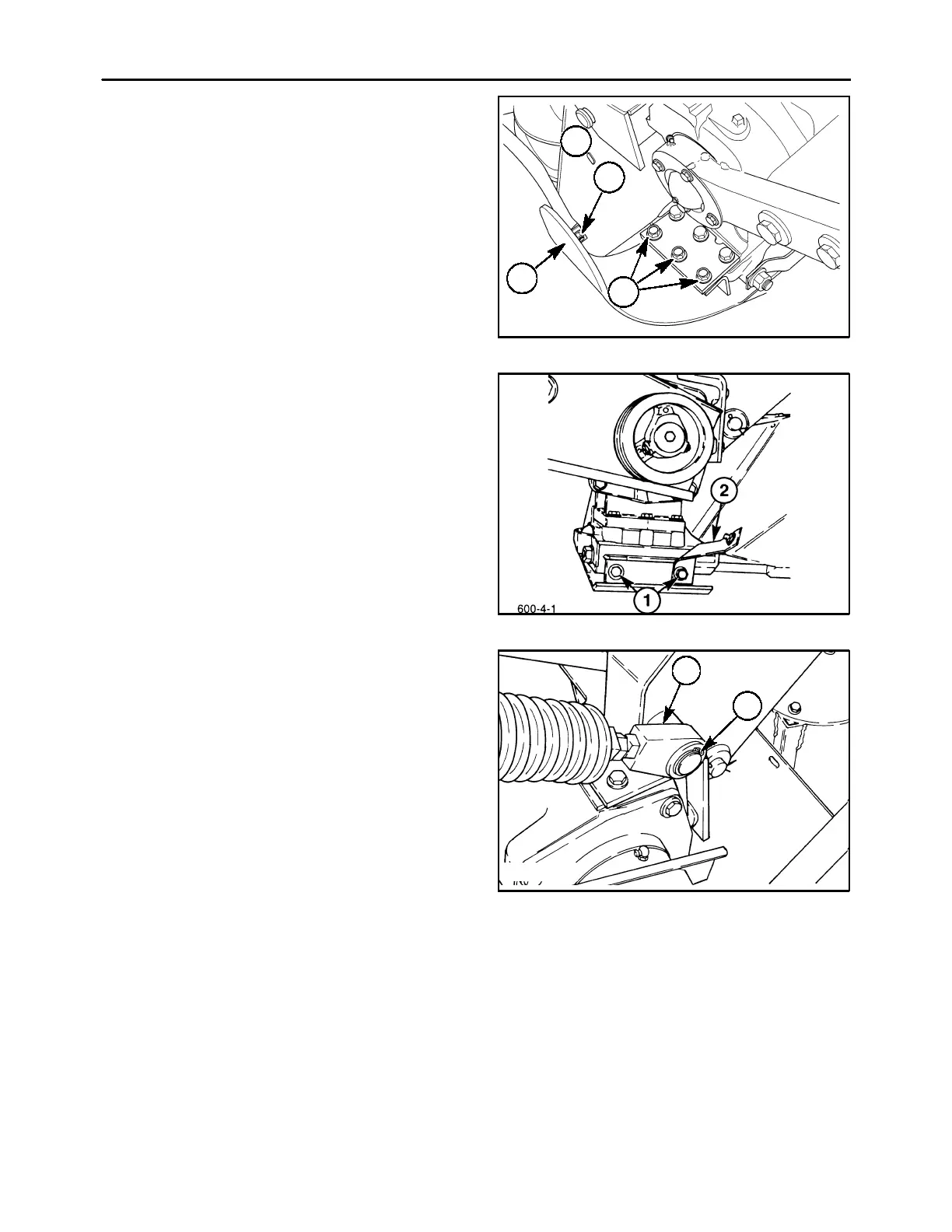

11. Raise the cutter bar high enough so that blocks
may be positioned under the #1 and end disc
modules, to support the cutter bar off the floor.
Remove the three cap screws, 1, from the front
of the bevel gearbox, and slide the front lip of the
inner skid shoe, 3, on over the front of the bevel
gearbox and drive module. Reinstall the three
cap screws, 1, but do not tighten at this time. At-
tach the inner shield, 4, and pipe support to the
front of the skid shoe using a carriage bolt, 2, and
flange nut.
19990604
2
4
3
1
32
12. Install the two cap screws, 1, and lock washers
to secure the rear of the inner skid shoe to the
drive module; position the inner shield mounting
bracket, 2, under the right cap screw. Tighten the
two rear cap screws to 83 ft lbs (113 N⋅m). After
the two rear cap screws are tightened, torque the
three front cap screws, 1, Figure 32, to 117 ft lbs
(159 N⋅m).
33
13. Install the flotation spring by sliding the lower
mount, 2, over the mounting pin; secure using a
flat washer and snap ring, 1.
600-4-2
1
2
34
