SECTION 58 -- ATTACHMENTS AND HEADERS -- CHAPTER 2
58-25
4. Remove the inner skid shoe and shield by remov-
ing the two rear cap screws, 1, Figure 54, retain-
ing the inner skid shoe to the drive module; note
that the right rear cap screw also retains the
mounting bracket for the rear of the inner shield.
Remove the front carriage bolt, 2, between the in-
ner skid shoe and the inner shield, and the three
cap screws, 1, holding the skid shoe to the front
of the module. Remove the inner skid shoe, 3,
and inner shield, 4, from unit.
NOTE: The three bolts holding the front of the skid
shoe to the bevel gearbox also hold the bevel gear-
box to the drive module.
A3680-30
1
56

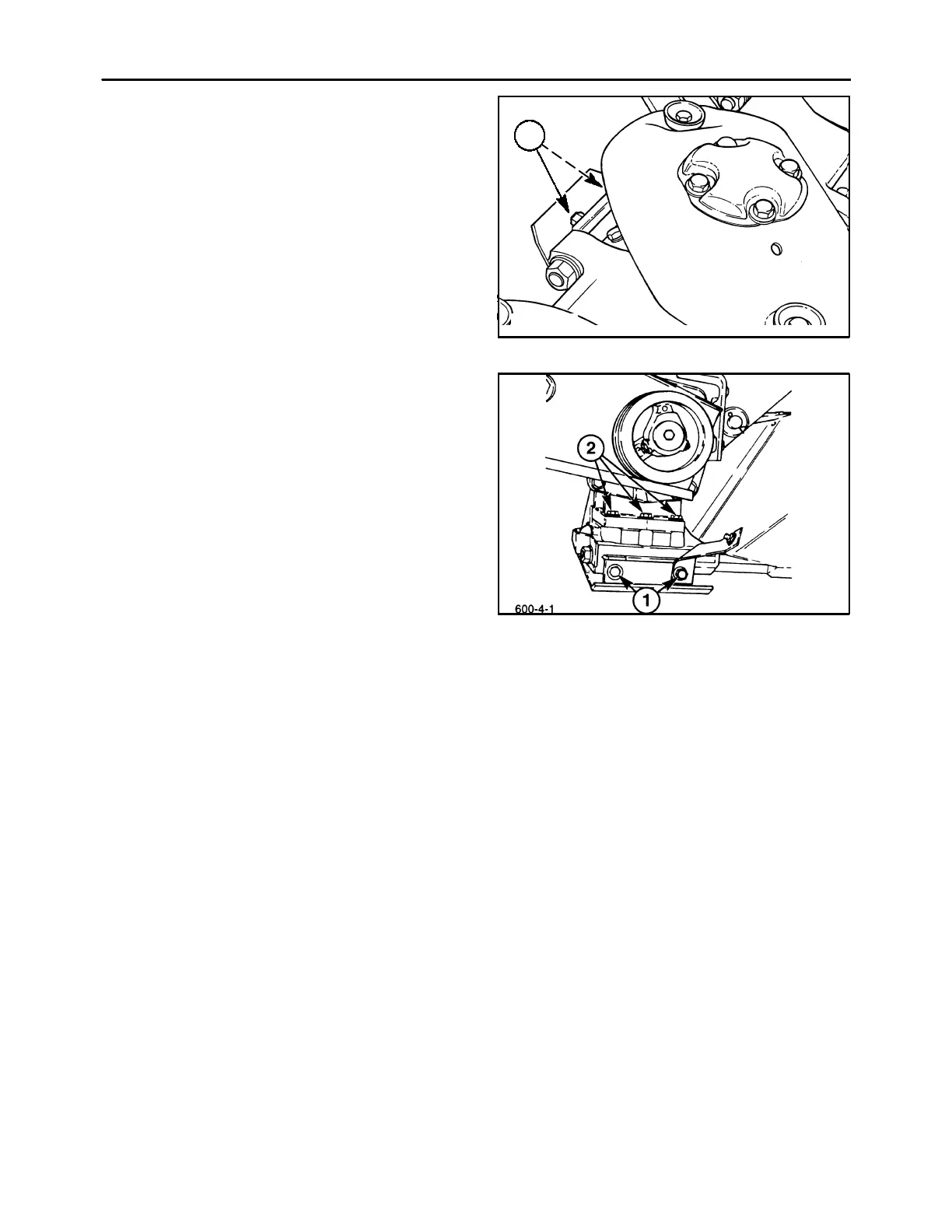

5. Remove the three cap screws, 2, holding the rear
of the bevel gearbox to the cutterbar drive
module.
57
