SECTION 31 -- IMPLEMENT POWER TAKE-OFF -- CHAPTER 2
31-4

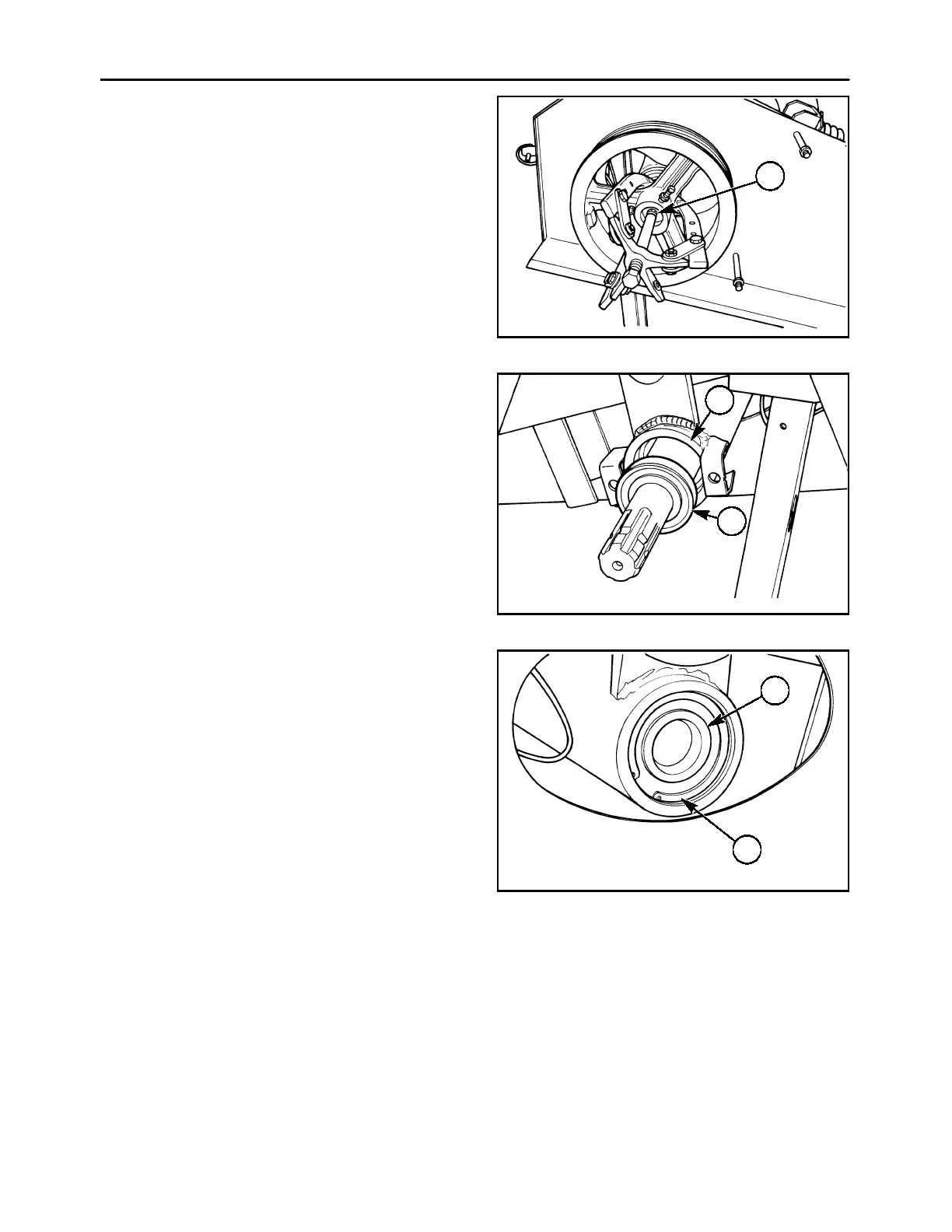

8. Install a three jaw puller to pull on the sheave in-
ner hub; thread a 3/8″ x1″ cap screw, 1, back into
the end of the shaft, or position a shaft protector
to protect the end of the shaft. Pull the sheave off
the jack shaft.
600-3-3
1
6
9. Thoroughly clean the end of the jack shaft using
emery cloth. Leave the cap screw, 1, Figure 36,
installed in the end of the jackshaft, and use a
hammer to drive the jackshaft forward out of the
rear bearing; the front bearing, 1, will be driven
out of the housing, 2, at the same time.
600-3-4
1
2
7
10. Remove the rear snap ring, 1, and use a long
punch to drive the rear bearing, 2, out of the
housing.
600-3-5
1
2
8
