SECTION 58 -- ATTACHMENTS AND HEADERS -- CHAPTER 1
58-4

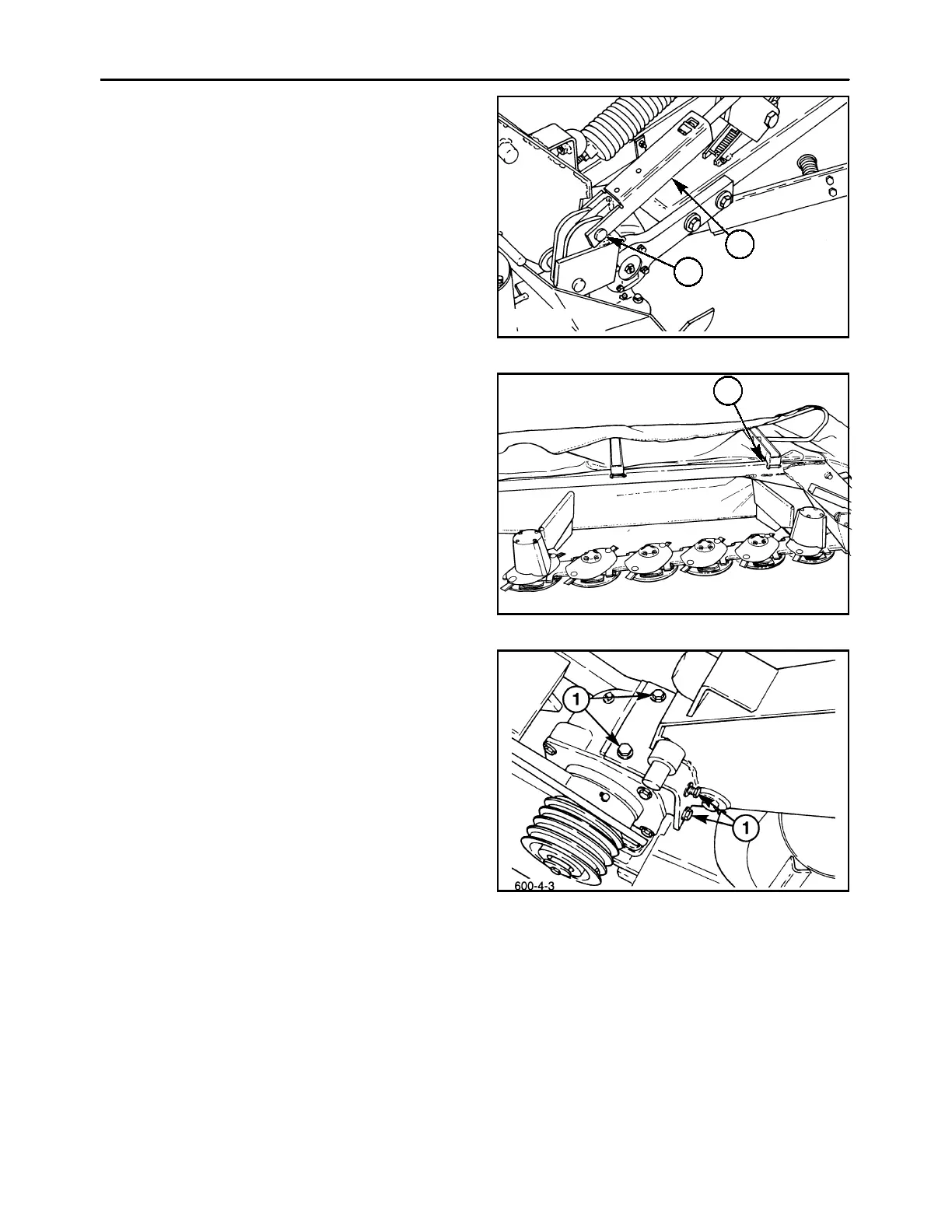

6. Disconnect the lift cylinder from the cutter bar lift
links by removing the cotter pin and shoulder pin,
1. Remove the cutter bar lift stop channel, 2, and
set it aside. Retract the lift cylinder, and let it hang
from the upper mount on the frame.
A3671-10
1
2
6
7. With the canopy folded open, attach a hoist or
other lifting mechanism to the canopy support at
1.
A3680-27
1
7
8. Remove the six cap screws, 1, that attach the
canopy support to the bevel gearbox, and lift the
canopy support away from the unit.
NOTE: Remaining two bolts not shown are located
on the lower front portion of the canopy support
mount.
8
