A6 kit for connecting non-standard CEA torches
To connect non-standard CEA TIG torches, use kit code 46005.

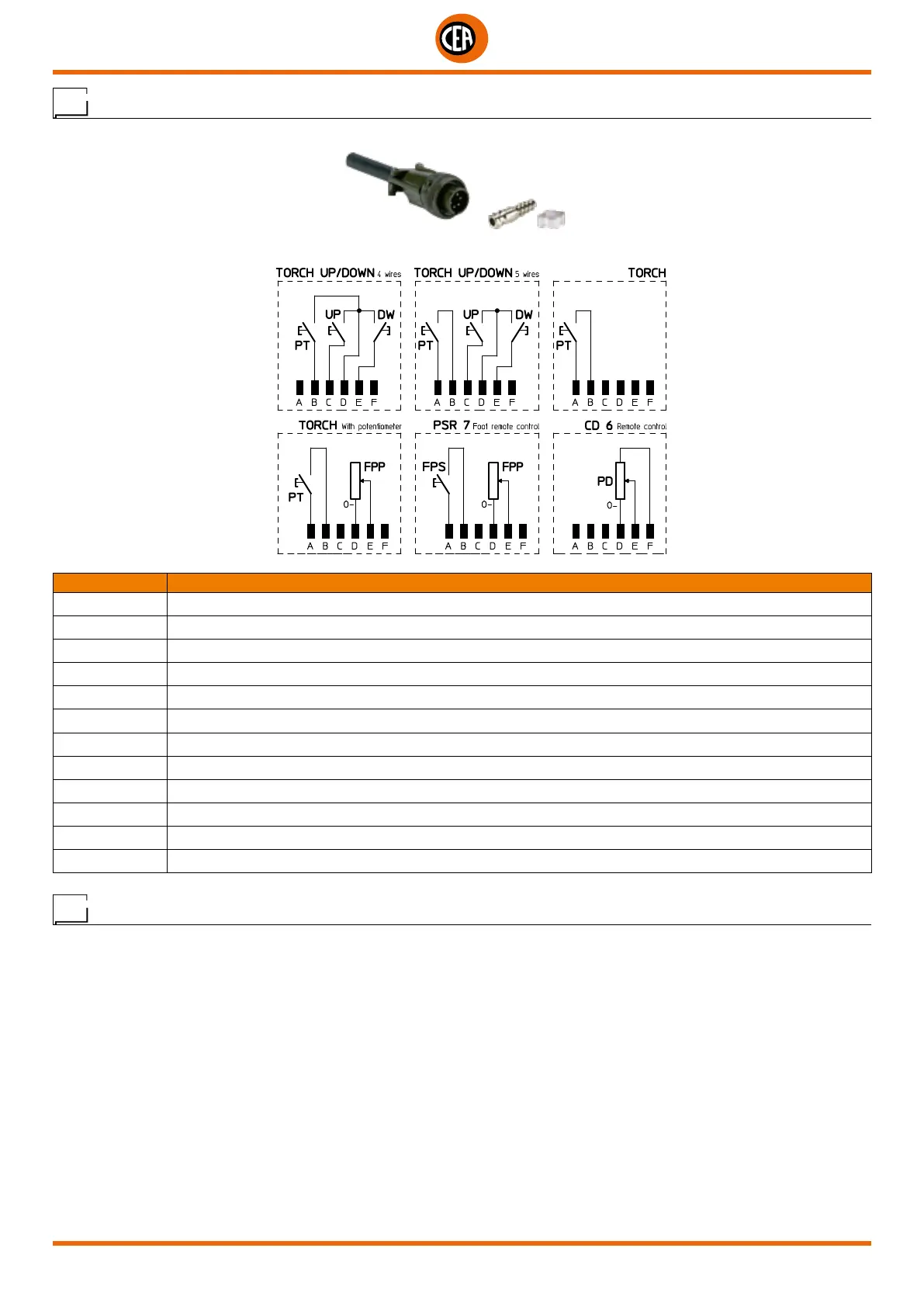

Wiring diagram for 6-pole connector connection
1
2
3 4
6 5
SYMBOL DESCRIPTION
1 Torch with single button
2 Torch with potentiometer
3 PSR7 Pedal control
4 CD 6 remote control
5 Torch UP / DOWN with no.5 wires
6 Torch UP / DOWN with no.4 wires
DW Pulsante Down
FPP Potenziometro 10 kΩ
FPS Pulsante Start
PD Potenziometro 10 kΩ
PT Pulsante torcia
UP Pulsante Up
The pointing out of any difficulties and their elimination
The supply line is attributed with the cause of the most common difficulties. In the case of breakdown, proceed as follows:
1) Check the value of the supply voltage
2) Check that the power cable is perfectly connected to the plug and the supply switch
3) Check that the power fuses are not burned out or loose
4) Check whether the following are defective:
• The switch that supplies the machine.
• The plug socket in the wall.
• The generator switch.
NOTE: Given the required technical skills necessary for the repair of the generator, in case of breakdown we advise you to contact skil-
led personnel or our technical service department.
