Table 2 shows the capacity values that are recommended for fuses in the line with delays.
NOTE: Any extensions to the power cable must be of a suitable diameter, and absolutely not of a smaller diameter than
the special cable supplied with the machine.
Table 2
Model
MATRIX X220 AC/DC MATRIX X300 AC/DC
TIG MMA TIG MMA
Input power @ I
2
Max kVA 6,5 7,0 9,6
Delayed fuse (I
2
@ 100%) A 16 10
Duty cycle @ X% (40°C) A 220 (30%) 180 (30%) 300 (35%) 250 (40%)
Mains cable
Length
Section
m
mm
2
3,5
2,5
4
2,5
Ground cable
Section mm
2
25 35

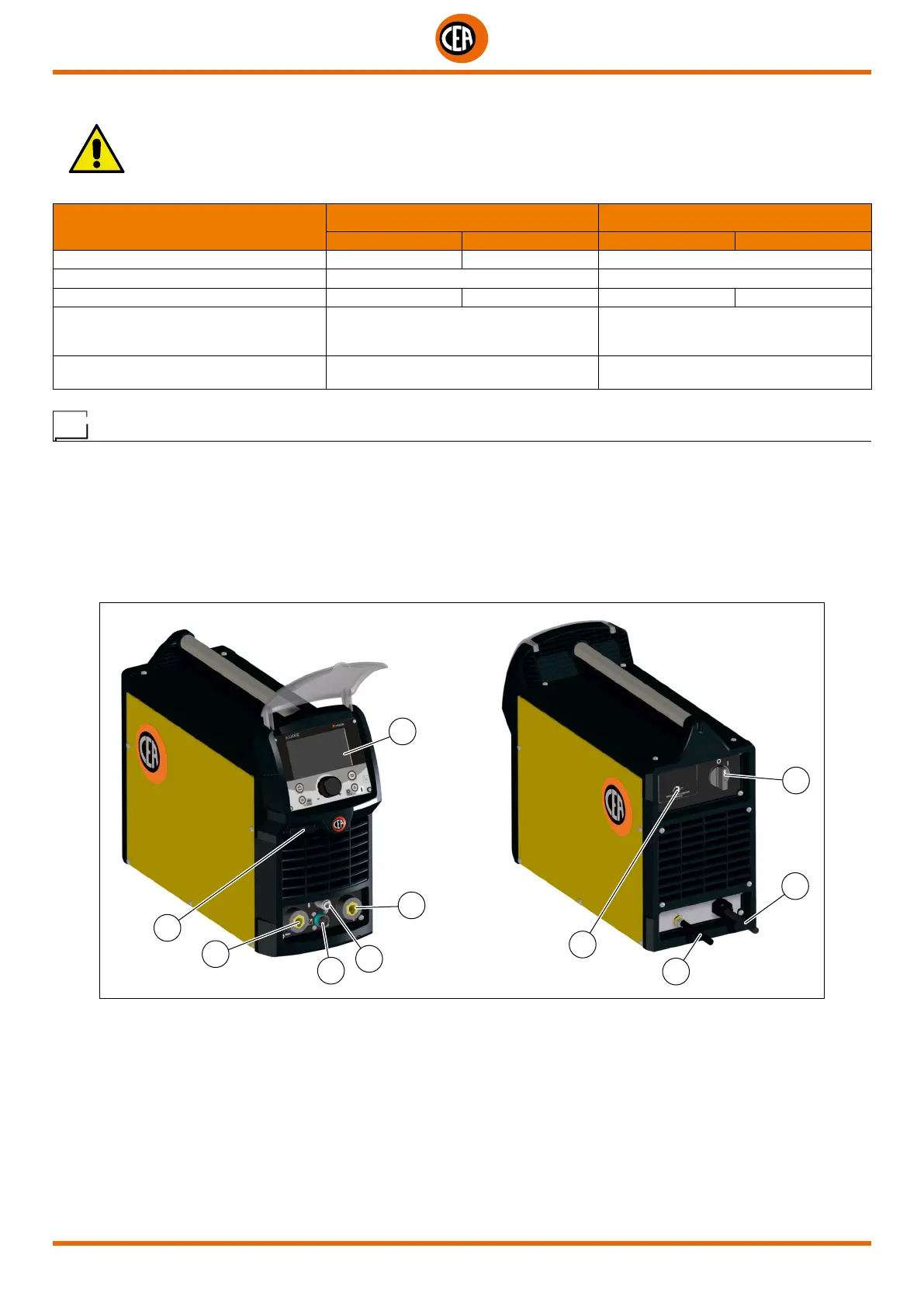

General description of welding machine commands and controls
Pos. 1 XVISION command and control panel.
Pos. 2 Positive pole quick connection.
Pos. 3 Fast coupling TIG torch gas tube.
Pos. 4 TIG weld auxiliary control connector (torch button, remote controlpedal, etc.).
Pos. 5 Negative pole quick connection.
Pos. 6 USB Socket.
Pos. 7 Power supply switch. In the “O” position the welder is off.
Pos. 8 Mains cable.
Pos. 9 Welding gas hose.
Pos. 10 Housing for analogue and digital interfaces for automation and robotising plants.
7
10
8
9
1
2
5
6
3
4
