CERUS CI-007-P2 - Control Wiring for 50-700 HP VFDs

Chapter 3 – Installation & Wiring
3-4

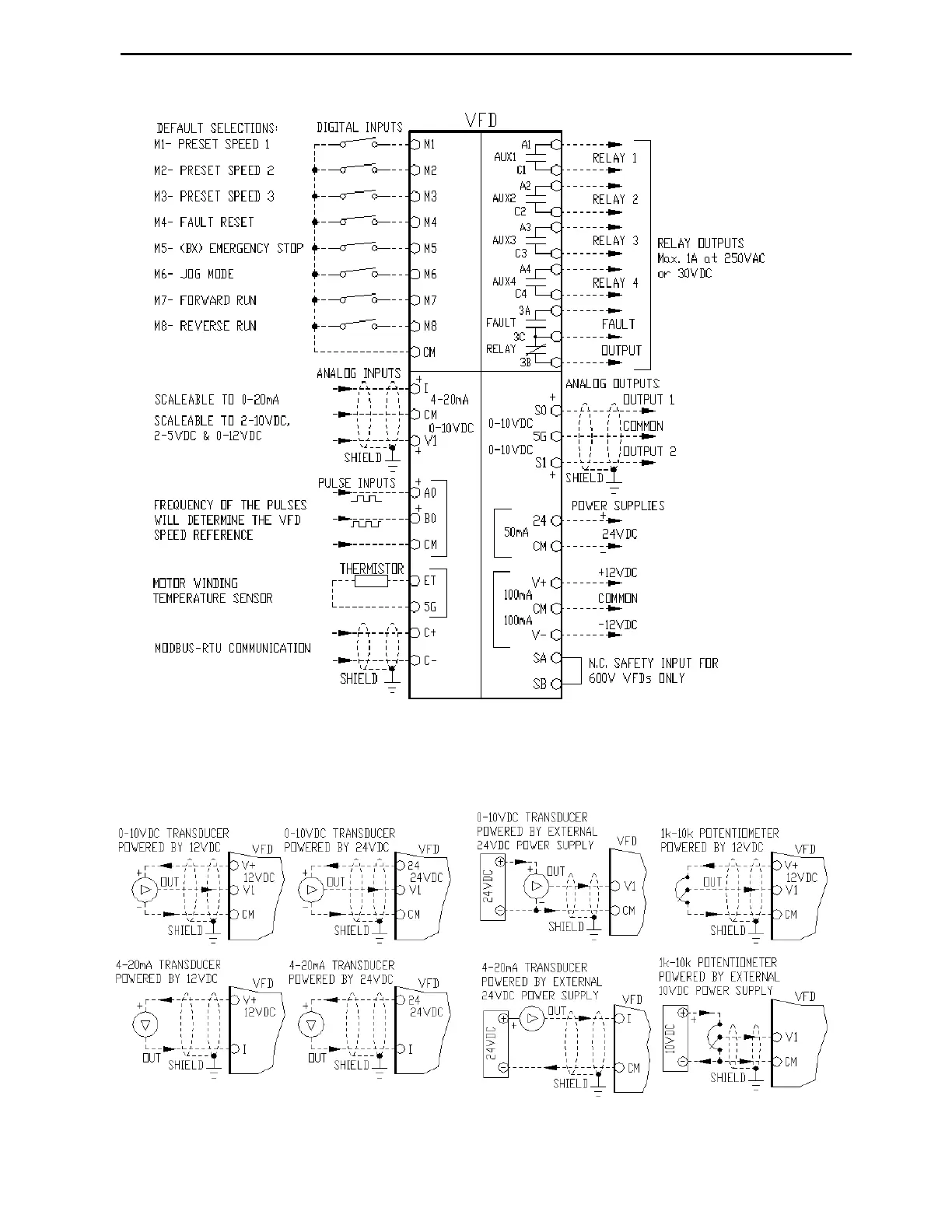

3.2.3 Basic Control wiring for 50~700HP (37~525kW) VFDs
Note: Use terminal CM for analog inputs, pulse input and ±12VDC power supply common.
Analog inputs wiring with CM common terminal
