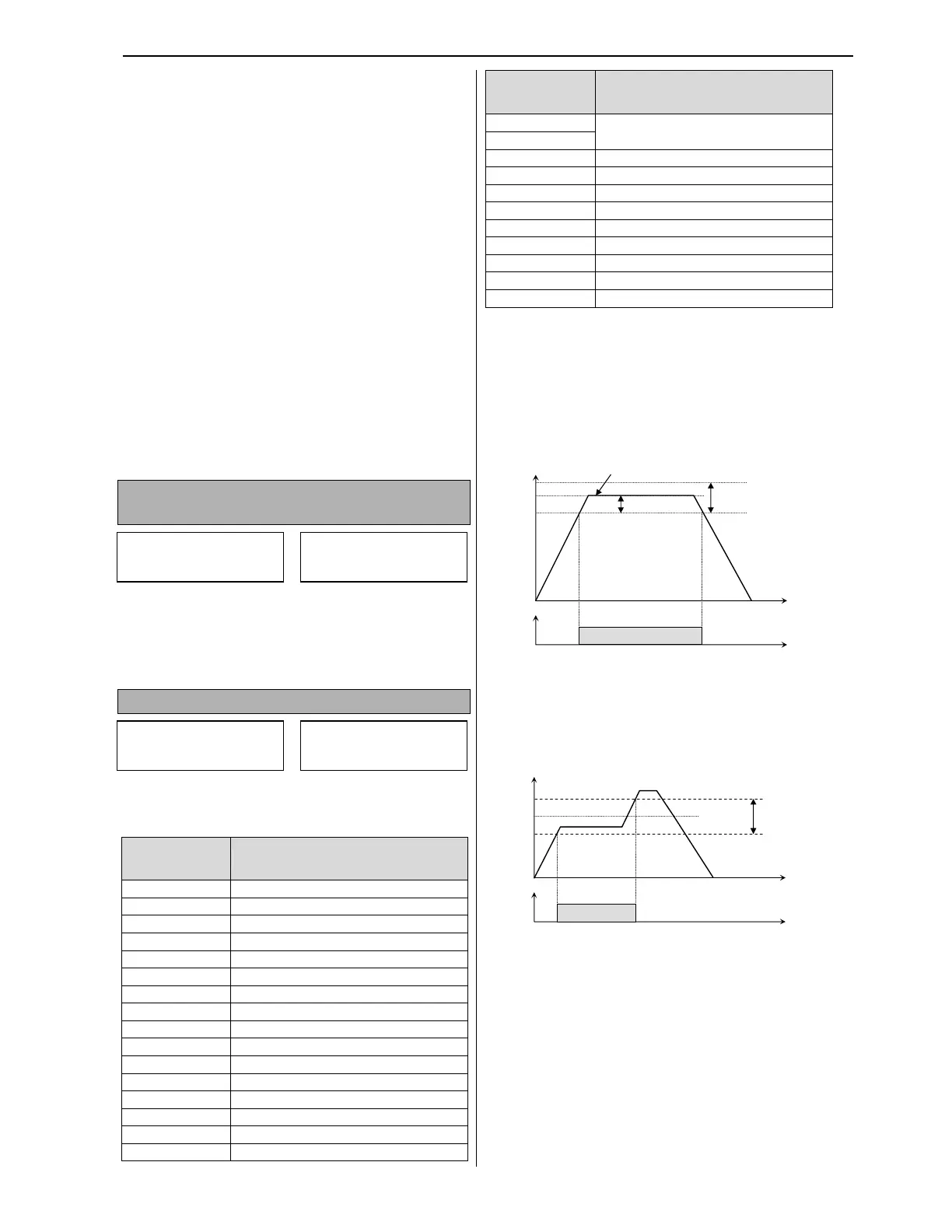

Chapter 6 - Parameter Description
6-28
For example: if I/O-71 is set to 50%, the maximum
analog output will be 5VDC at maximum output
frequency.
[Current]
S0 or S1 output provides 0-10VDC signal
corresponding to VFD output current from 0A to
VFD current rating.
[Voltage]
S0 or S1 output provides 0-10VDC signal
corresponding to VFD output voltage from 0V to
Maximum Voltage.
[kW]
S0 or S1 output provides 0-10VDC signal
corresponding to VFD output kW from 0kW to
Maximum VFD kW output rating.
[Ext.PID Out]
S0 or S1 output provides 0-10VDC signal
corresponding to VFD External PID output from 0
to 100%.
$)3/637+"2'! !<=&!
;!( ,
The FDT function allows VFD to activate AUX
relay set to FDT at predetermined frequency by
FDT-1, 2, 3 or 4 modes. Refer to I/O-76~79 for
detailed description.
$)30A35+- %?A/' '
The digital programmable AUX relay can be set to
any available function from below table.
Setting Range Description
None Relay Output is disabled
FDT-1 Output frequency at Reference target
FDT-2 Output frequency at FDT freq.
FDT-3 Output Frequency within FDT range
FDT-4 Output frequency above FDT Freq.
FDT-5 Output frequency below FDT Freq.
OL Motor Overloaded
IOL VFD overloaded
Stall Motor Stalled
OV Over voltage
LV Low voltage
OH VFD overheated
Lost Command Lost command indication
Run VFD is in run mode
Stop VFD is in stop mode
Steady VFD speed is steady
Setting Range Description
INV line
VFD- Bypass outputs
COMM line
SSearch Speed search mode is ON
Ready VFD is ready
MMC Used for MMC operation
Local Local Mode is ON
Remote Remote Mode is ON
Pipe Broken Pipe Broken Fault is ON
Damper Relay is closed to open damper
Lubrication Relay is closed to lubricate pump
Level Detect Level Detection is triggered
[FDT-1]
If any AUX relay is set to FDT-1 and VFD
accelerates or decelerates, the AUX relay will be
closed and stay closed only if difference between
speed reference and output frequency is less than
[I/O-75]/2.
[FDT-2]
If any AUX relay is set to FDT-2 and VFD
accelerates or decelerates, the AUX relay will be
closed while the speed reference and output
frequency are within I/O-75 centered on I/O-74.
[FDT-3]
The selected AUX relay will be closed when the
output frequency during acceleration or
deceleration is within I/O-75 FDT bandwidth
centered on I/O-74. If output frequency is outside
FDT bandwidth, AUX relay is open.
AUX
Relay
ON
Output Frequency
Time
I/O-75/2
I/O-75
I/O-74
I/O
FDT Freq
74 1.00 Hz
I/O
FDT Band
75 1.00 Hz
I/O
Aux Relay1
76 Run
I/O
Aux Relay4
79 FDT-4
AUX Relay ON
Output Frequency
Time
I/O-75
I/O-75/ 2
