H) bbbbbb: Display the current position of injection, unit:mm.
I) CCCCC: Display the current position of ejector, unit:mm.
J) cccccc: Display the current position of opticalmeter at injection, unit: P.
K) III: Display the practical output when proportional velocity values work.
L) JJJ: Display the practical output when proportional pressure values work.
M) KKK: Display the practical output when mold-closing proportion velocity value
work.

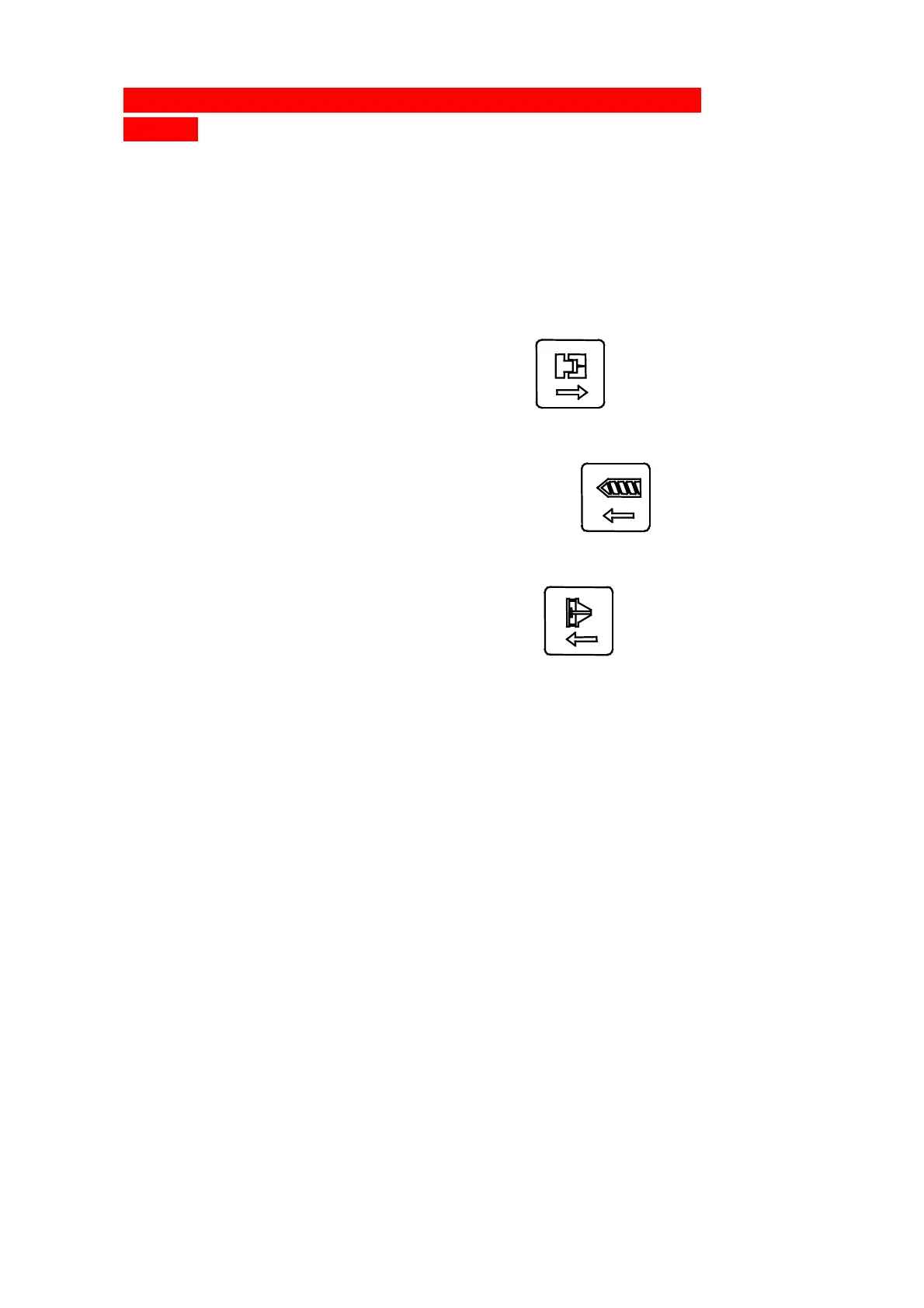

2.45.2.This machine used opticalmeter at mold, injection and ejector when to exchange
new opticalmeter, that restoring has to be done as follows:
A) In menu 47 while displaying
“
mold
”
, press
to display
“
Restoring
”
until
the mold not moving, next loose the button, and then restoring of optical meter
is finished.
B) In menu 47 while displaying
“
injection
”
, press
to display
“
restoring
”
until the injection is finished for one second, then restoring of injection has
been done.
C) In menu 47 while displaying
“
ejector
”
, press
to display
“
restoring
”
until
the ejector backward is finished, about one second later, opticalmeter display
value will be change to
“
DDDDD
”
, now the
“
return completed
”
will appear and the
operation is finished.
