J) QQ : Booster cylinder decelerated mold-opening pressure setup.
K) UU : Booster cylinder decelerated mold-opening counter-balance pressure setup.
L) RRR.R : Booster cylinder decelerated mold-opening end-position setup.
M) hhh.h : Display cylinder mold-opening end-position setup.
The descending order of the requirement for booster cylinder mold-opening switch position
.
Setup is
:
RRR.R
mm
≧
OOO.Omm
≧
aaaa.a
mm
≧
LLLLLp
≧
IIIIIp
。

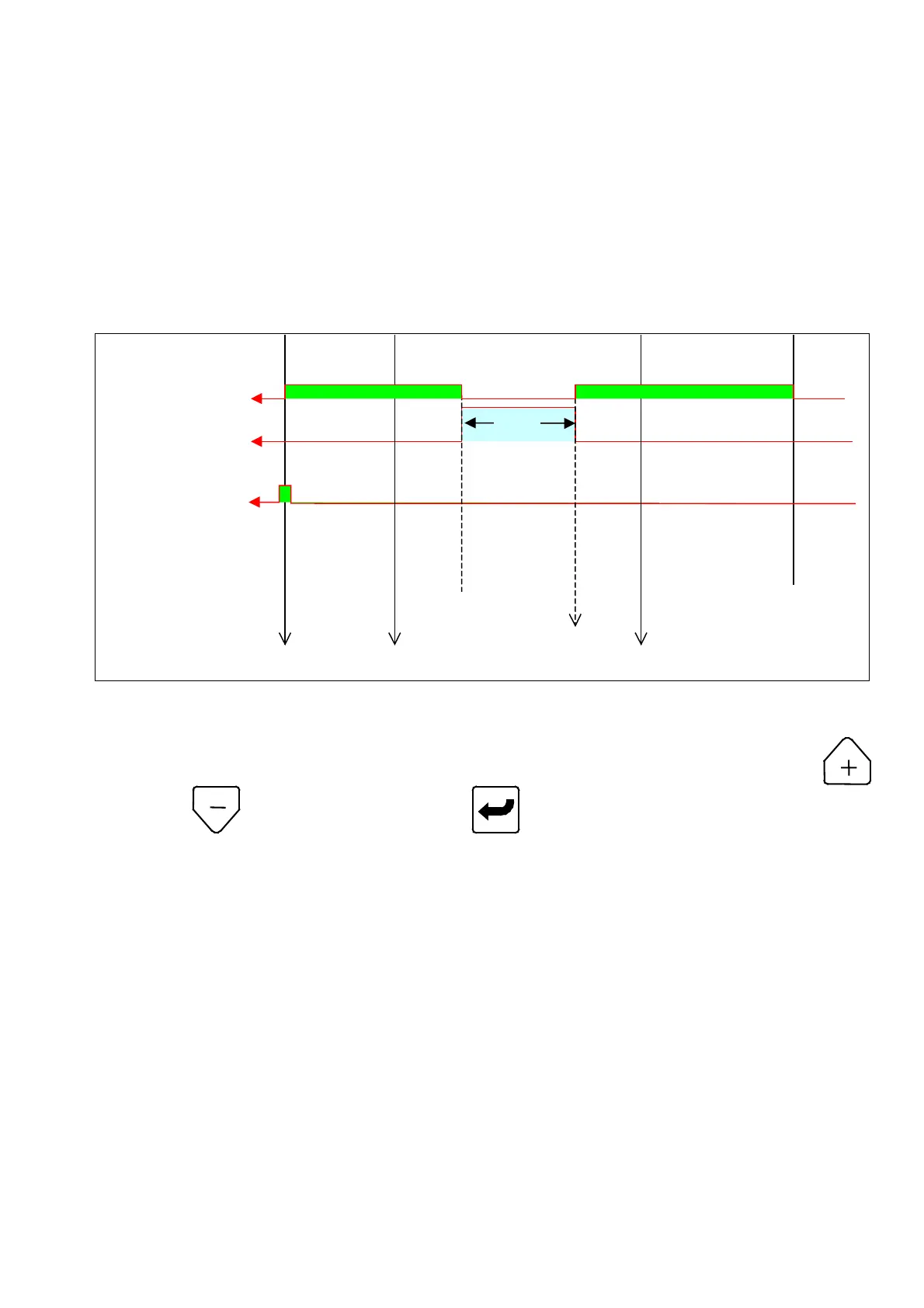

2.5.1.4. Sequence Diagram of Booster Cylinder Mold-Opening
Mold-opening distance decelerate fast-speed mold-opening slow-speed
Mold-opening mold-opening
Special mold mold-opening
Mold-opening distance
Mold-opening confirm
Speed setup
Pressure setup
Counter-balance pressure setup aaaa.a
End-position setup RRR.R OOO.O LLLLL
ddd.d
JJ
KK
SS
MM
NN
TT
bb
cc
TT
MM
NN
TT
PP
QQ
UU
2.5.1.5. Special Function Setup
The setup for function selection
:
move the cursor to “
ｊ
” “
ｋ
” “
ｌ
”
，
and press either
or
for “open “or “close “
.
Press to finish the correction.
Code descriptions for function selection are as follows:
A) ｊ:Function selection for booster cylinder fast mold-opening.
B) ｋ:Space function selection.
C) ｌ:Function selection for mold opening and closing; mid-mold operation parameter
settings are as follows:
C.a) WWWW.W: Mold-closing start-position setup for booster cylinder special mold.
C.b) ZZZ.Z: The moving distance setup for mold closing of booster cylinder
special mold.
C.c) XX: Mold-closing speed setup for booster cylinder special mold.
C.d) YY: Mold-closing pressure setup for booster cylinder special mold.
C.e) aaaa.a:Mold-opening start-position setup for booster cylinder special mold.
C.f) ddd.d :The moving distance setup for mold-opening of booster cylinder
special mold.
C.g) bb :Mold-opening speed setup for booster cylinder special mold.
