CDC-2000
操作手冊
Operational Manual

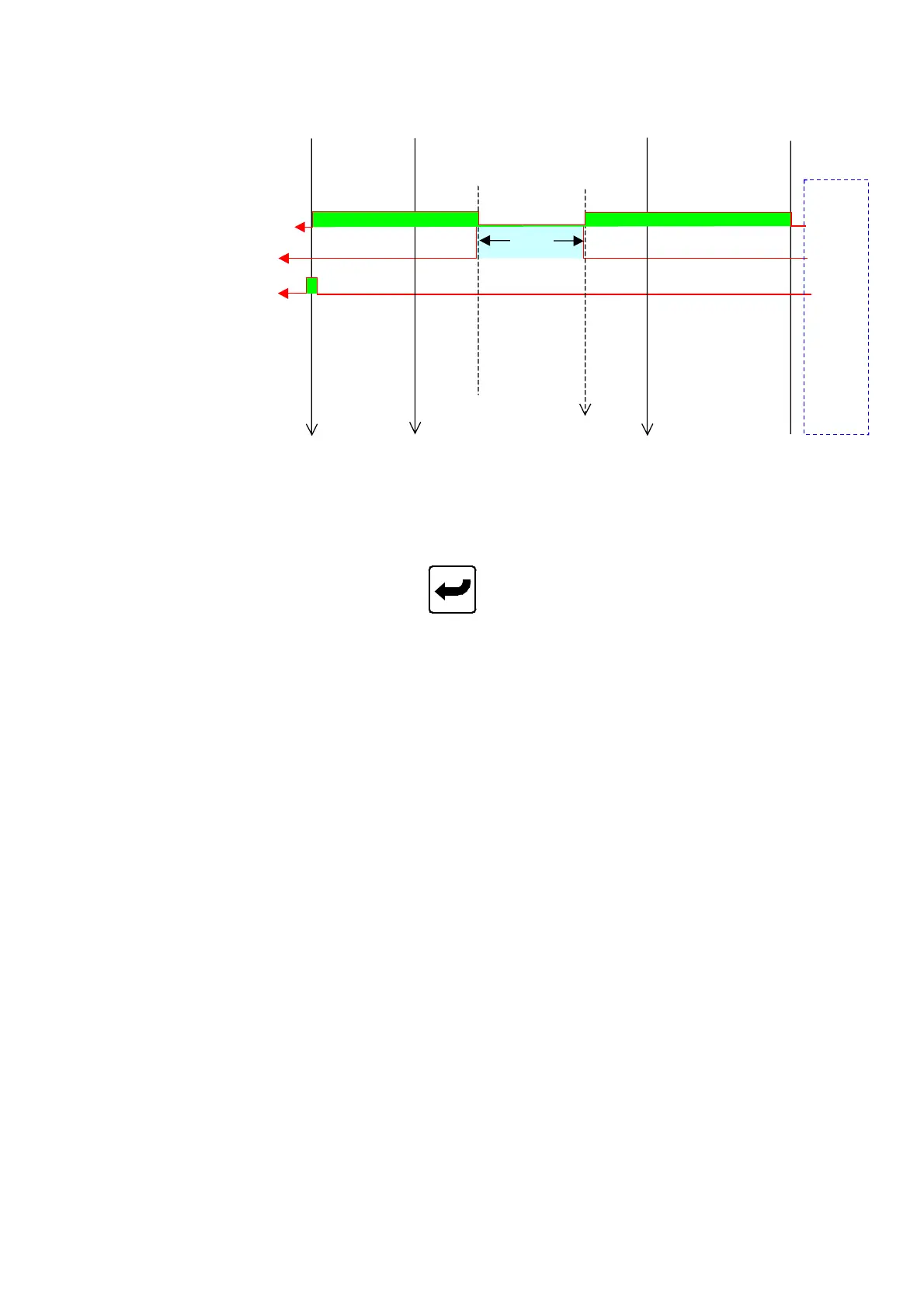

2.5.3.4. Sequence Diagram of Fast Cylinder Mold-Opening
Fast operational distance decelerated fast mold-opening slow mold-opening
Mold-opening
Special mold distance
End-position mold-opening
Velocity parameter
Pressure parameter
Counter-balance pressure parameter
Special mold start-position aaaa.a
End-position setup RRR.R OOO.O LLLLL
ddd.d
JJ
KK
SS
MM
NN
TT
bb
cc
TT
MM
NN
TT
PP
QQ
UU
Split nuts
of details,
p
lease
refer to
chart (04)
The se
q
uence dia
g
ram of fast-s
p
eed mol
d
-o
p
enin
g
.
2.5.3.5. Move cursor to the desired parameter for mold-opening, Key in desired digits
through digit keys and press
to complete a correction．
Code description for Menu (03) the fast cylinder mold-opening are as follows:
A) JJ :Fast cylinder slow mold-opening speed setup.
B) KK : Fast cylinder slow mold-opening pressure setup.
C) SS : Fast cylinder slow mold-opening counter-balance pressure setup.
D) LLLLL : Fast cylinder slow mold-opening end-position setup.
E) MM : Fast cylinder fast mold-opening speed setup.
F) NN : Fast cylinder fast mold-opening pressure setup.
G) TT : Fast cylinder fast mold-opening counter-balance pressure setup.
H) OOO.O : Fast cylinder fast mold-opening end-position setup.
I) PP : Fast cylinder decelerated mold-opening speed setup.
J) QQ : Fast cylinder decelerated mold-opening pressure setup.
K) UU : Fast cylinder decelerated mold-opening counter-balance pressure
setup.
L) RRR.R : fast cylinder decelerated mold-opening end-position setup.
M) hhh.h : fast cylinder mold-opening time setup.
N) The descending order of the requirement for high-speed cylinder mold-opening
switch position setup is : RRR.Rmm ≧ OOO.Omm ≧aaaa.amm ≧ LLLLLp ≧ IIIIIp.
2.5.3.6. Mode-Opening Operational Descriptions:
There are three phases for fast-speed cylinder mold-opening:
A) Fast-speed cylinder fast mold-opening as the 2
nd
step to quickly opens the molds.
The parameter
“
KK
”
for pressure is to be set above 70%.
04/08/13
27
