2.11.2 Mold Thickness and Clamping Force Setup for Direct Hydraulic Machine.

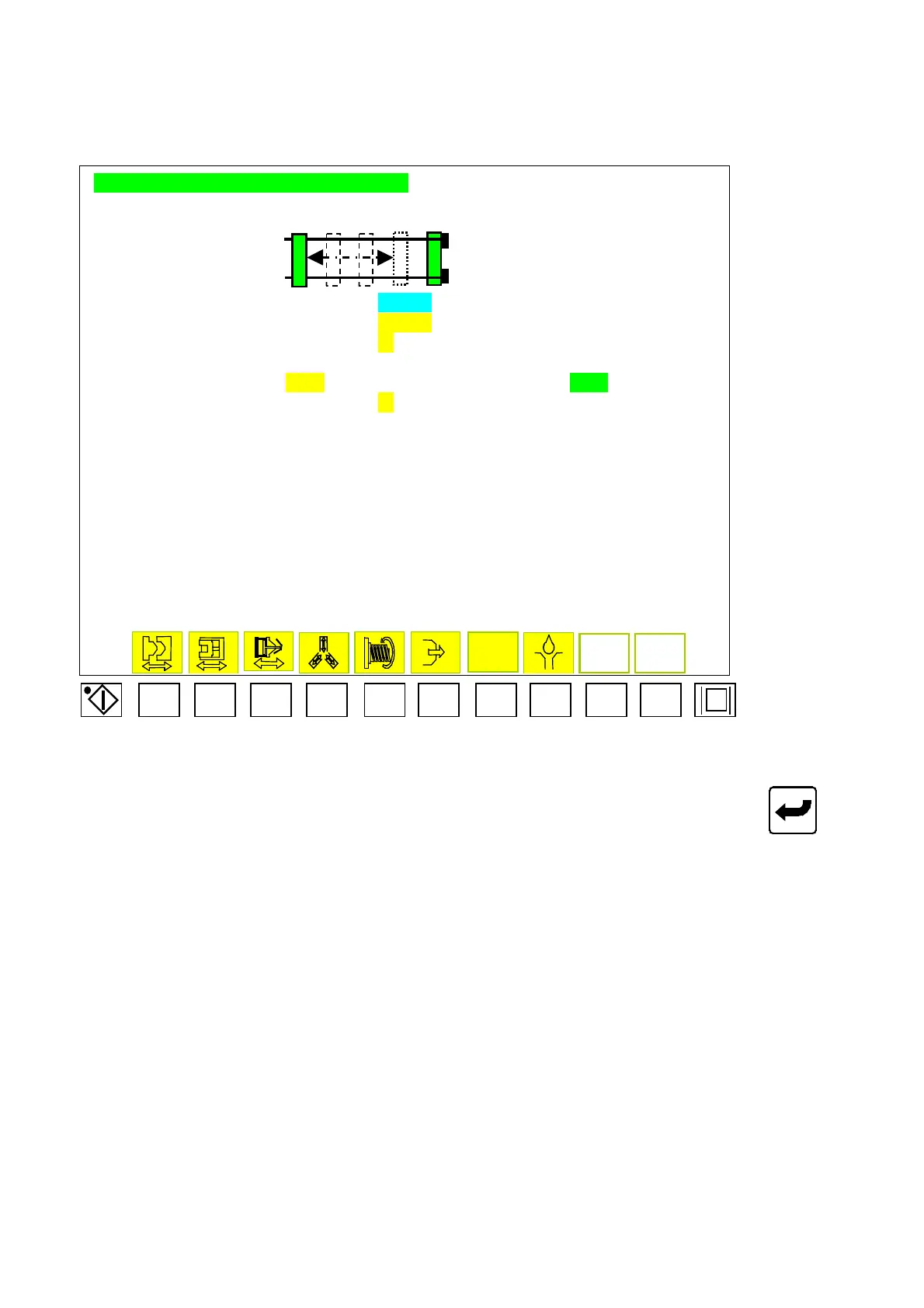

MOLD THICKNESS ADJUSTMENT SETTING
AAAAAAAAAAAAAAAA
BBBBBBBB CCCCCCCC
EXIST MOLD HEIGHT :
PPPP.Pmm
INPUT MOLD THICKNESS : DDDD.Dmm
AUTO. MOLD THICKNESS ADJUSTMENT :
Ｌ
CLAMPING FORCE SETTING
EEEEE TONS LOW-PR. CLAMPING POS. AT KKKKKp
AUTO. CLAMPING FORCE SETTING :
Ｍ
Menu 09
F1 F2 F3 F4 F5 F6 F7 F8 F9 F10
2.11.2.1 Move cursor to set parameter, key in desired digits and press to
complete a correction. Code descriptions for Menu (09) are listed below:
A) AAAAAAAAAAAAAAA: not used.
B) BBBBBBBB: not used.
C) CCCCCCCC: not used.
D) PPPP.P: not used.
E) DDDD.D: not used.
F) Ｌ : not used.
G) EEEEE: not used.
H) KKKKK: not used.
I) Ｍ : not used.
2.11.2.2 Manual Clamping Method:
In Menu (09), mold is hung into the mechanism, use mold alignment ring and machine mold
04/08/13
53
