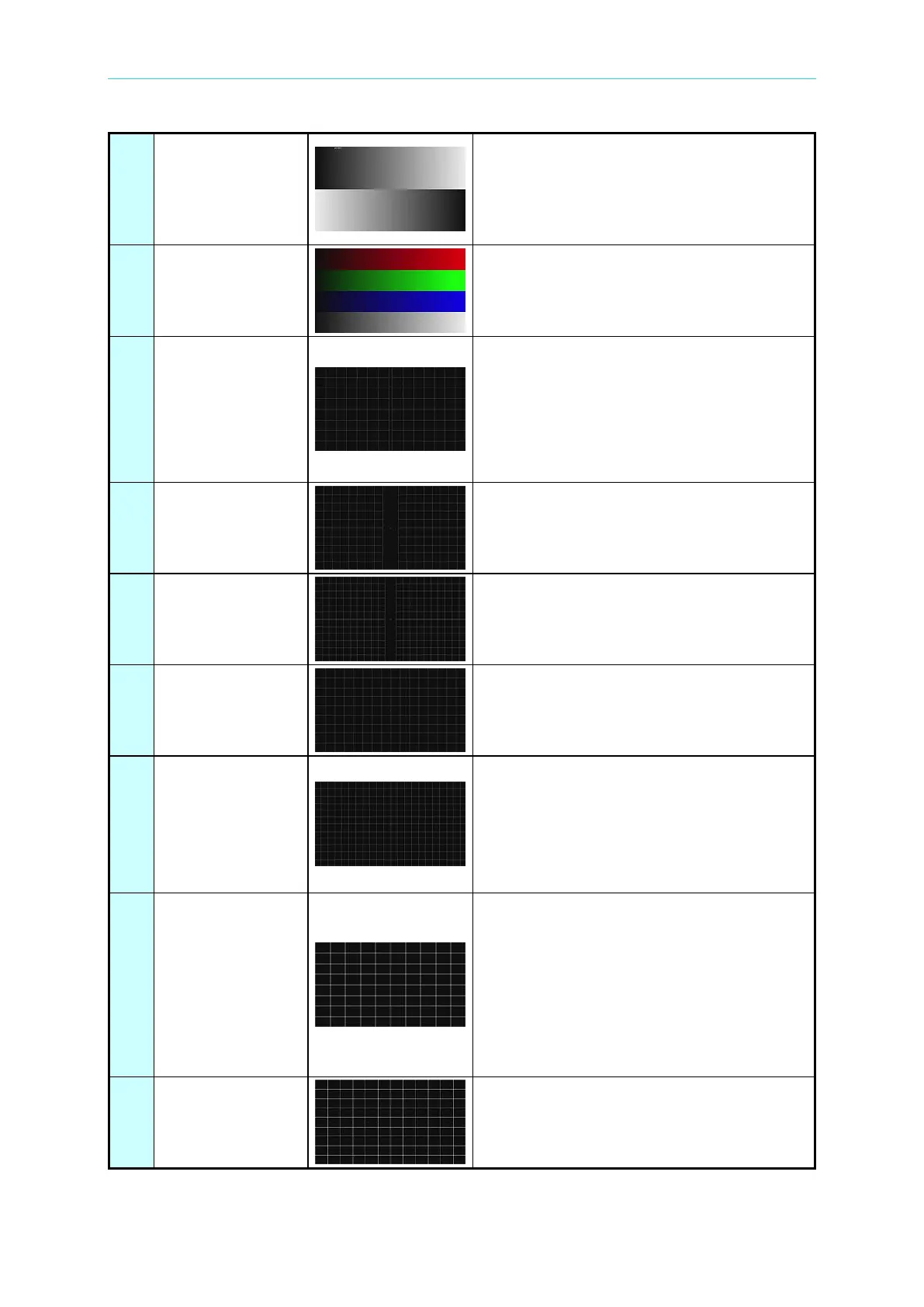

Appendix B Default Patterns List
B-17
49
256 GRAYS
It is the same as pattern # 47 except it has
255 grayscales.
*Note: The weakest luminance is 0/4095,
and the strongest is 4095/4095. The
difference of every scale is 4/4095.
50
64GRAYS RGBW
The R, G, B, W color scales are arranged
from top to bottom. Each color has 64
scales, and the difference of every scale is
16/4095.
51
X-HATCH/V8
It is a crosshatch pattern with 8 vertical grids.
The remainders are placed in the center.
The number of horizontal grids is
automatically calculated by the system, and
this makes all grids to be squares except the
remainders. Moreover, it has a symbol “” in
the central point.
52
X-HATCH/V10
It is the same as pattern #51 except it has 10
vertical grids.
53
X-HATCH/V12
It is the same as pattern #51 except it has 12
vertical grids.
54
X-HATCH/V9E
It is the same as pattern #51 except it has 9
vertical grids with remainders on the two
sides.
55
X-HATCH/V12E
It is the same as pattern #51 except it has 12
vertical grids with remainders on the two
sides.
56
LINEARITY/8
This pattern looks like a crosshatch with 10
horizontal grids and 8 vertical grids. If there
are remainders, the highlighted part will be
placed on the right and lower sides. If there
are no remainders, the frame line is 1-pixel
wide, and the internal grid line is 2-pixel
wide. The grids are drawn repeatedly using
rectangles (which is suitable for adjusting the
automated test equipment.)
57
LINEARITY/9
It is the same as pattern # 56 except it has
12 horizontal grids with 9 vertical grids.
