Chroma 2238 User Manual

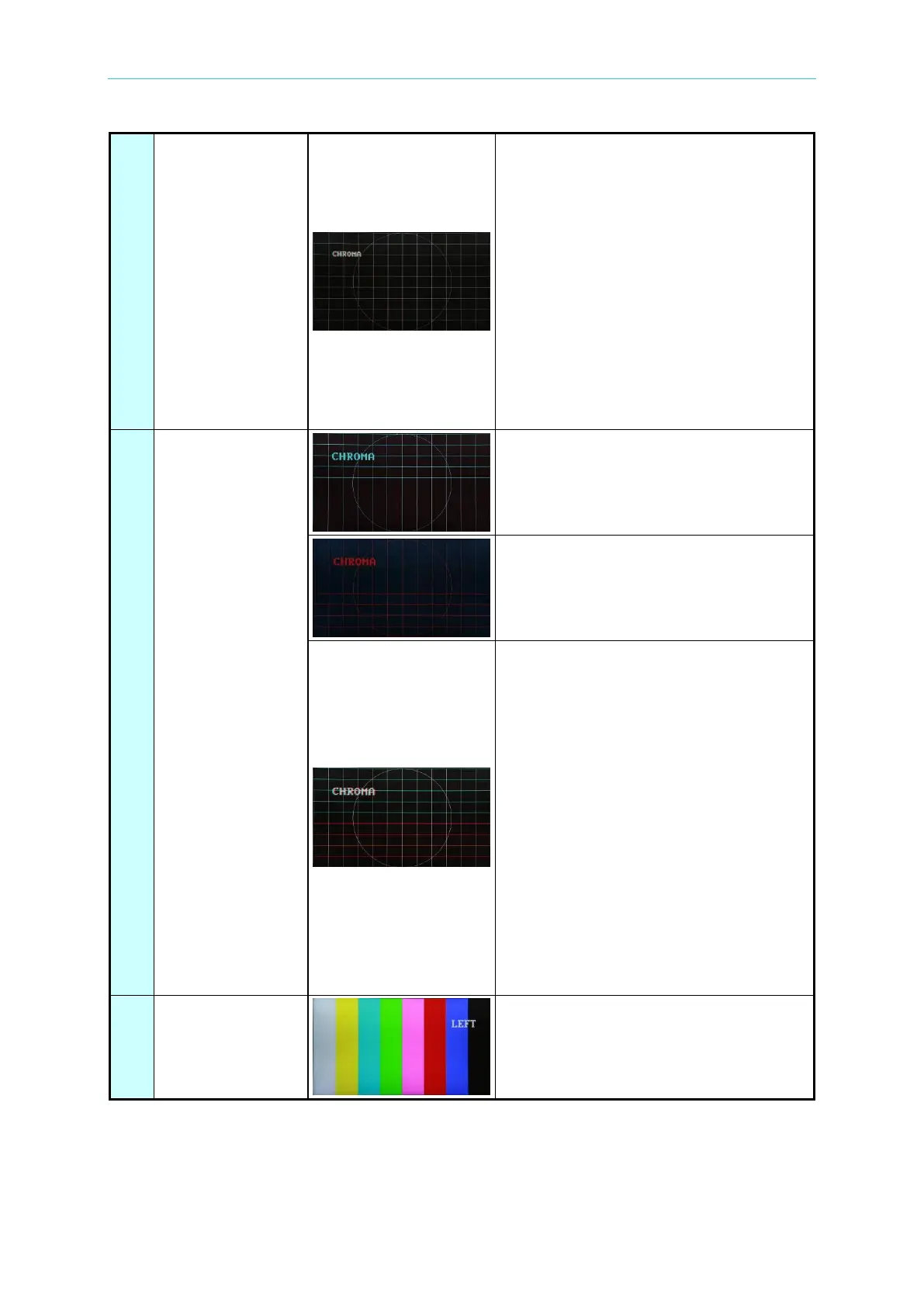

Appendix B Default Patterns List
B-47
When a 3D image is composed, the
white geometric figure can be viewed
without using 3D glasses. It can inspect
if the horizontal/vertical position is
correct after the 3D left and right
patterns are composed on the display.
The word “CHROMA” is interlaced with
left and right eyes. Use 3D glasses to
see the three-dimensional effect and
confirm if 3D mode is activated on TV.
 Note: It is a dedicated test pattern for
Side by Side-Half-Odd/Even (Quincunx
Matrix) that can only be outputted when
3D TYPE is set to this mode.
908
3D.SUB-TBOE
The pattern for left eye is a cyan
geometric figure with a word “CHROMA”
in it.
The pattern for right eye is a red
geometric figure with a word “CHROMA”
in it.
When a 3D image is composed, the
cyan horizontal lines on the upper half
and the red horizontal lines on the lower
half as well as the rest white lines can
be viewed without using 3D glasses. It
can inspect if the horizontal/vertical
position is correct after the 3D left and
right patterns are composed on the
display. The text “CHROMA” is
interlaced with left and right eyes. Use
3D glasses to see the
three-dimensional effect and confirm if
3D mode is activated on TV.
 Note: It is a dedicated test pattern for
Side by Top/Bottom-Odd/Even that can
only be outputted when 3D TYPE is set
to this mode.
909
3D.HCOLORBAR
The pattern for left eye contains
horizontal color bars. The chromaticity
and brightness are the same as the
pattern for right eye.
