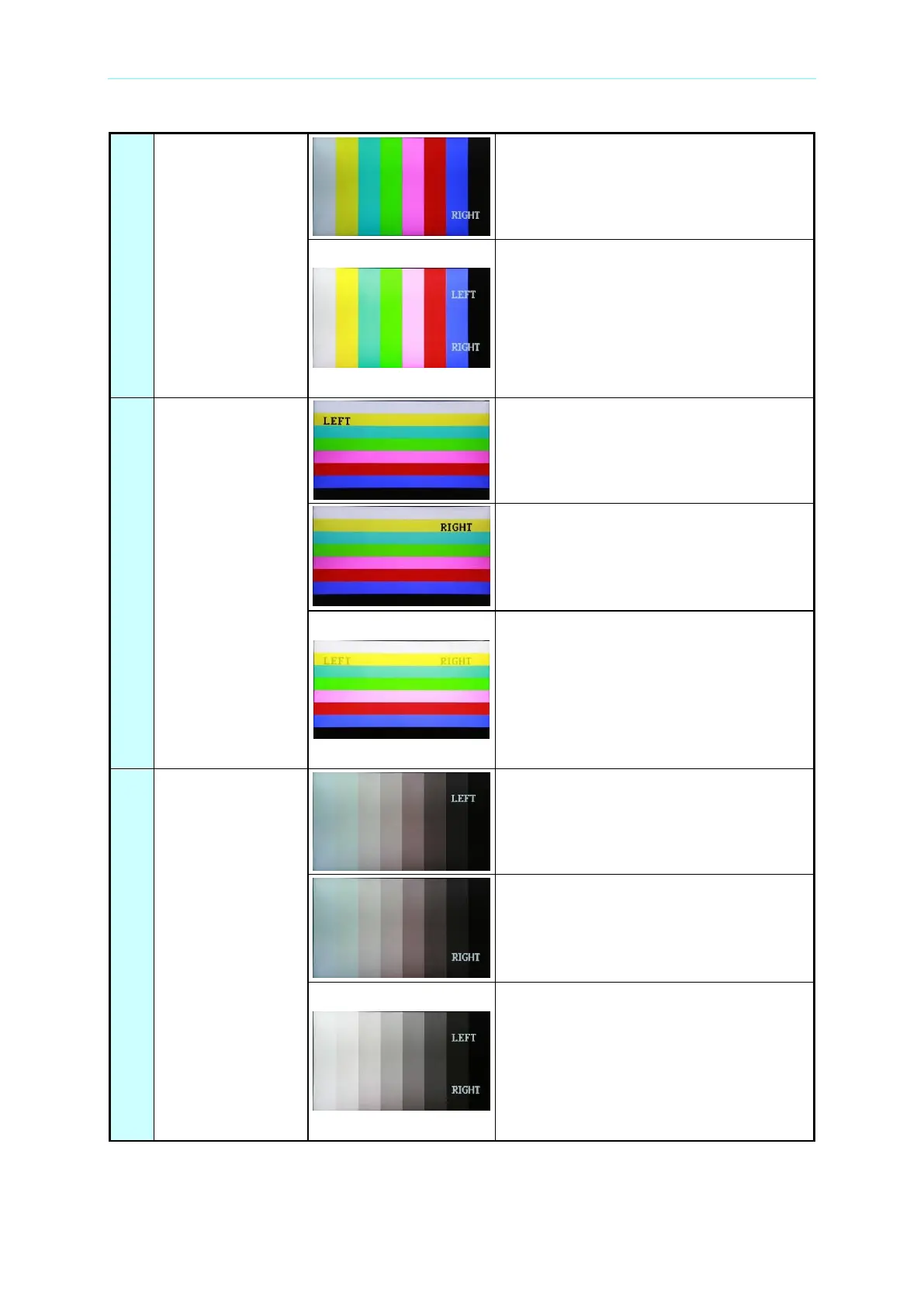

The pattern for right eye contains
horizontal color bars. The chromaticity
and brightness are the same as the
pattern for left eye.
When a 3D image is composed, the
horizontal color bars and the text “LEFT”
and “RIGHT” can be viewed without using
3D glasses. They provide a quick
inspection to check if the left/right eye
images are existed. The color bar
provides color display for testing in 3D
mode.
910
3D.VCOLORBAR
The pattern for left eye contains vertical
color bars. The chromaticity and
brightness are the same as the pattern for
right eye.
The pattern for right eye contains
vertical color bars. The chromaticity and
brightness are the same as the pattern
for left eye.
When a 3D image is composed, the
vertical color bars and the text “LEFT”
and “RIGHT” can be viewed without
using 3D glasses. They provide a quick
inspection to check if the left/right eye
images are existed. The color bar
provides color display for testing in 3D
mode.
911
3D.GRAYBAR
The pattern for left eye is a horizontal
8-grayscale (100~0%). The brightness
is the same as the pattern for right eye.
The pattern for right eye is a horizontal
8-grayscale (100~0%). The brightness is
the same as the pattern for left eye.
When a 3D image is composed, the
horizontal 8-grayscale can be viewed
without using 3D glasses. The text
“LEFT” and “RIGHT” provide a quick
inspection to check if the left/right eye
images are existed. The horizontal
8-grayscale can test grayscale continuity
in 3D mode.
