Video Pattern Generator 2238 User’s Manual
B-50

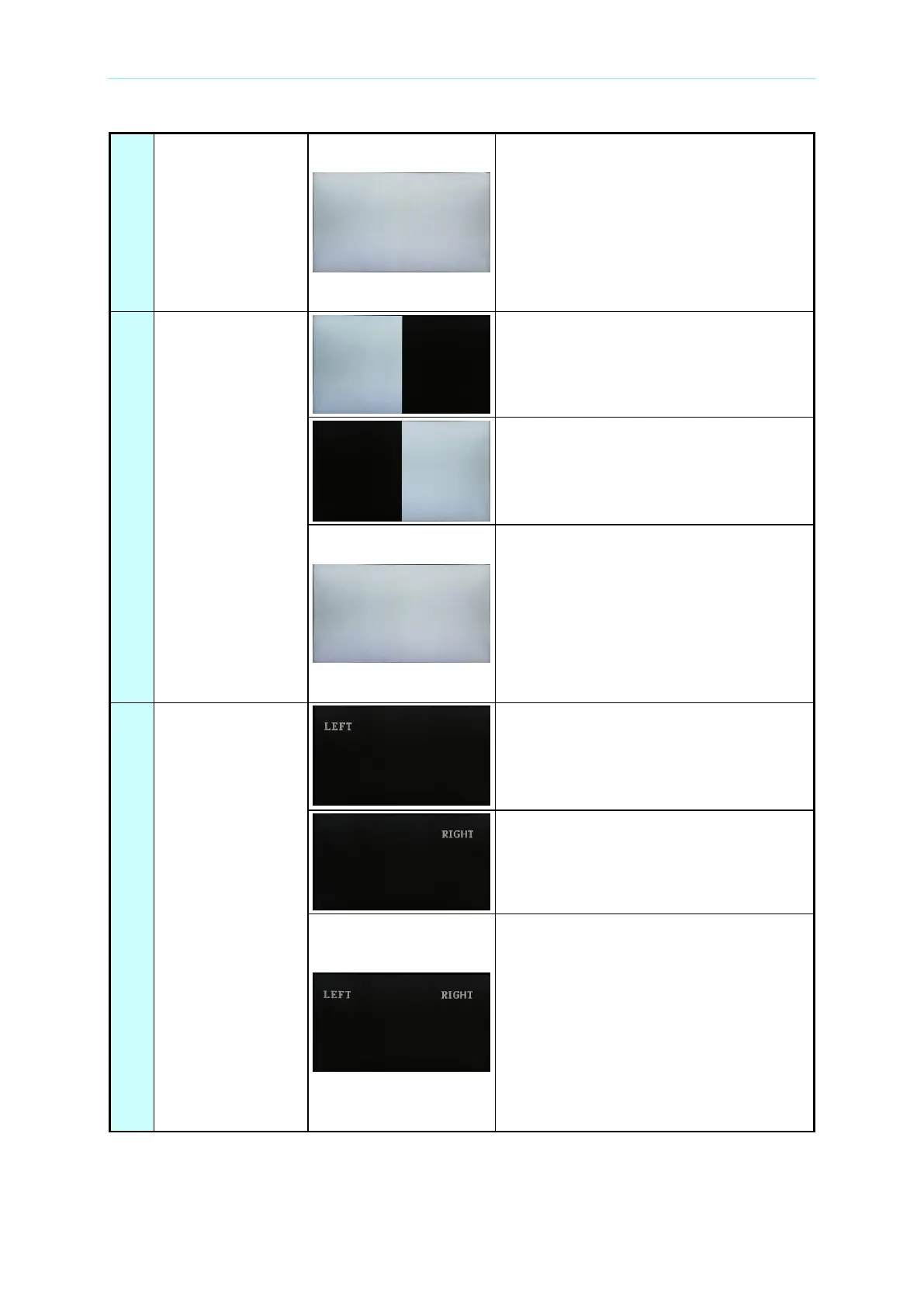

When a 3D image is composed, the white
pattern can be viewed without using 3D
glasses. The junction area can test if the
3D composition horizontal position is
correct. The left and right patterns in
black and white with Chroma 3D optical
measurement equipment can meet the
automatic 3D crosstalk measurement
function.
915
3D.1/2-WB
The pattern for left eye is white for the left
half and black for the right half. It is a
reversed pattern for right eye
The pattern for right eye is black for the
left half and white for the right half. It is a
reversed pattern for left eye.
When a 3D image is composed, the
white pattern can be viewed without
using 3D glasses. The junction area can
test if the 3D composition horizontal
position is correct. The left and right
patterns in black and white with Chroma
3D optical measurement equipment can
meet the automatic 3D crosstalk
measurement function.
916
3D.BLACK
The pattern for left eye is a black screen
with white text.
The pattern for right eye is a black
screen with white text.
When a 3D image is composed, it can
inspect if the left and right eye shaded
switching of 3D glasses is correct. The
text “LEFT” and “RIGHT” provide a quick
inspection to check if the left/right eye
images are existed. The black
background with white text can test the
black and white contrast and the text
presentation. The all black pattern can
check the black screen presentation in 3D
mode.
