CHROMATE

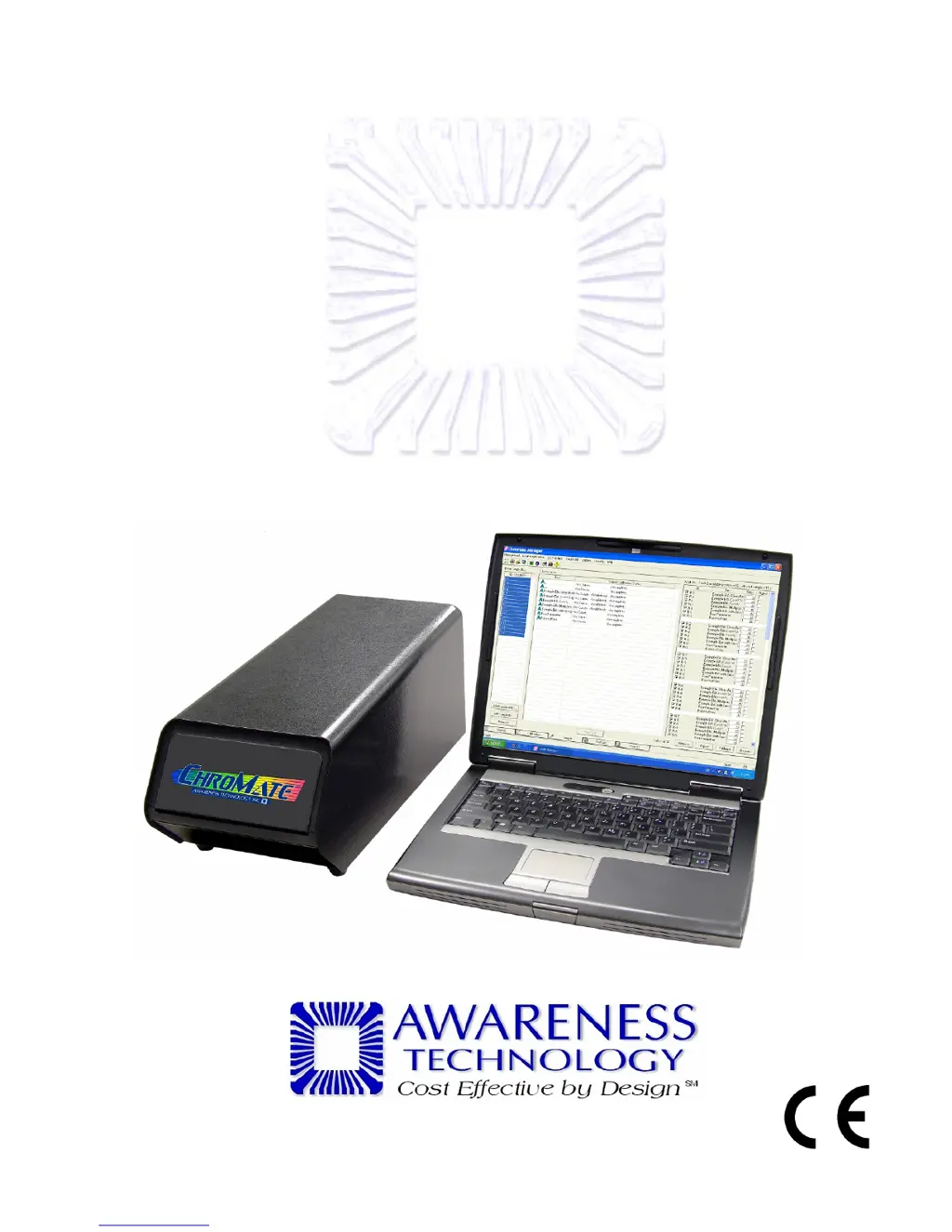

MODEL 4300 MICROPLATE READER
O
O
P
P
E
E
R
R
A
A
T
T
O
O
R
R
’
’
S
S
M
M
A
A
N
N
U
U
A
A
L
L
©Copyright 2008 Awareness Technology Inc. Doc. 4300 10/2008 Rev. E
™

Table of Contents

Questions and Answers

  • K
    Kiara ClarkAug 2, 2025
    What to do if my Chromate 4300 Laboratory Equipment shows an invalid number of steps, code, or ID?
    • R
      rebeccanguyenAug 3, 2025
      If your Chromate Laboratory Equipment displays an error indicating an invalid number of steps, code, channel, serial ID, lamp timeout or warm time, ensure that the values you entered are within the allowed ranges: the number of steps should be between 0 and 1200, the channel number should be between 1 and 8, the serial ID should be a number between 1 and 99999, the lamp timeout should be between 120 and 1800, and the lamp warm time should be between 0 and 60. Also, make sure you entered a valid code.
  • S
    steven83Aug 9, 2025
    How to fix 'Invalid Command' errors on Chromate Laboratory Equipment?
    • R
      Rebecca ThompsonAug 9, 2025
      If you encounter errors such as 'Invalid Command', 'Invalid Filter Number', 'Invalid Row Number', or 'Invalid Device Number' on your Chromate Laboratory Equipment, verify that the command is correctly spelled and valid. Ensure that the filter number is within the range of 0-3 or 0-5, and the row number is within the range of 1-12. Confirm that the device number is within the range of 0-3. If problems persist, contact Customer Service.
  • B
    Brandon TrujilloAug 14, 2025
    What to do if Chromate Laboratory Equipment shows an invalid wiper or calibration value?
    • B
      Brian PriceAug 14, 2025
      If your Chromate Laboratory Equipment displays an error indicating an invalid wiper, calibration, offset, or gain value, make sure that the wiper number is within the range of 0-3, the value is within the range of 20-110, the offset value is within the range of 5-250, and the gain value is within the range of 5-250. If problems persist, contact Customer Service.
  • W
    William ThompsonAug 20, 2025
    Why does my Chromate 4300 Laboratory Equipment show 'extra movement needed' or 'plate did not return home'?
    • J
      jennifer61Aug 20, 2025
      If your Chromate Laboratory Equipment displays the message 'Extra movement needed at home' or indicates that the plate did not return home, this suggests the assumed position did not return the carrier to its home position. Also, if mech tests had errors, this means that the door in/out test, plate incremental positioning tests, or plate drift check had errors. In such cases, check the mechanism movement.
  • J
    John HallAug 27, 2025
    What to do if 'InchesPerStep not in range' error appears on Chromate Laboratory Equipment?
    • J
      Jill BradshawAug 27, 2025
      If your Chromate Laboratory Equipment displays the error 'InchesPerStep not in range' or messages related to 'Pot' settings not acknowledging or returning incorrect values, rerun the FE() command and check the plate for sticking and the plate holes. If the problems persist, contact Customer Service.

Summary
