5�1�3�1�1�1�1�- Graphic view�

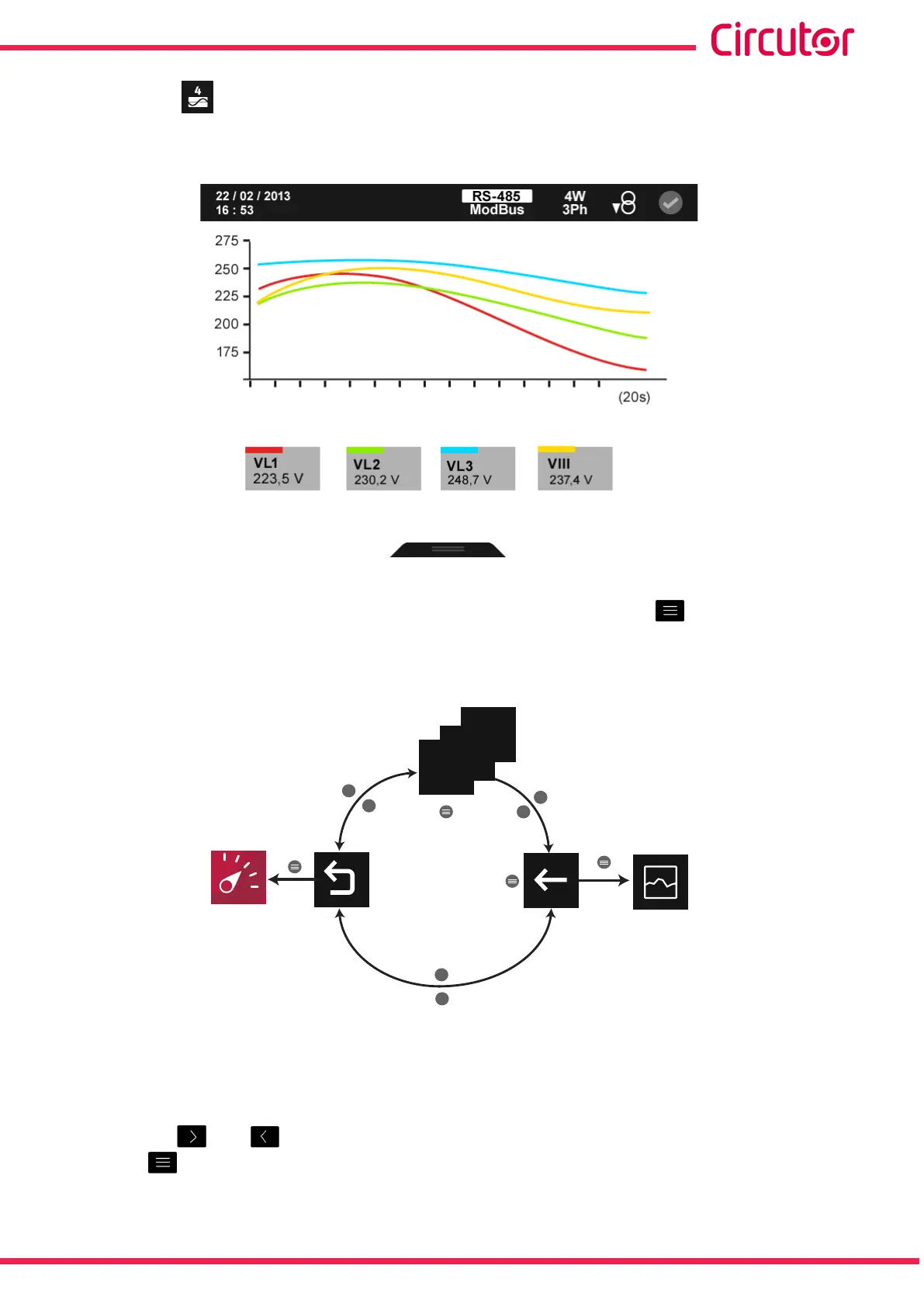

Figure 126 shows the graphical display screen .
Figure 126: Instantaneous parameters, graphical representation (displays 4 parameters)�
The menu in the lower area disappears after a few seconds. Press the key to display the
lower area again.
The lower area menu options are:
300s
>
>
>
<
<
<
varh
8
1
60s
20s
Back
Main
menu
Display time
Figure 127: Graphic view menu�
The display time (X-axis) of the chart can be 20, 60 or 300 seconds.
Note: The option selected is not displayed on the menu.
Use the keys and to browse the various parameters.
Press the key to display the lower area.
109
Instruction Manual
CVM-A1000 - CVM-A1500
