5�2�2�1�1�- Event wave shape�

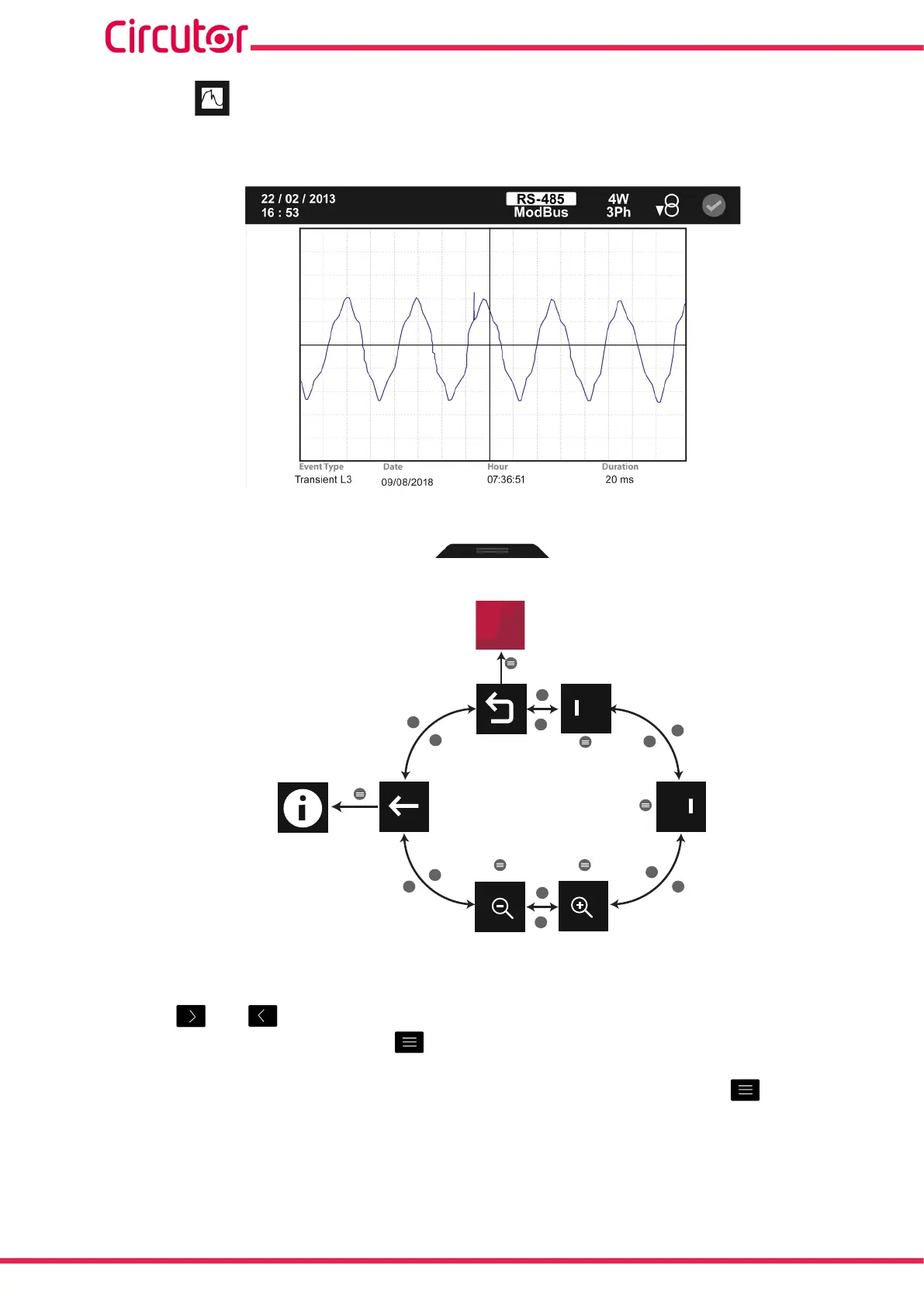

The screen shown in Figure 190 displays the wave shape of the selected transient.
Figure 190: Wave shape of the selected event�
>
>
>
>
>
<
<
< <
<
>
<
←
→
Q
Previous
Main
menu
Back
Next
Zoom In
Zoom Out
Figure 191: Wave shape display menu�
Use the and keys to select the different options.
To conrm the selection, press the key.
The menu in the bottom area disappears after a few seconds. Click on the key to display
the lower area again.
144
CVM-A1000 - CVM-A1500
Instruction Manual
