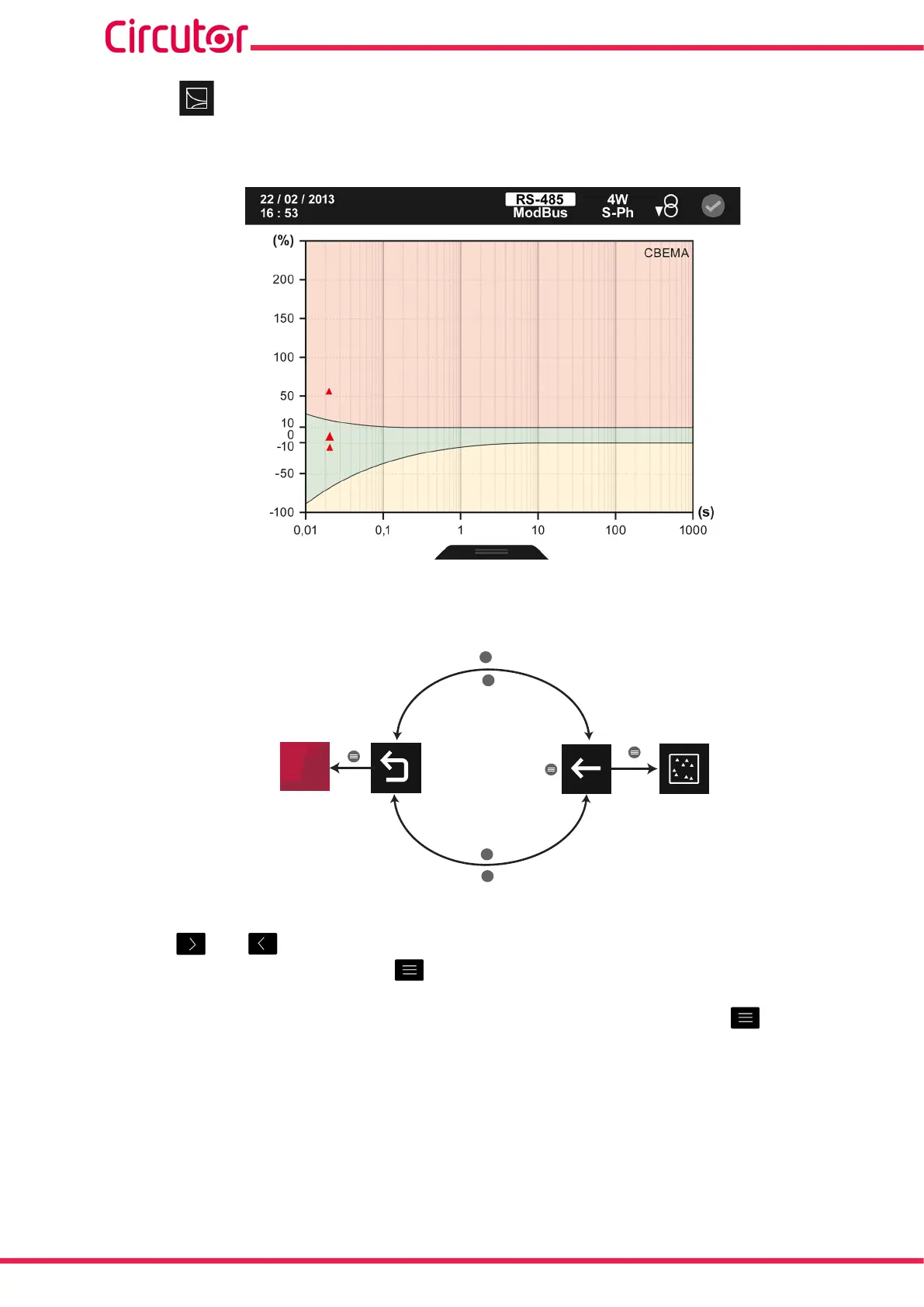

5�2�3�1�- CBEMA curve
The screen shown in Figure 194 displays the CBEMA curve of all events detected by the device.
Figure 194: CBEMA curve�
Each ▲ indicates an event detected by the device.
>
>
<
<
varh
Q
Back
Main
menu
Figure 195: CBEMA curve display menu�
Use the and keys to select the different options.
To conrm the selection, press the key.
The menu in the bottom area disappears after a few seconds. Click on the key to display
the lower area again.
Voltage variation (%Un)
146
CVM-A1000 - CVM-A1500
Instruction Manual
