When selecting the analogue outputs option, , you will view the screen in Figure 232, with
the conguration information for the outputs.

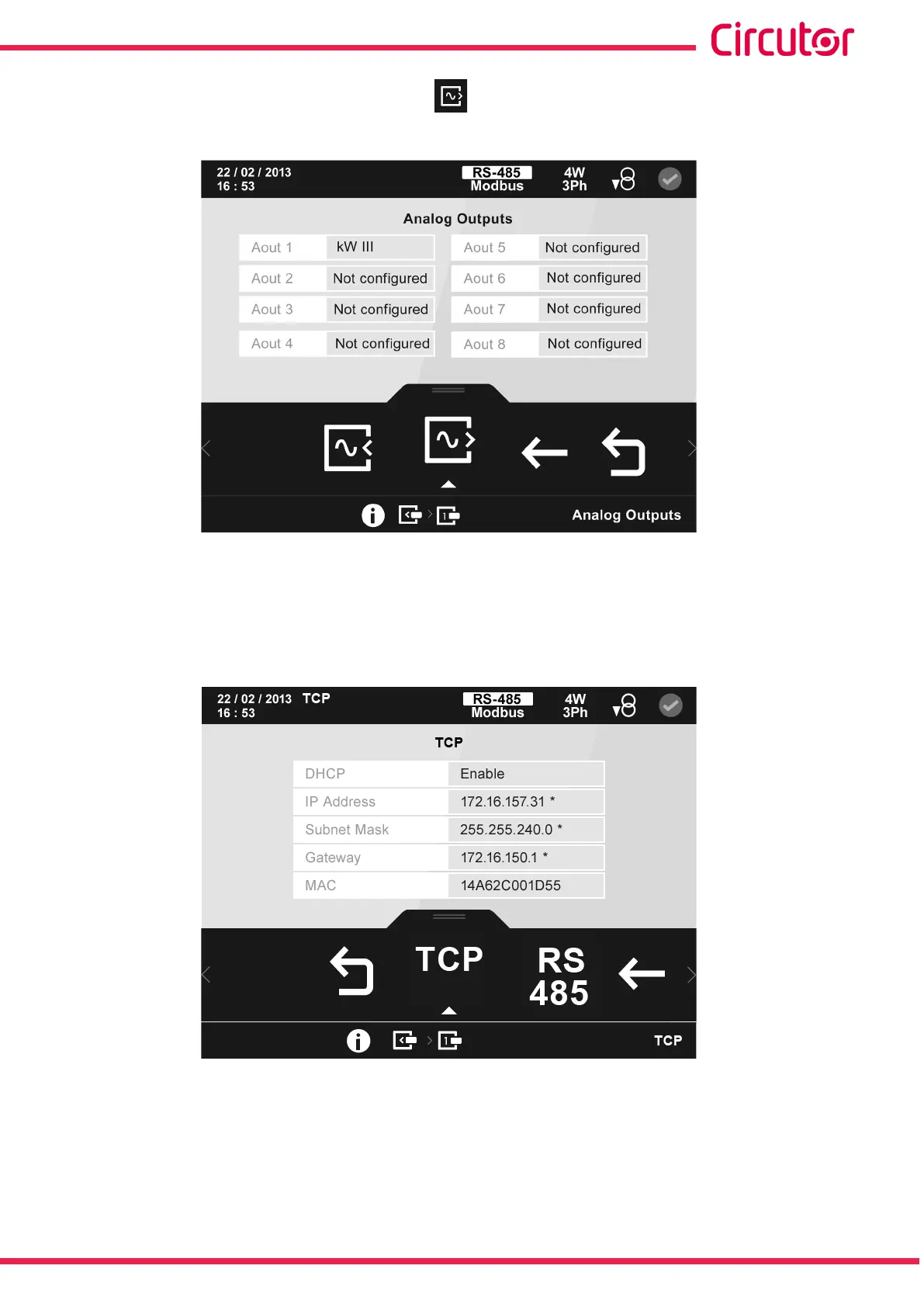

Figure 232: Analogue outputs information screen (Analogue Inputs/Outputs Module)�
5�6�3�4�- Modbus TCP (Bridge) communications expansion modules
The screen in Figure 233, is a screen that displays the information of the Modbus TCP
communications module.
Figure 233: Information screen of the Modbus TCP ( Bridge ) module (TCP communications)�
This screen shows how the TCP communications of the module are congured.
The following options appear in the lower area:
167
Instruction Manual
CVM-A1000 - CVM-A1500
