Circutor CVM-A1500 User Manual

>
<
>
>
>
>
>
<
<
<
<
<
1
>
<
>
<
Conguration
values
Previous
Next
Conrm
and save
Delete
parameter
Back
Main
menu
Delete
character

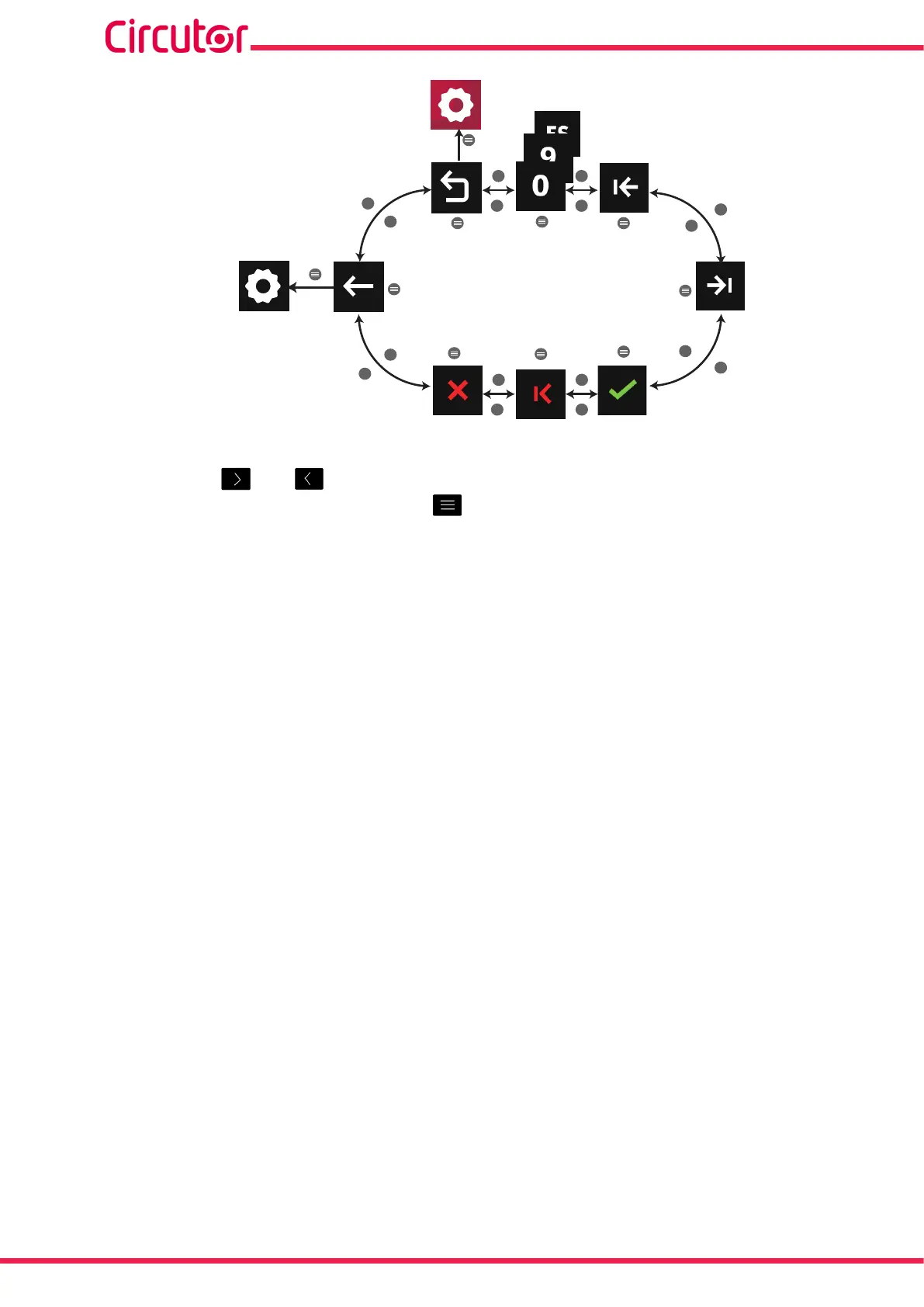

Figure 300: Setup menu: transistor digital outputs (impulse mode)�
Use the keys and to select the different options.
To conrm the selection, press the key .
● For programming the variable code which controls the transistor digital output use the Table
32 and Table 33.
To cancel the operation of a digital output, the 00 code must be programmed.
● When programming the energy meter factor:
The factor of the energy meter is the amount of energy per hour needed for generating a pulse,
in Wh.
● When programming the low period:
The low period is the time that the pulse is at its minimum value.
The programmed value is a multiple of 10 ms, i.e. when programming 1 the impulse will be at
its minimum value of 10 ms.
Maximum value: 65536.
Minimum value: 1.
● When programming the high period:
The high period is the time that the pulse is at its maximum value.
The programmed value is a multiple of 10 ms, i.e., when programming 1 the impulse will be at
its maximum value of 10 ms.
Maximum value: 65536.
Minimum value: 1.
210
CVM-A1000 - CVM-A1500
Instruction Manual
