5�7�19�1�- Conguration parameters, Modbus protocol.
When selecting the Modbus communications protocol, Figure 308, you can program the
following parameters:
 The peripheral number.
 The transmission speed, Baud Rate.
 The parity.
 The number of stop bits.

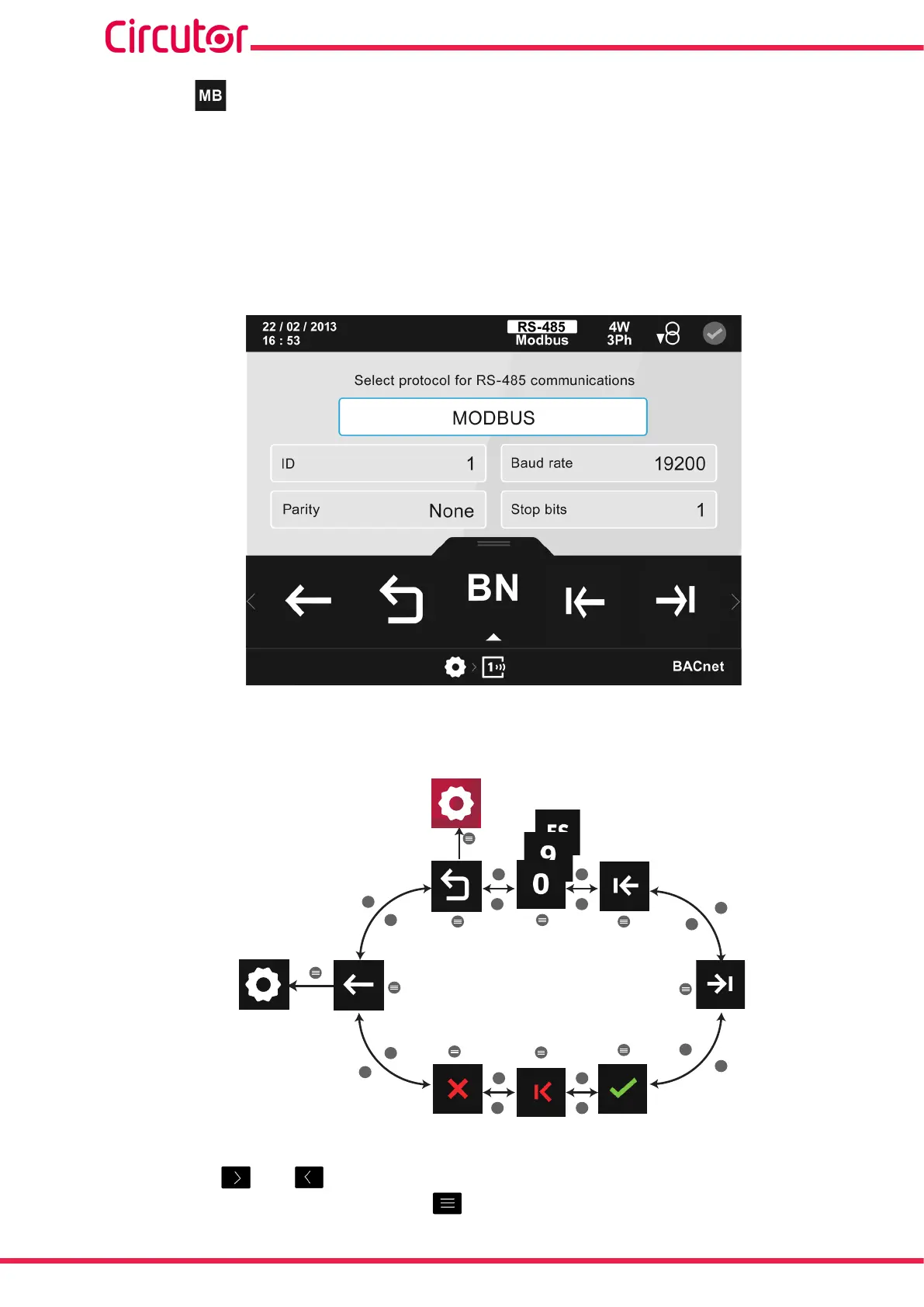

Figure 308: Integrated communications conguration screen (Modbus protocol).
The parameter selected is indicated in white.
>
<
>
>
>
>
>
<
<
<
<
<
1
>
<
>
<
Conguration
values
Previous
Next
Conrm
and save
Delete
parameter
Back
Main
menu
Delete
character
Figure 309: Setup menu: Modbus protocol
Use the keys and to select the different options.
To conrm the selection, press the key .
216
CVM-A1000 - CVM-A1500
Instruction Manual
