7�5�4�2�- Conguration of the TCP parameters manually.
Note: If DHCP is activated, you will not be able to modify the parameters on this screen. This
is indicated by a * next to each value.
The conguration parameters of the TCP communication are, Figure 373:
 IP address.
 Subnet mask.
 Gateway.

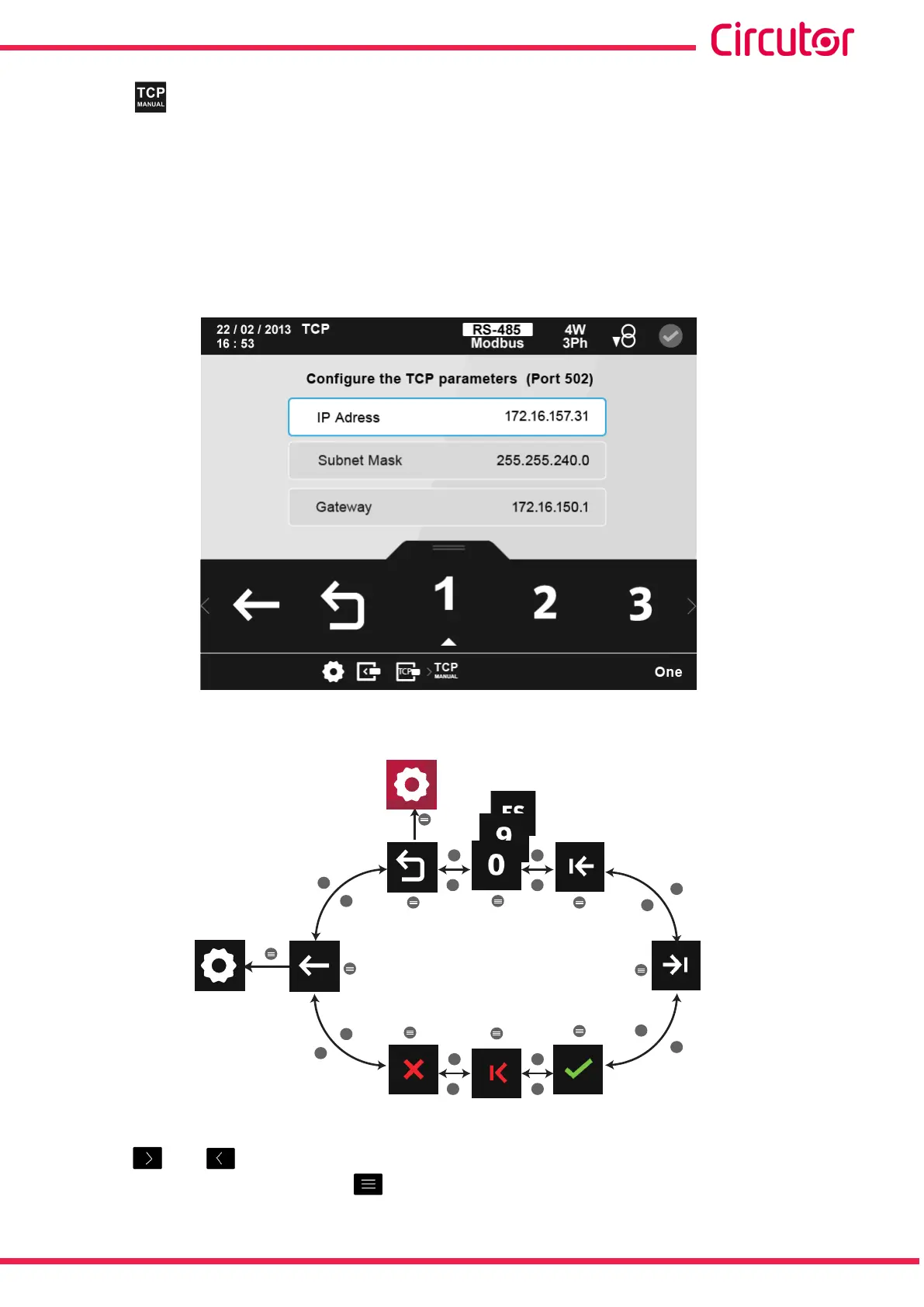

Figure 373: Conguration screen of the Modbus TCP (Bridge) module (TCP manual)
The parameter selected is indicated in white.
>
<
>
>
>
>
>
<
<
<
<
<
1
>
<
>
<
Conguration
values
Previous
Next
Conrm
and save
Delete
parameter
Back
Main
menu
Delete
character
Figure 374: Setup menu : Manual Modbus TCP�
Use the and buttons to select the different options.
To conrm the selection, press the button.
311
Instruction Manual
CVM-A1000 - CVM-A1500
