Quality
parameters

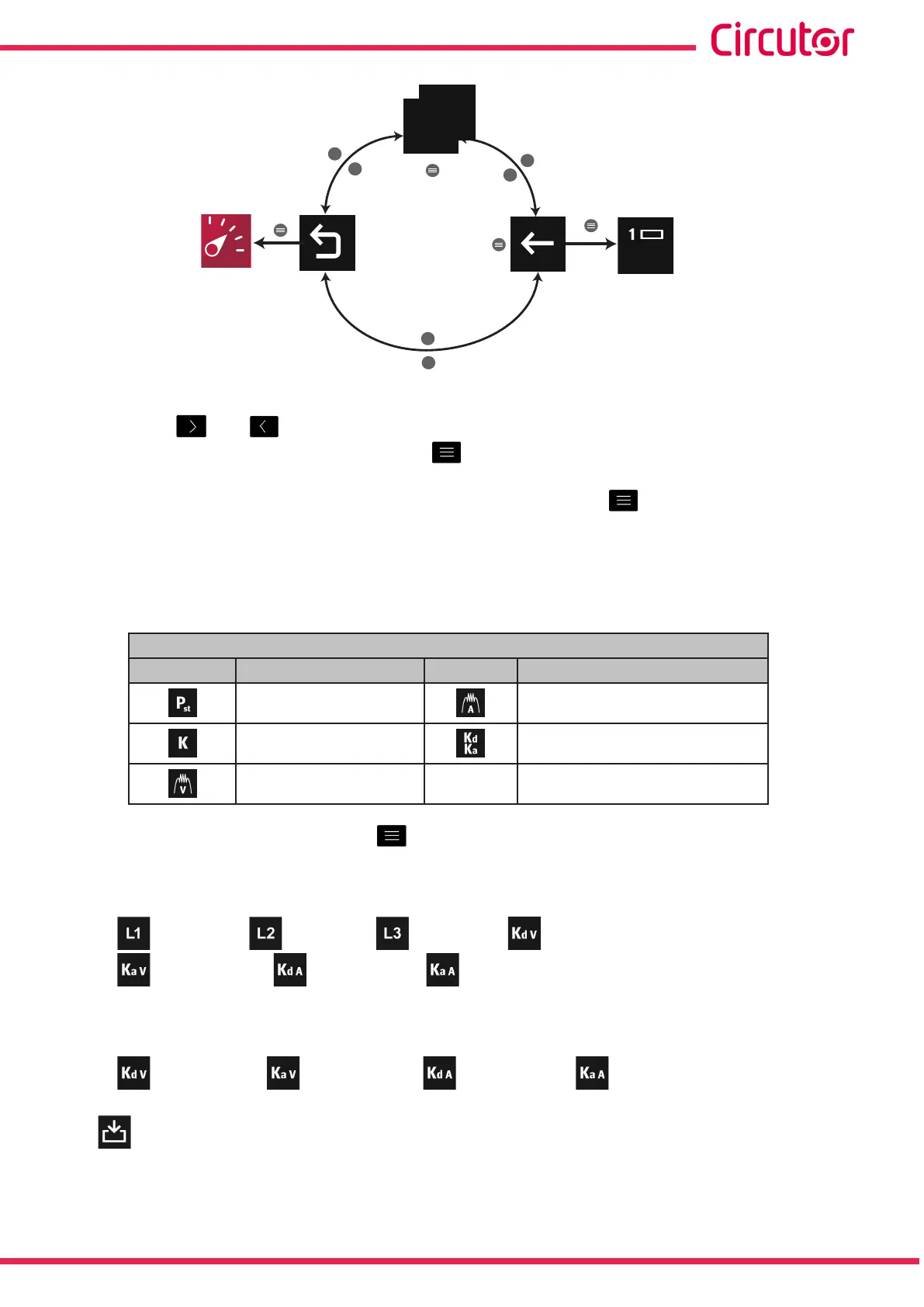

Figure 87: Display menu, select the quality parameter�
Use the keys and to browse the different options.
To access the option selected press the key .
The menu in the lower area disappears after 3 seconds. Press the key to display the lower
area again.
The menu at the bottom displays all the available quality parameters that can be selected
(Table 23).
Table 23: Quality parameters that can be selected on the customisable screens�
Customisable screen
Icon Quality parameter Icon Quality parameter
Pst Flicker A Peak factor
K-factor Unbalance and Asymmetry
V Peak factor
After selecting a parameter, press the key to open the menu at the bottom and select:
● For the Pst Flicker, K-factor, V Peak factor and A Peak factor parameters:
Phase L1, Phase L2, Phase L3, Unbalance of V,
V Asymmetry, A Unbalance, A Asymmetry
● For the Unbalance and Asymmetry parameter:
V Unbalance, V Asymmetry, A Unbalance, A Asymmetry
The option will be displayed after the phase, unbalance or asymmetry have been selected,
which allows you to record the selected elements.
85
Instruction Manual
CVM-A1000 - CVM-A1500
