Catalyst 2950 and Catalyst 2955 Switch Software Configuration Guide
78-11380-10
Chapter 4 Getting Started with CMS
Displaying CMS
The switch home page appears, as shown in Figure 4-4.

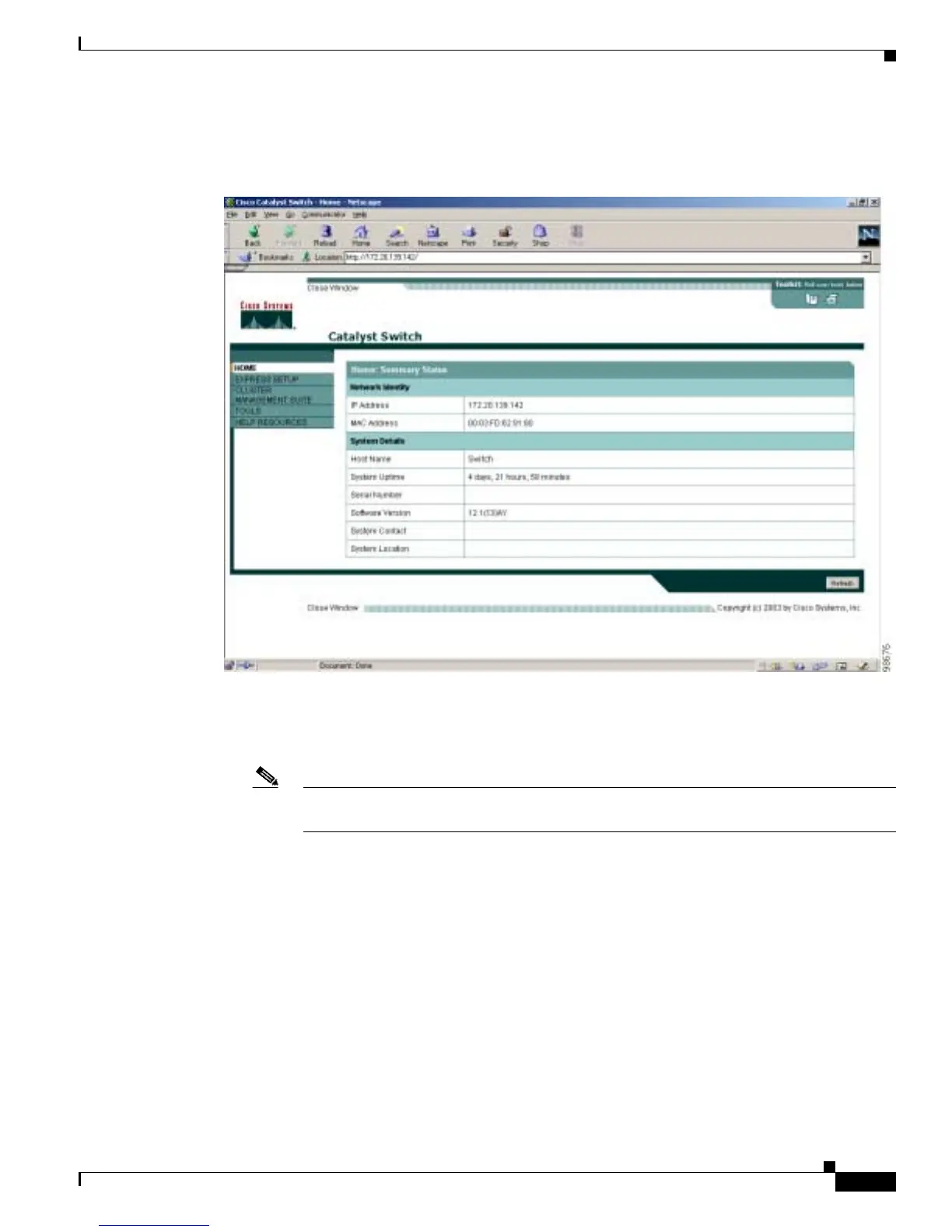

Figure 4-4 Switch Home Page
The switch home page has these tabs:
• Express Setup—Opens the Express Setup page
Note You can use Express Setup to assign an IP address to an unconfigured switch. For more
information, refer to the hardware installation guide.
• Cluster Management Suite—Launches CMS
• Tools—Accesses diagnostic and monitoring tools, such as Telnet, Extended Ping, and the show
interfaces privileged
EXEC command
• Help Resources—Provides links to the Cisco website, technical documentation, and the Cisco
Technical Assistance Center (TAC)
Step 3 Click Cluster Management Suite to launch the CMS interface. The CMS Startup Report runs and
verifies that your PC or workstation can correctly run CMS.

Cisco 2950 - Catalyst Switch Specifications

General

Forwarding Rate	6.6 Mpps
Jumbo Frame Support	No
Weight	8.8 lbs (4 kg)
RAM	16 MB
Flash Memory	8 MB
Manageable	Yes
Form Factor	Rack-mountable
Ports	24 Ethernet 10/100 ports
Uplink Ports	2 x 10/100/1000Base-T ports
VLANs	250
MAC Address Table Size	8000
Power Supply	100-240 VAC, 50-60 Hz
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Operating Temperature	0 to 40 °C (32 to 104 °F)
Storage Temperature	-25 to 70 °C (-13 to 158 °F)
Operating Humidity	10% to 85% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
