Cisco 2950 - Catalyst Switch User Manual

4-12
Catalyst 2950 and Catalyst 2955 Switch Software Configuration Guide
78-11380-10
Chapter 4 Getting Started with CMS
Displaying CMS
If you are running an unsupported operating system, web browser, CMS plug-in or Java plug-in, or if the
plug-in is not enabled, the CMS Startup Report page appears, as shown in Figure 4-5.

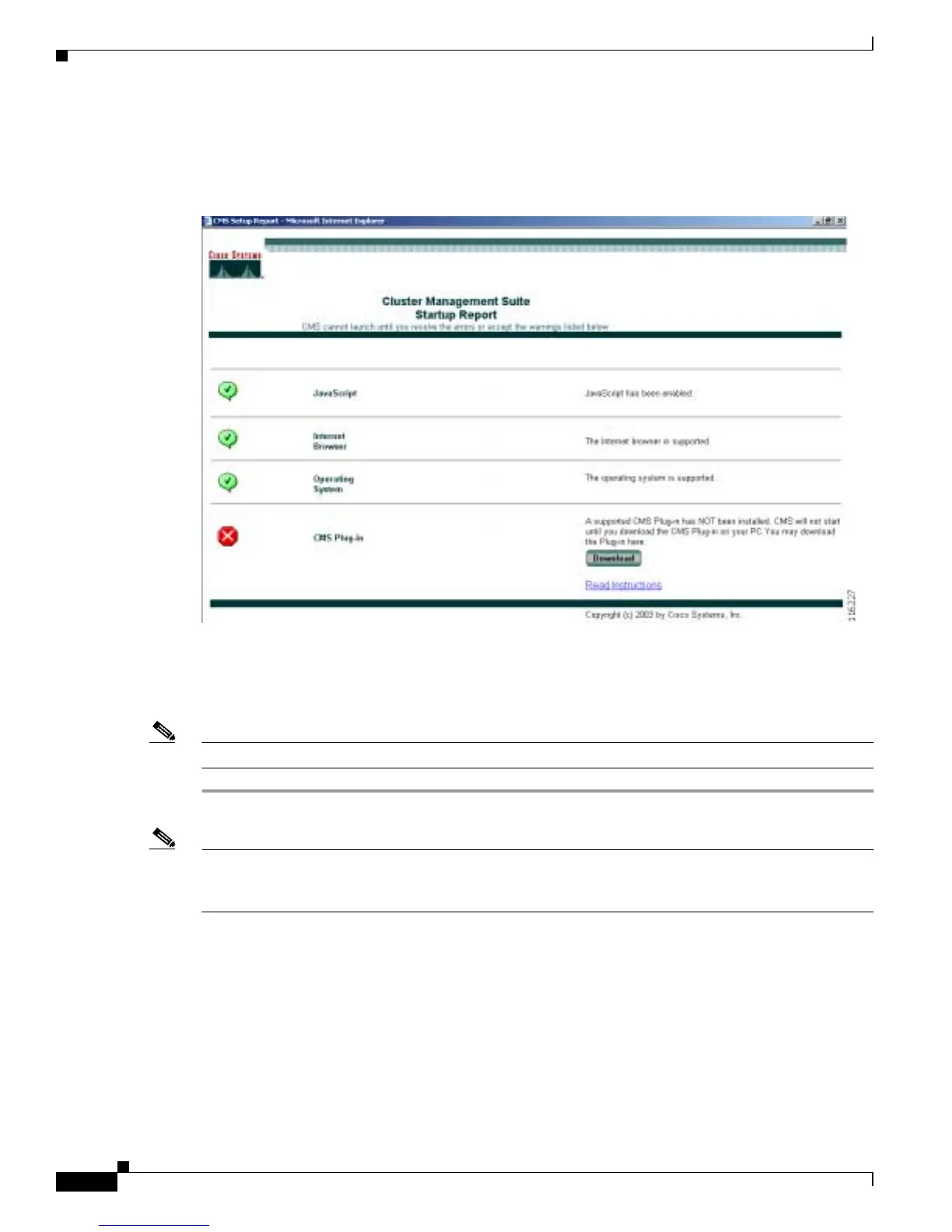

Figure 4-5 CMS Startup Report
The CMS Startup Report has links that instruct you how to correctly configure your PC or workstation.
If the CMS Startup Report appears, click the links, and follow the instructions to configure your PC or
workstation.
Note If your PC or workstation is correctly configured for CMS, you do not see the CMS Startup Report.
Note If you are running Windows and need to both upgrade your web browser and install the CMS plug-in,
you must upgrade your browser first. If you install the CMS plug-in and then upgrade your browser, the
plug-in is not registered with the new browser.
When your PC or workstation is correctly configured, CMS launches.

Cisco 2950 - Catalyst Switch Specifications

General

Forwarding Rate	6.6 Mpps
Jumbo Frame Support	No
Weight	8.8 lbs (4 kg)
RAM	16 MB
Flash Memory	8 MB
Manageable	Yes
Form Factor	Rack-mountable
Ports	24 Ethernet 10/100 ports
Uplink Ports	2 x 10/100/1000Base-T ports
VLANs	250
MAC Address Table Size	8000
Power Supply	100-240 VAC, 50-60 Hz
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Operating Temperature	0 to 40 °C (32 to 104 °F)
Storage Temperature	-25 to 70 °C (-13 to 158 °F)
Operating Humidity	10% to 85% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)
