Chapter 1 An Overview of the Cisco IP Phone
Understanding the Cisco IP Phone Models 7960 and 7940
1-2
Cisco IP Phone Administration Guide for Cisco CallManager 3.2, Cisco IP Phones 7960/7940/7910
78-10453-04
Understanding the Cisco IP Phone Models
7960 and 7940
The Cisco IP Phone models 7960 and 7940 are full-featured, multiline telephones
that provide voice communication over an IP network. These phones function as
managerial-level office telephones, replacing traditional analog telephones in an IP
telephony network.
The Cisco IP Phone model 7960 and 7940 differ only in the number of available
line or speed dial buttons. The Cisco IP Phone 7940 has two lines, and the 7960
has six lines.
The main components of both models are illustrated in and Figure 1-1 and
Figure 1-2, and defined in the table that follows.

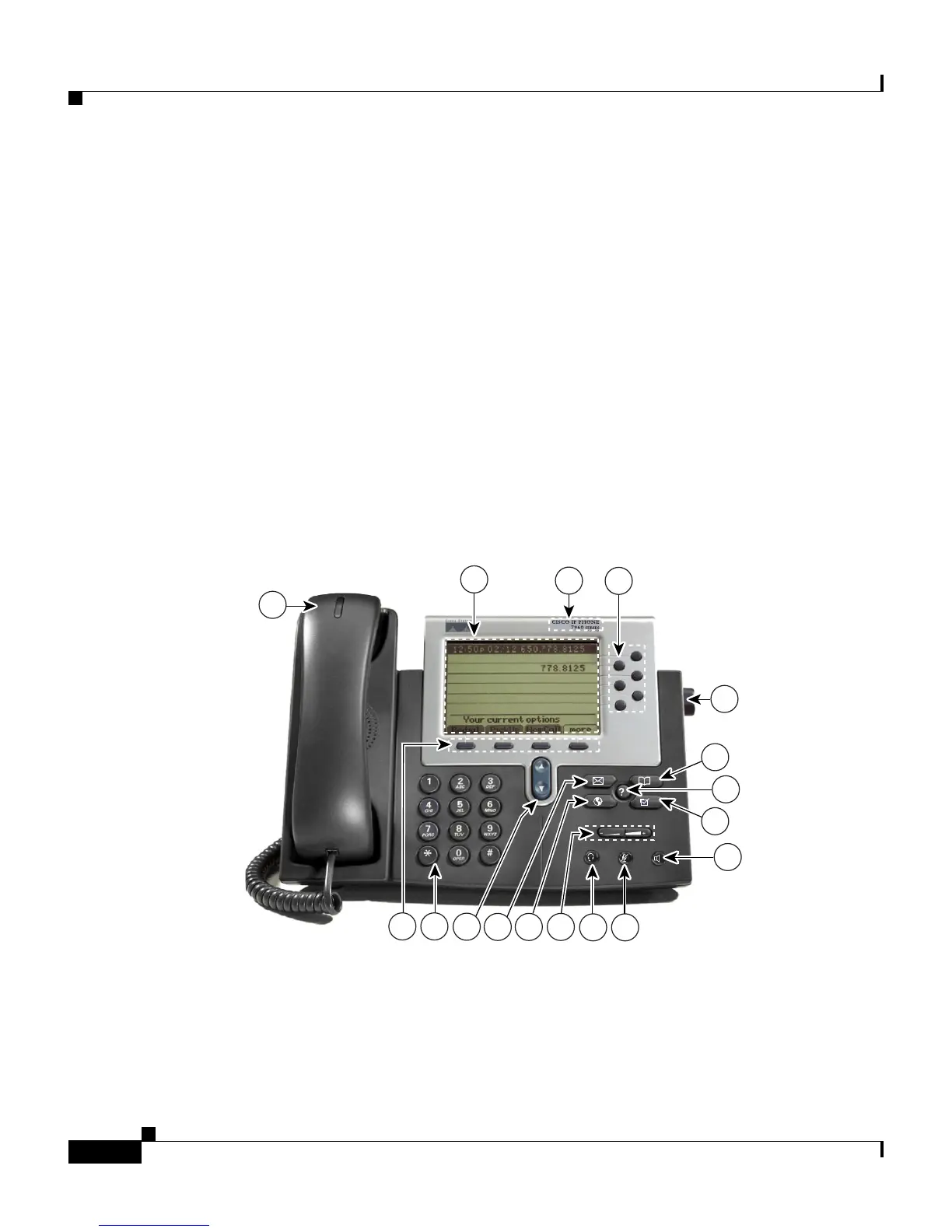

Figure 1-1 Cisco IP Phone 7960
1
4
5
1617
15
68561
3
9
7
6
2
1011
121314
8
