Chapter 4 Adding the Cisco IP Phone 7914 Expansion Module
Installing the 7914 Expansion Module
4-6
Cisco IP Phone Administration Guide for Cisco CallManager 3.2, Cisco IP Phones 7960/7940/7910
78-10453-04
Figure 4-2 Foot Pins on the Cisco IP Phone 7960
Connecting the Support Bar to the Cisco IP Phone 7960
To connect the support bar to the Cisco IP Phone 7960, follow these steps.
Procedure
Step 1 Position the support bar on the back of the IP Phone so that it fits flush with the
phone.

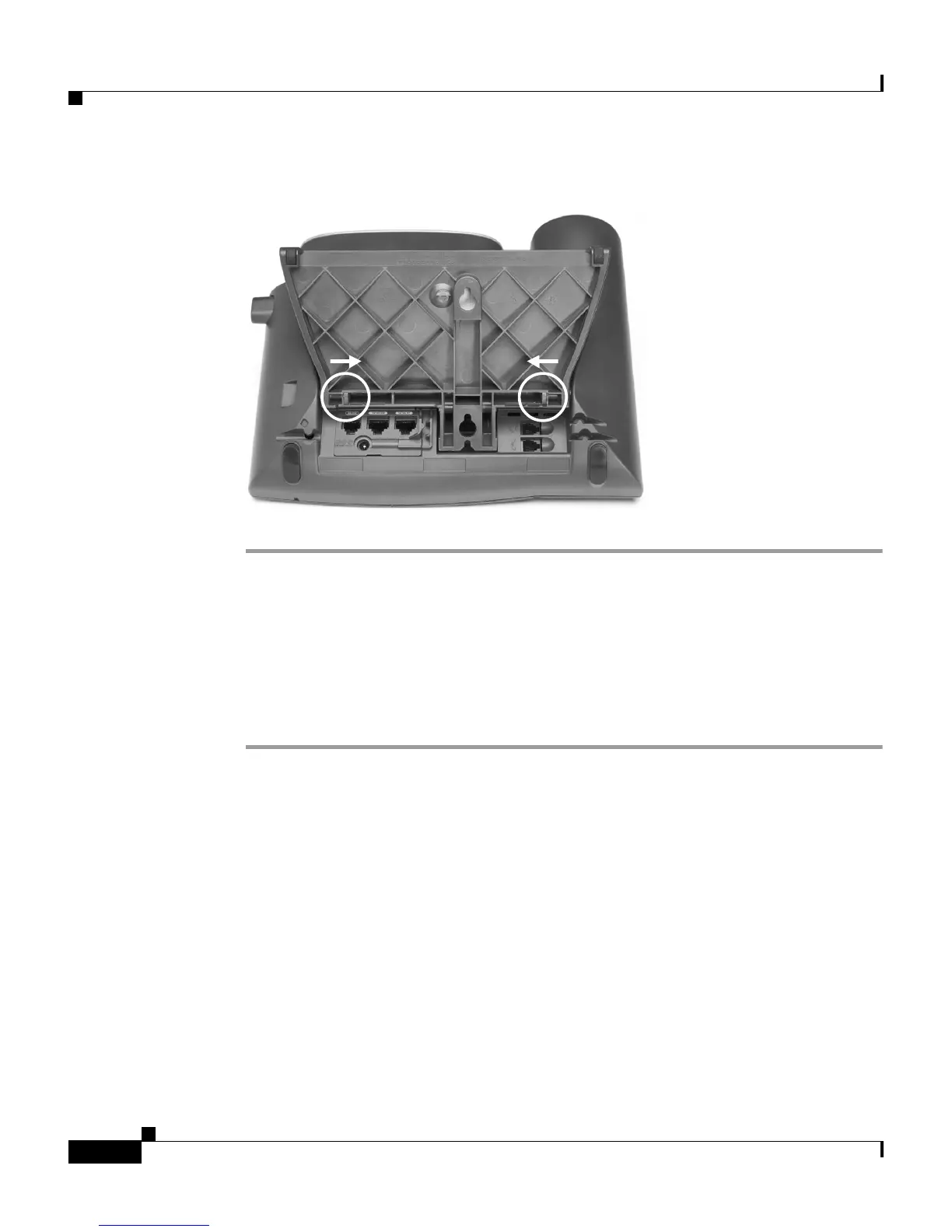

Step 2 Locate the two connector pins, as illustrated in Figure 4-3.
Step 3 Using a flat head screwdriver, carefully push each of the connector pins so that
the support bar is firmly fastened to the IP Phone.
63147

Cisco 7960 Specifications

General

Codecs	G.711, G.729a
Protocol Support	SCCP, SIP
Ethernet Ports	2 x 10/100 Ethernet ports
Power Options	Power over Ethernet (PoE), AC adapter
Audio	Full-duplex speakerphone
Buttons	6 line buttons
Weight	3.5 pounds
