10-37
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 10 Cisco ASR 1002-X Router Overview and Installation
Cisco ASR 1002-X Router Power Supplies
The ground (GND) lead is always installed first and removed last.
The +24 VDC power supply uses a spring-loaded terminal block; therefore, have the recommended
screwdriver size available.
Review the diagrams to see how the wire is stripped and how the screwdriver is inserted at an angle
into the terminal block.
Have the following equipment available to install and remove the +24 VDC power supply:
Phoenix Contact 3.5 mm flat-blade screwdriver or equivalent
Wire-stripping tool for stripping 8-gauge wire
Figure 10-25 shows the +24 VDC power supply for the Cisco ASR 1002-X Router.

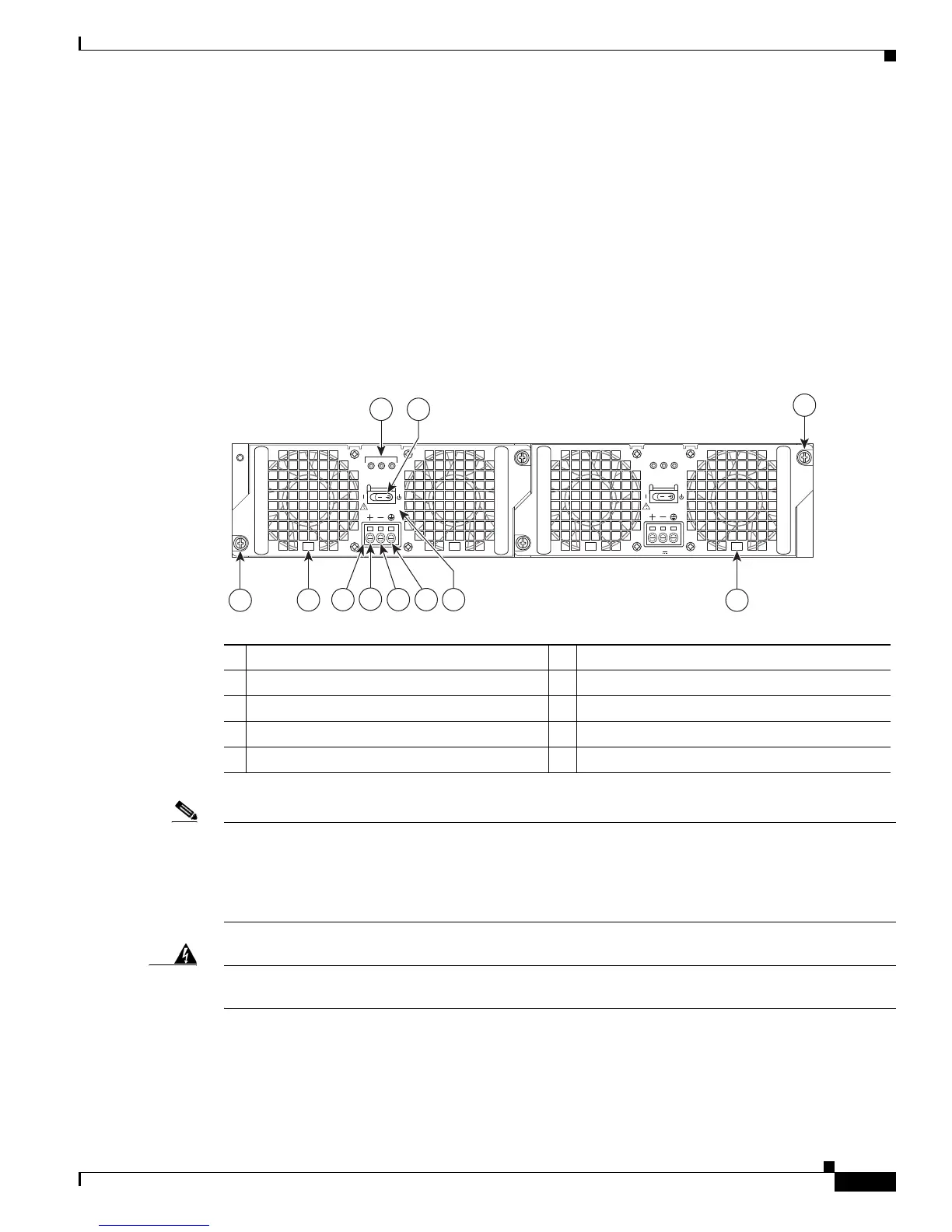

Figure 10-25 +24 VDC Power Supply for the Cisco ASR 1002-X Router Components
Note Color coding of the +24 VDC input power supply leads depends on the color coding of the +24 VDC
power source at your site. Typically, green or green/yellow is used for ground. Ensure the lead color
coding you choose for the +24 VDC input power supply matches the lead color coding used at the +24
VDC power source. The most commonly used wire color-coding is red for the positive (+) lead and black
for the negative (–) lead.
Warning
When you install the unit, the ground connection must always be made first and disconnected last.
Statement 1046
1 +24 VDC terminal block 6 Standby/On switch
2 Positive (+) lead 7 Captive fastener
3 Negative (-) lead 8 Power supply tabs
4 Ground (GND) lead 9 +27 VDC INPUT label
5 Power supply LEDs
OUTPUT INPUT
FAI L
OK OK
FAN
+27V 32A
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
+27V DC INPUT
OUTPUT INPUT
FAI L
OK OK
FAN
+27V 32A
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
+27V DC INPUT
2
31
5 6
0
1
7
4
7
8
253164
8
9
