10-43
Cisco ASR 1000 Series Aggregation Services Routers Hardware Installation Guide
OL-13208-11
Chapter 10 Cisco ASR 1002-X Router Overview and Installation
Connecting a Terminal to the Console Port

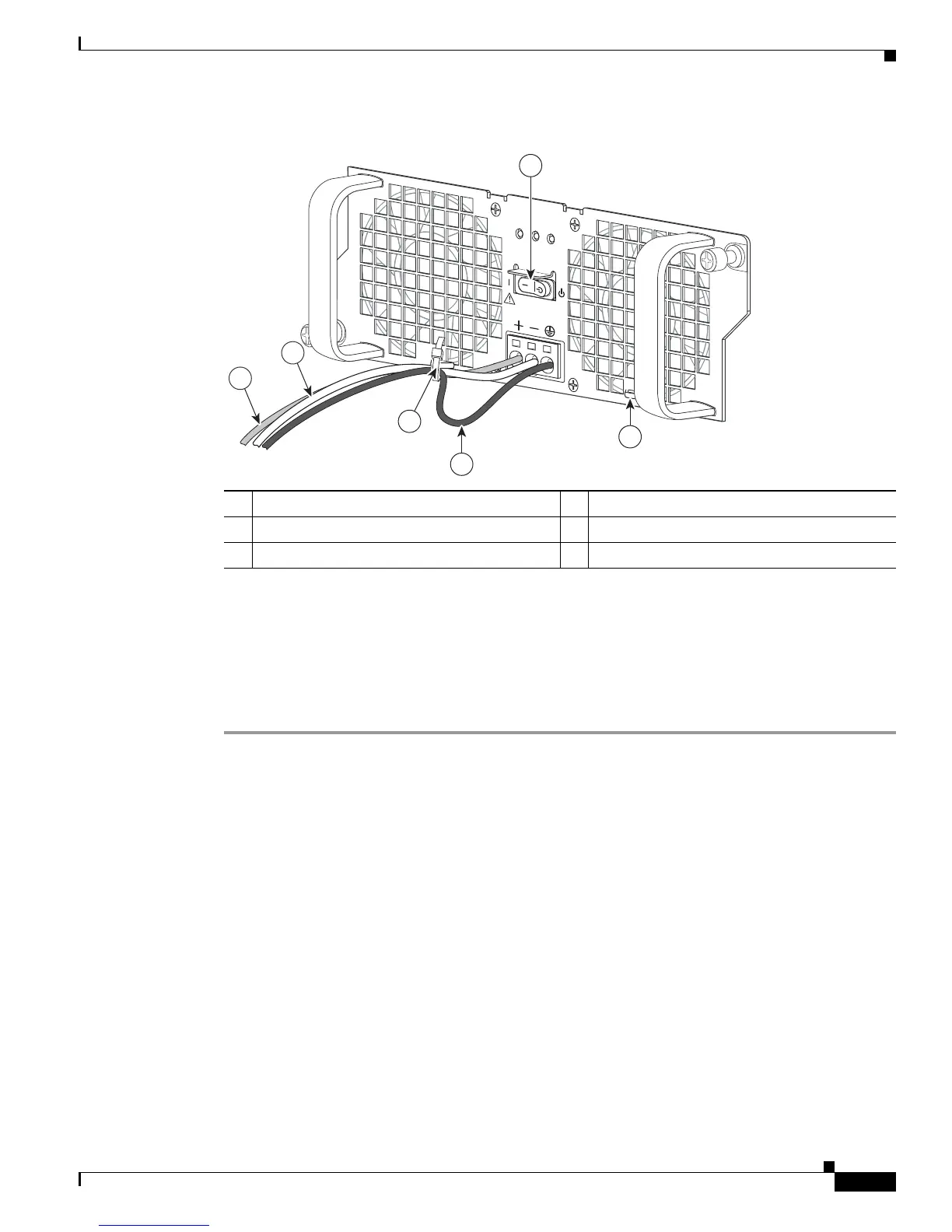

Figure 10-32 Cisco +24 VDC Power Supply Terminal Block Ground Lead Service Loop
Step 10
After tightening the receptacle screw for the ground, and leaving the extra service loop in the ground
lead, use a cable tie to secure the three leads to the power supply faceplate tie-wrap tab, as shown in
Figure 10-32, item 5.
Step 11 Turn on the branch source breaker.
Step 12 Move the power supply Standby switch to the On (|) position. The power supply LEDs light when power
is supplied to the router.
This completes the steps for installing the +24 VDC power supply in the Cisco ASR 1002-X Router.
Connecting a Terminal to the Console Port
The integrated route processor has an asynchronous serial (EIA/TIA-232) RJ-45 console port labeled
CON on its front panel. You can connect this port to most types of video terminals using the console
cable kit that is included with your Cisco ASR 1002-X Router. The console cable kit contains:
One RJ-45-to-RJ-45 crossover cable
One RJ-45-to-DB-9 (female) adapter
A crossover cable reverses pin connections from one end to the other. In other words, it connects pin 1
(at one end) to pin 8 (at the other end), pin 2 to pin 7, pin 3 to pin 6, and so on. You can identify a
crossover cable by comparing the two modular ends of the cable. Hold the cable ends in your hand,
side-by-side, with the tabs at the back. Ensure that the wire connected to the outside (left) pin of the left
plug (pin 1) is the same color as the wire connected to the outside (right) pin of the right plug (pin 8).
Use the following procedure to connect a video terminal to the console port on a route processor.
1 Ground lead wire with service loop 4 +24 VDC power supply Standby switch
2 Negative lead wire 5 Power supply tabs
3 Positive lead wire
OUTPUT INPUT
FAI L
OK OK
FAN
This unit might have more than
one power supply connection.
All connections must be removed
to de-energize the unit.
+27V DC INPUT
+27V 32A
253171
3
1
4
2
5
5
